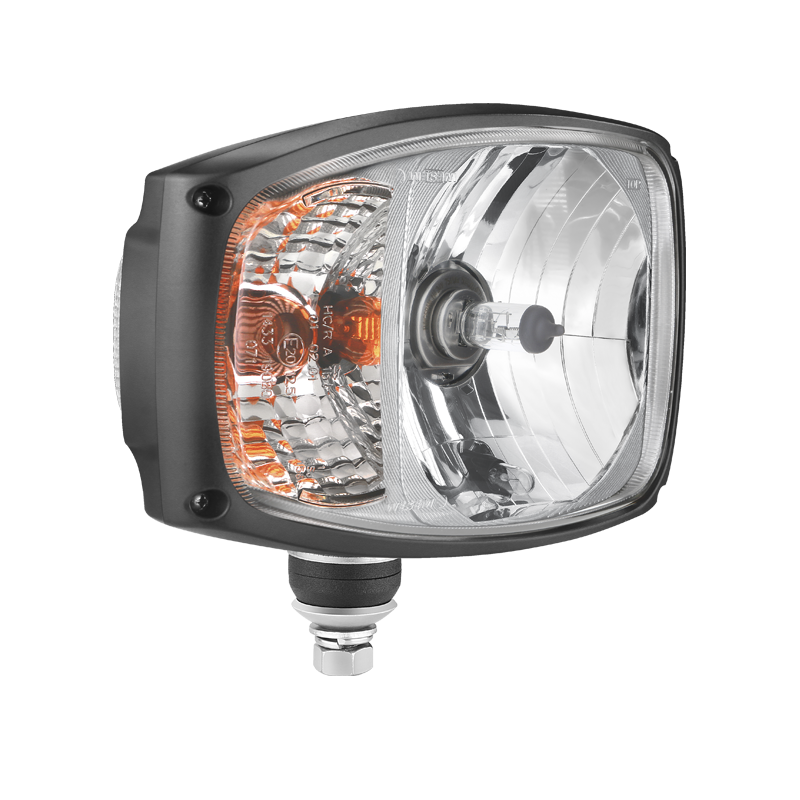

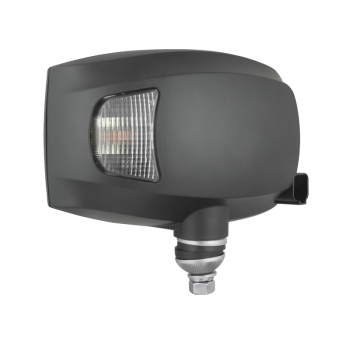

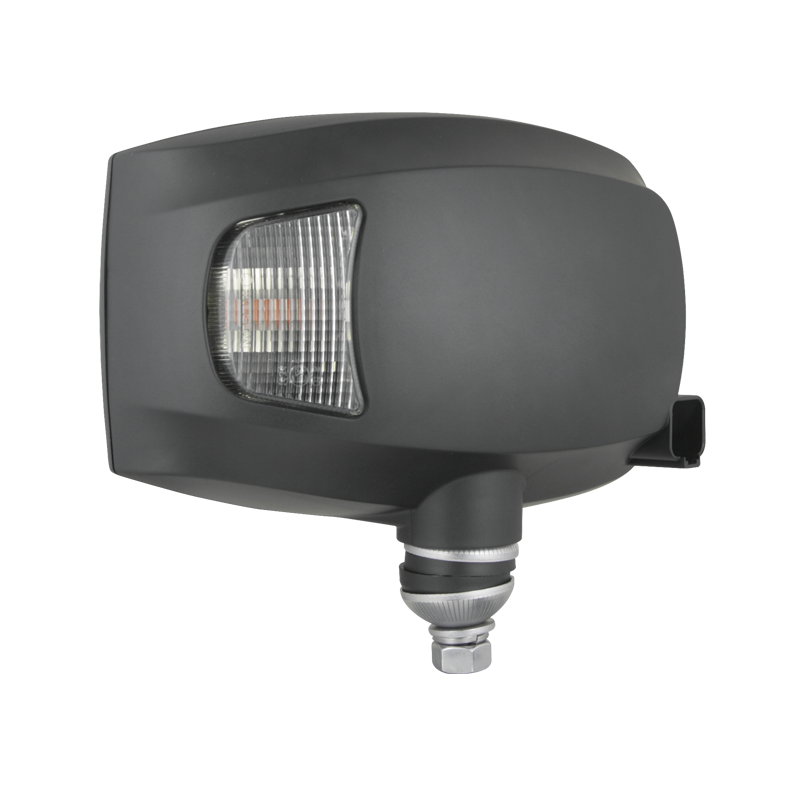

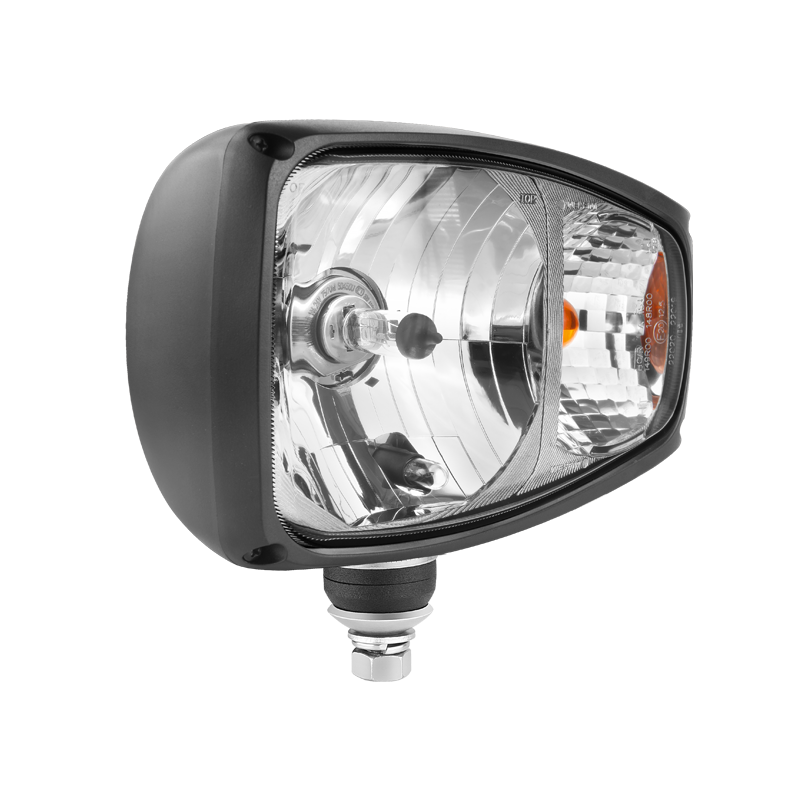

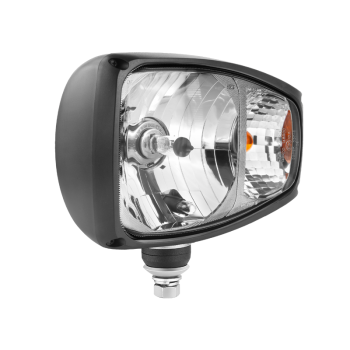

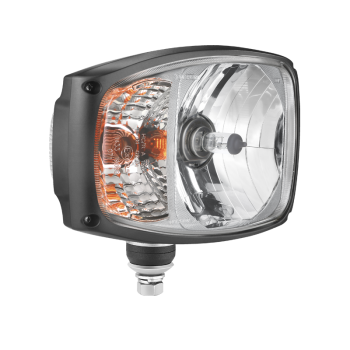

RGV1D-FF headlamps with direction indicator LHT

RGV1D-FF headlamps with direction indicator LHT

RGV1D-FF headlamps with direction indicator LHT

RGV1D-FF headlamps with direction indicator LHT

RGV1D-FF headlamps with direction indicator LHT

Dimensions	225x150x120
Light functions	passing, driving, position, direction indicator
Traffic	left-hand
Rated power	75/70W, 5W, 21W
Light source	H4, W5W, PY21
Supply voltage	12V-24V DC
IP rating	IP66
Homologation	E20
Reference mark	12.5

Catalogue page

Product versions

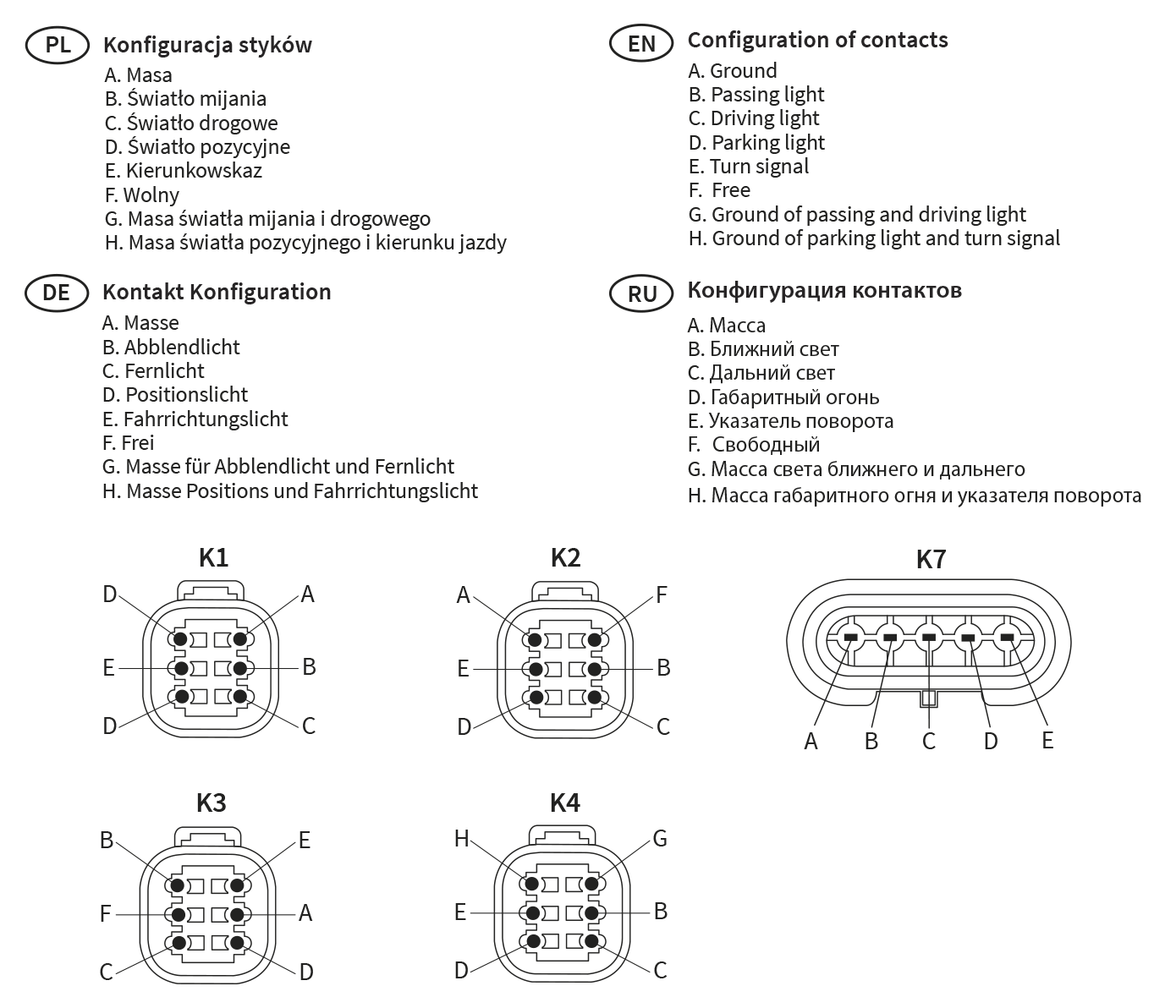

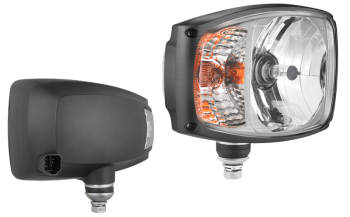

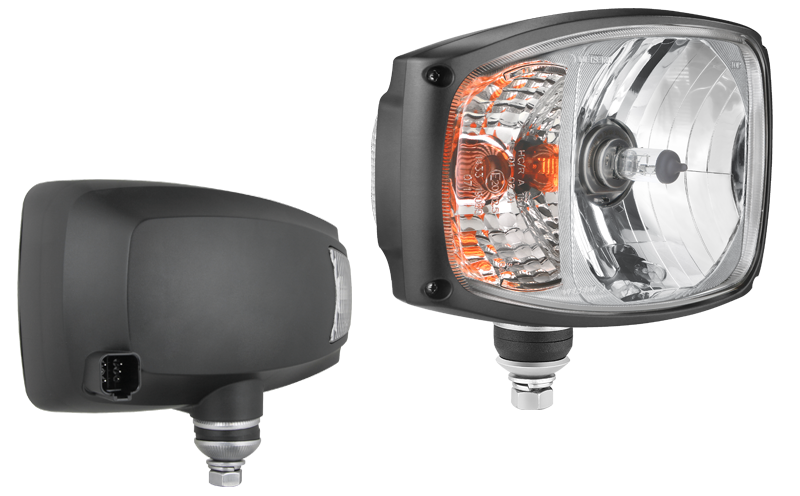

Headlamp, H4 type, with DT04-6P connector - right

Headlamp, H4 type, with DT04-6P connector - right

Headlamp, H4 type, with DT04-6P connector - right

Compare	Part number	Equipment		Quantity
	RGV1D.55210	K1 - without bulbs housing-bottom mount Part number: RGV1D.55210 Quantity: carton box/1		carton box/1
	RGV1D.55211	K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-bottom mount Part number: RGV1D.55211 Quantity: carton box/1		carton box/1
	RGV1D.55212	K1 - bulb H4 24V, bulb W5W, bulb PY21W 24V, housing-bottom mount Part number: RGV1D.55212 Quantity: carton box/1		carton box/1
	RGV1D.55213	K4 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-bottom mount Part number: RGV1D.55213 Quantity: carton box/1		carton box/1

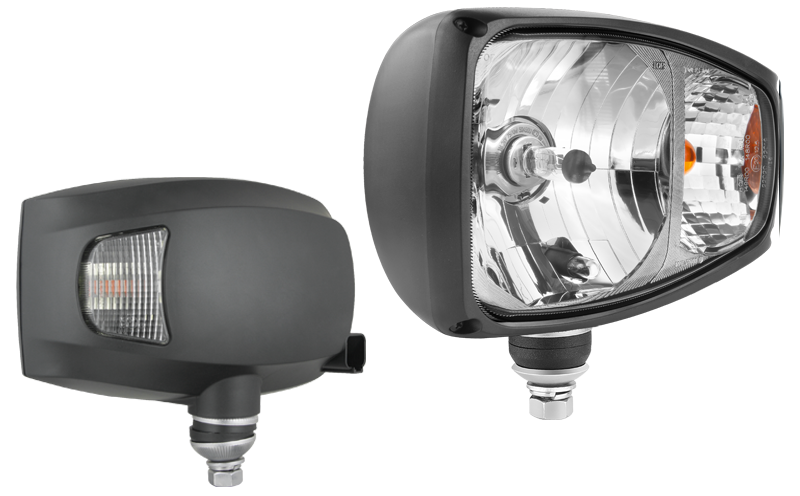

Headlamp, H4 type, with DT04-6P connector - left

Headlamp, H4 type, with DT04-6P connector - left

Headlamp, H4 type, with DT04-6P connector - left

Compare	Part number	Equipment		Quantity
	RGV1D.55200	K1 - without bulbs housing-bottom mount Part number: RGV1D.55200 Quantity: carton box/1		carton box/1
	RGV1D.55201	K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-bottom mount Part number: RGV1D.55201 Quantity: carton box/1		carton box/1
	RGV1D.55202	K1 - bulb H4 24V, bulb W5W, bulb PY21W 24V, housing-bottom mount Part number: RGV1D.55202 Quantity: carton box/1		carton box/1
	RGV1D.55203	K4 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-bottom mount Part number: RGV1D.55203 Quantity: carton box/1		carton box/1

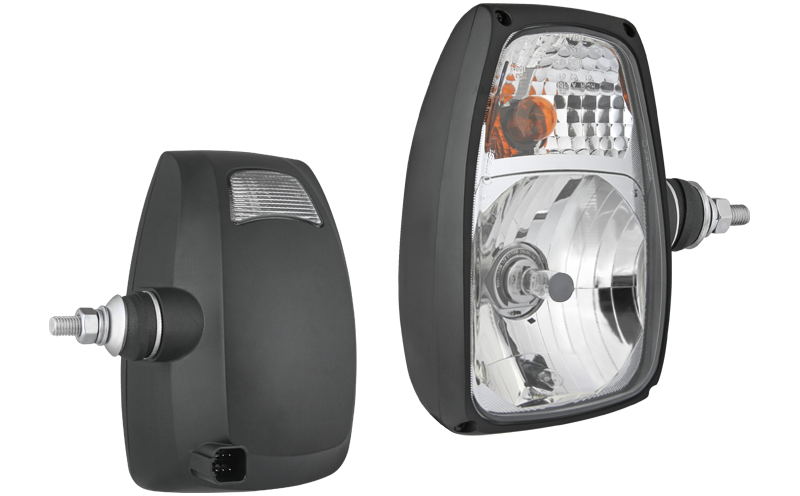

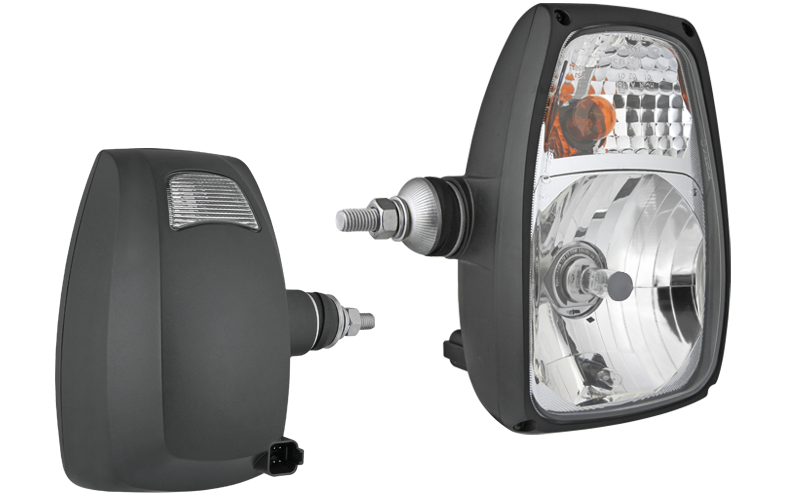

Headlamp, H4 type, with DT04-6P connector - right

Headlamp, H4 type, with DT04-6P connector - right

Headlamp, H4 type, with DT04-6P connector - right

Compare	Part number	Equipment		Quantity
	RGV1D.55231	K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-side mount Part number: RGV1D.55231 Quantity: carton box/1		carton box/1

Headlamp, H4 type, with DT04-6P connector - left

Headlamp, H4 type, with DT04-6P connector - left

Headlamp, H4 type, with DT04-6P connector - left

Compare	Part number	Equipment		Quantity
	RGV1D.55230	K1 - bulb H4 12V, bulb W5W, bulb PY21W 12V, housing-side mount Part number: RGV1D.55230 Quantity: carton box/1		carton box/1
