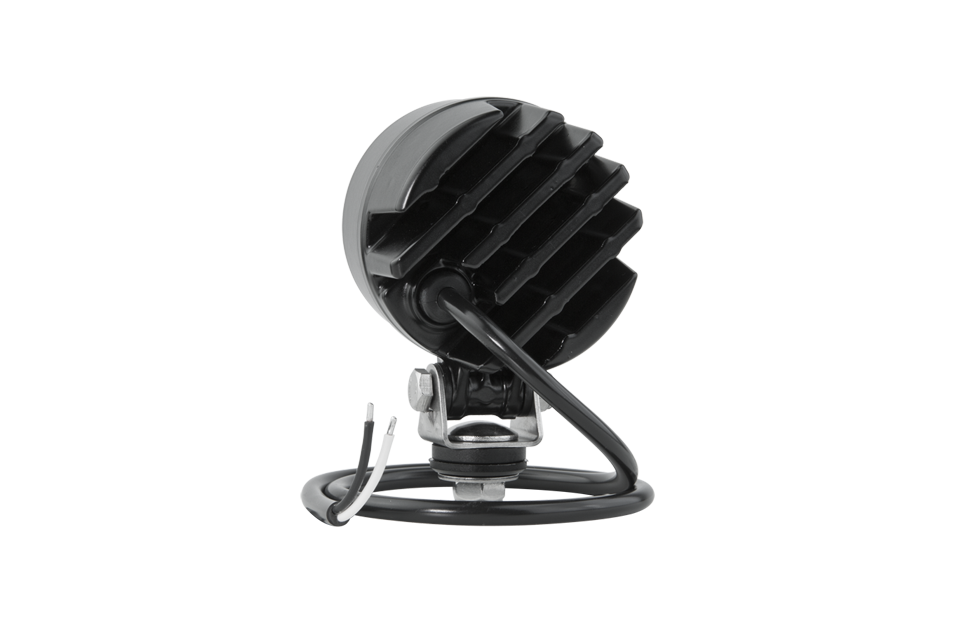

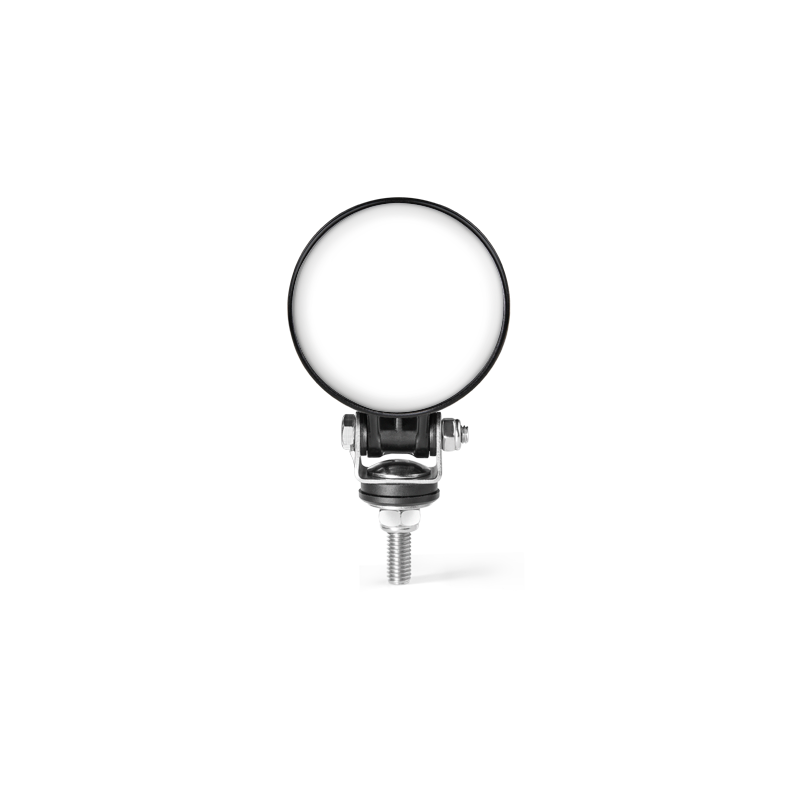

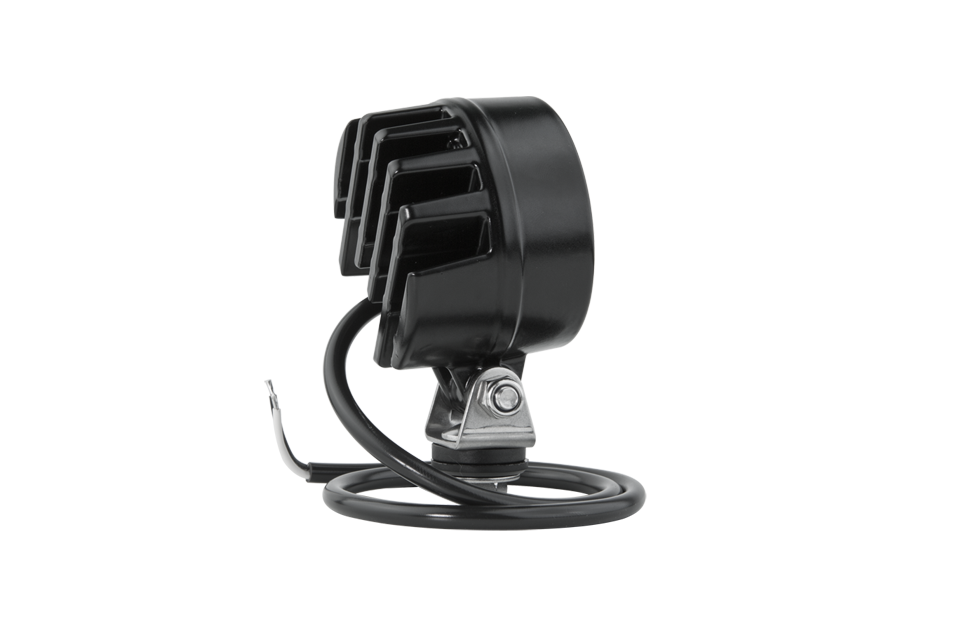

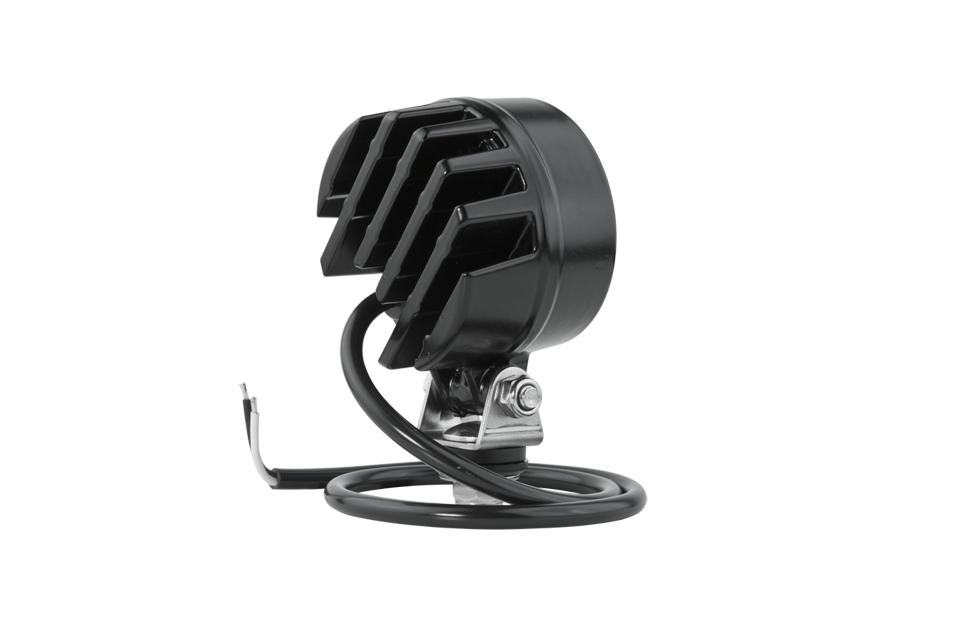

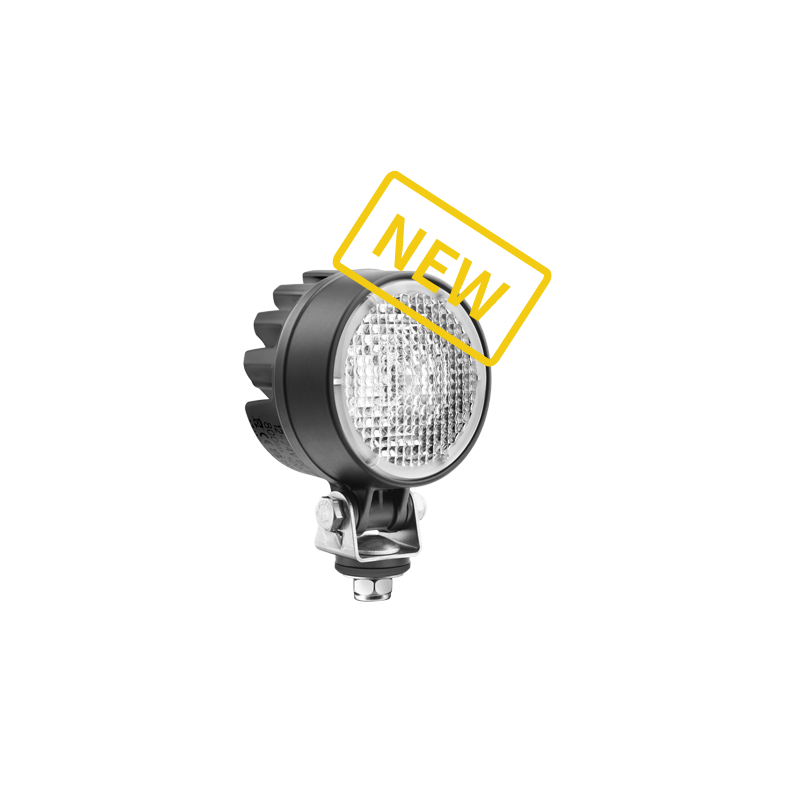

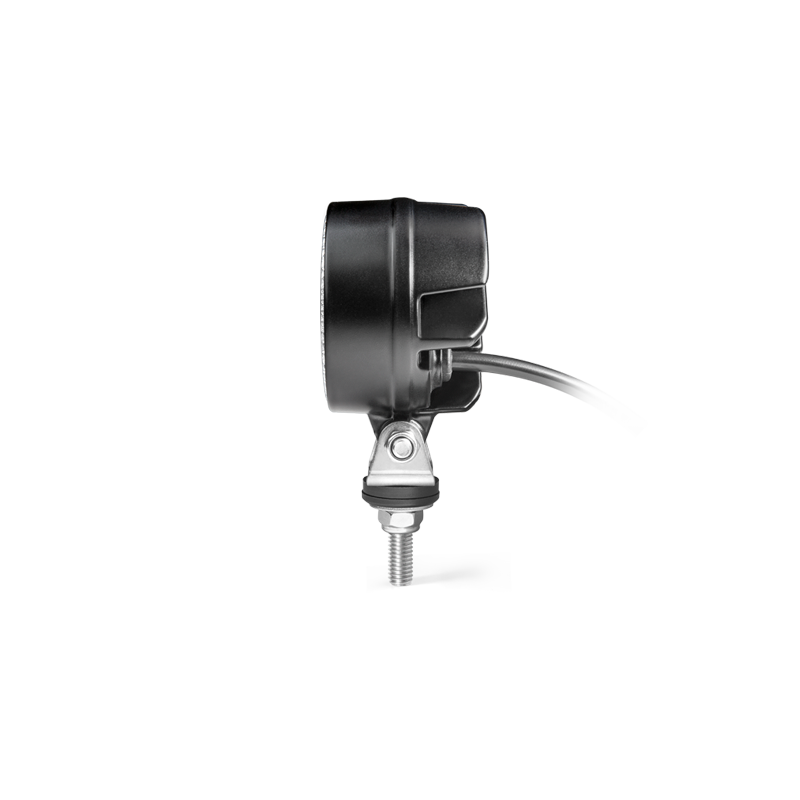

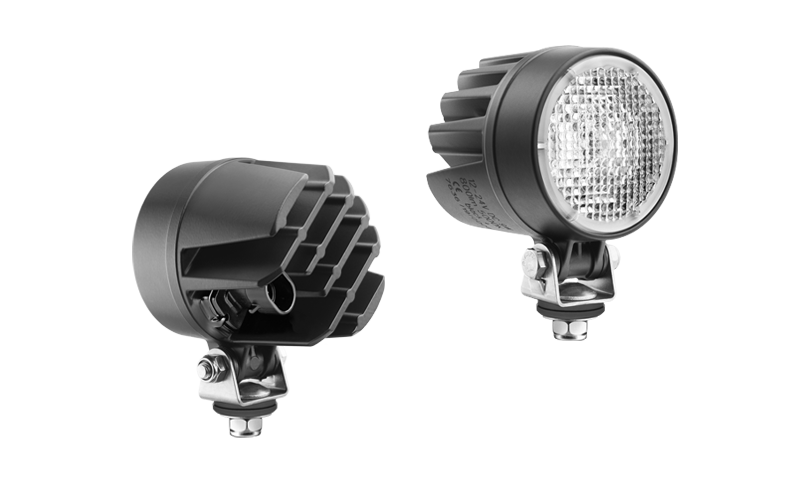

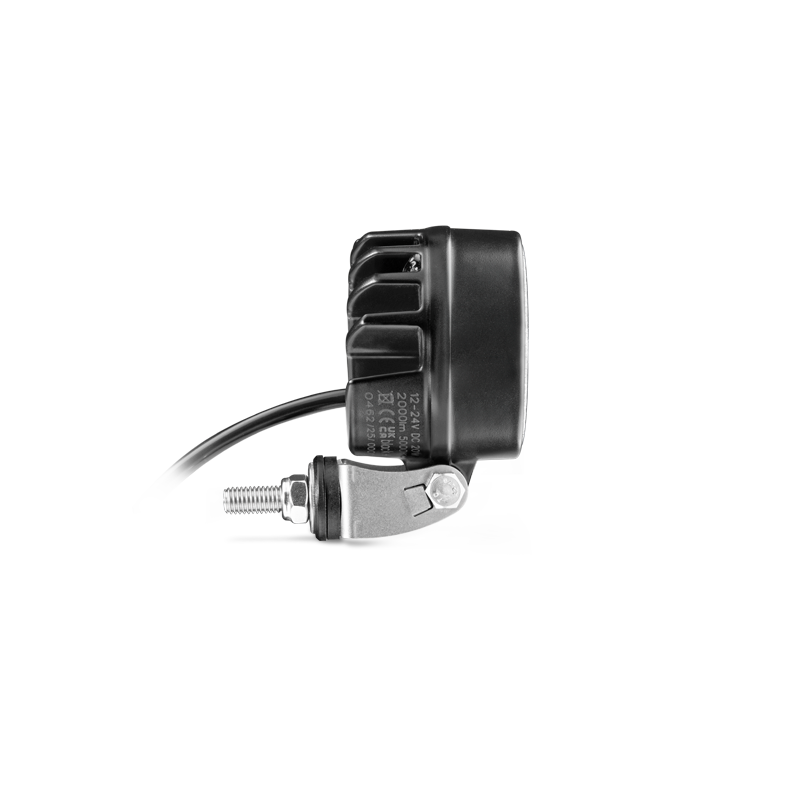

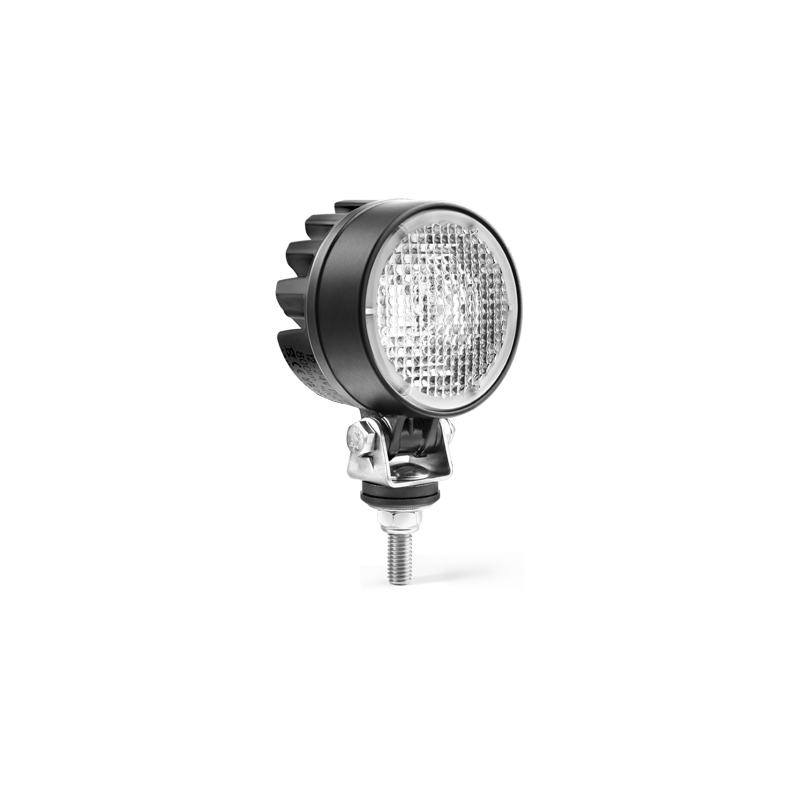

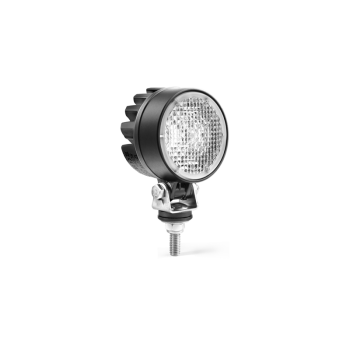

CRC4 work lamps LED

CRC4 work lamps LED

CRC4 work lamps LED

CRC4 work lamps LED

CRC4 work lamps LED

Dimensions	Ø66x49, Ø66x69
Rated power	20W, 13W
Light source	1 x LED, 3 x LED
Supply voltage	12V-24V DC
Luminous flux	2000 lm, 1300 lm
Beam angle	43° x 34°, 100°
Beam type	wide, diffused
IP rating	IP67, IP69K

Catalogue page

Product versions

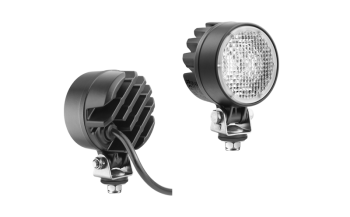

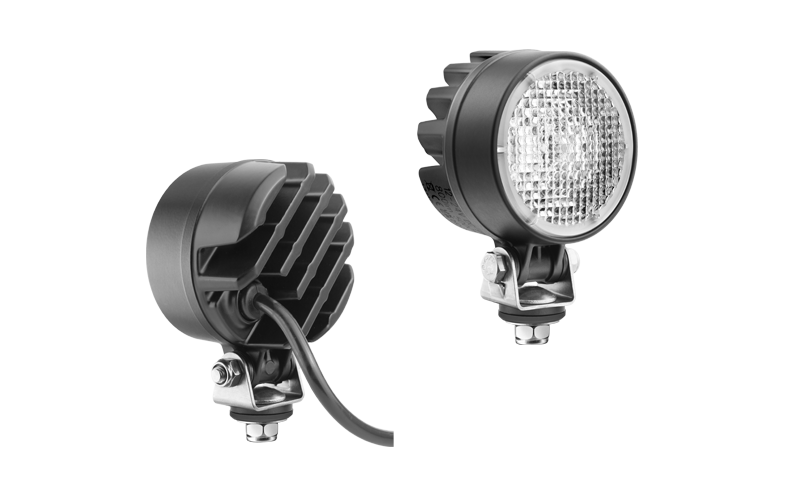

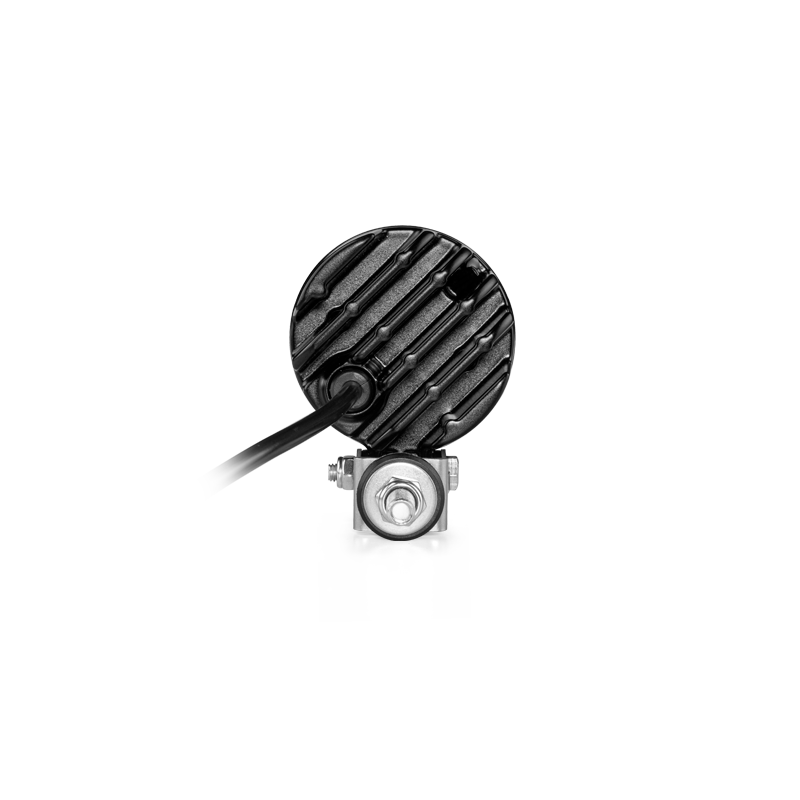

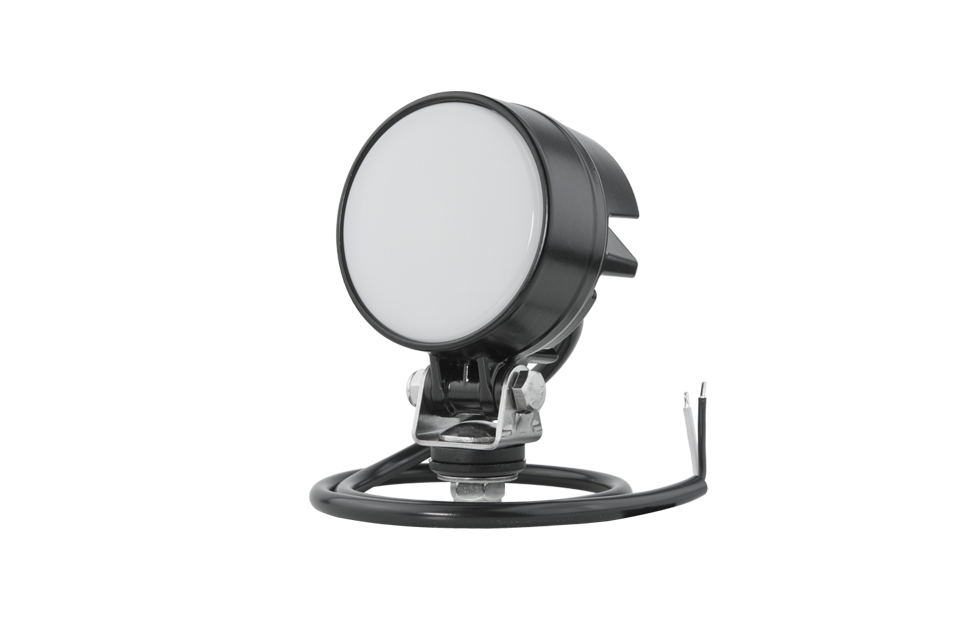

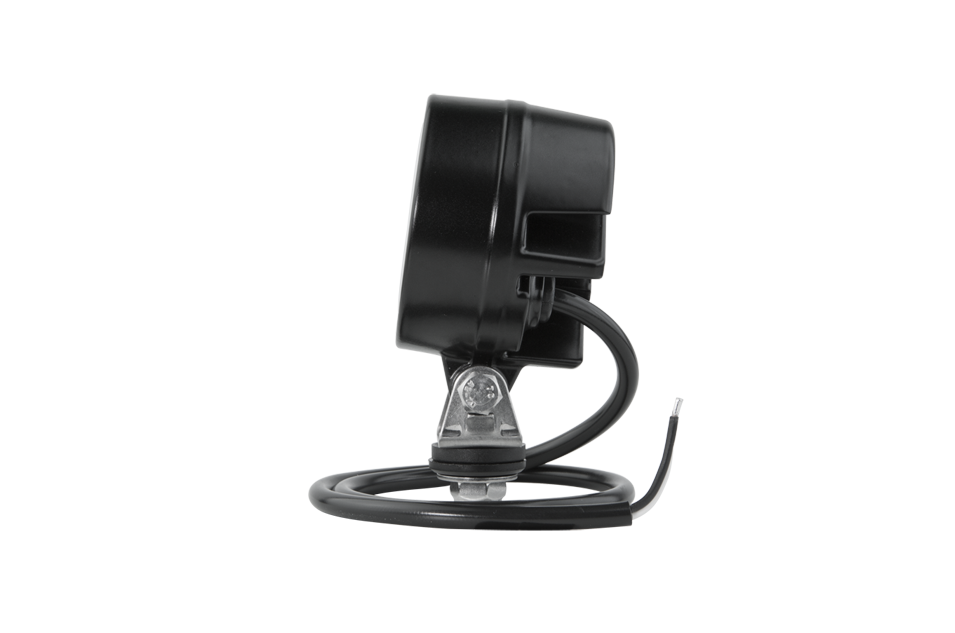

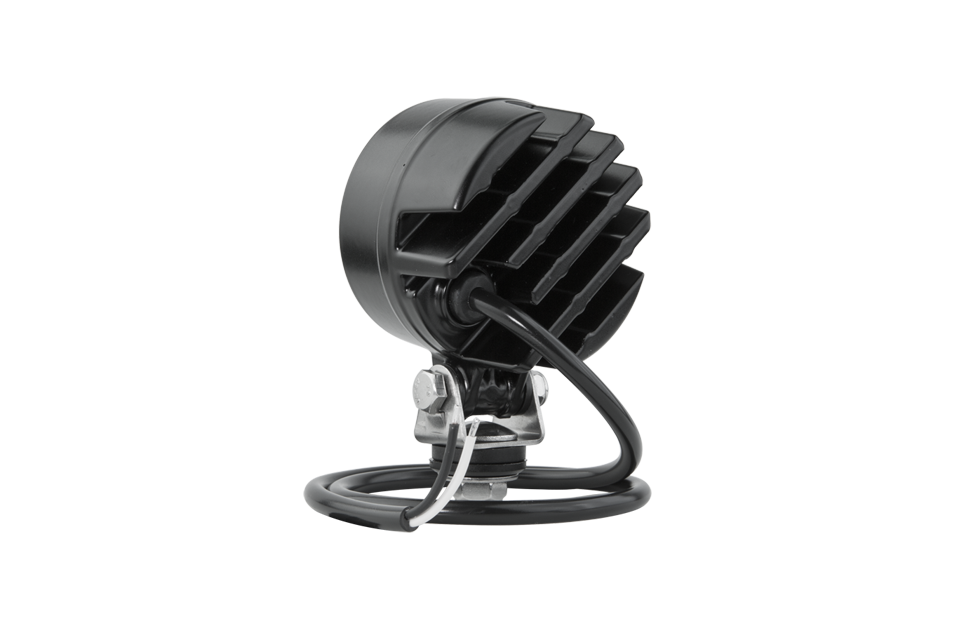

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC4F.59400	2000lm - LED module 12V-24V, cable 0,5 m, short housing Part number: CRC4F.59400 Quantity: carton box/1		carton box/1
	CRC4D.59200	1300lm - LED module 12V-24V, cable 0,5 m, short housing Part number: CRC4D.59200 Quantity: carton box/1		carton box/1

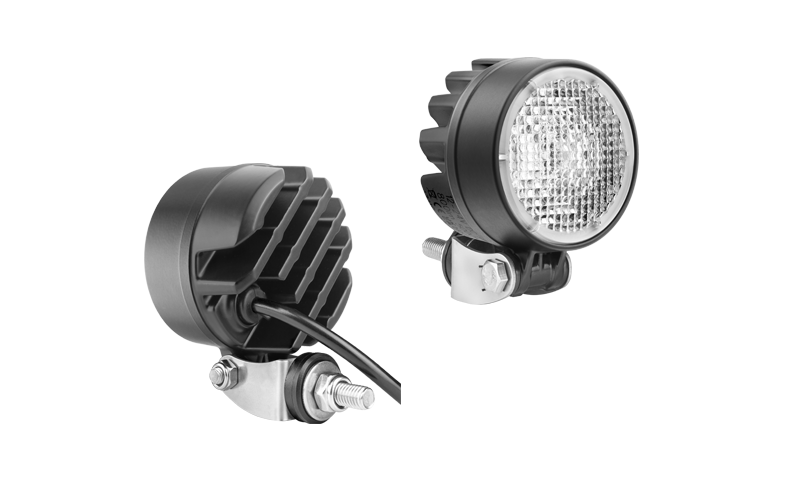

LED work lamp with rear mounting and cable

LED work lamp with rear mounting and cable

LED work lamp with rear mounting and cable

Compare	Part number	Equipment		Quantity
	CRC4F.59430	2000lm - LED module 12V-24V, cable 0,5 m, short housing Part number: CRC4F.59430 Quantity: carton box/1		carton box/1
	CRC4D.59230	1300lm - LED module 12V-24V, cable 0,5 m, short housing Part number: CRC4D.59230 Quantity: carton box/1		carton box/1

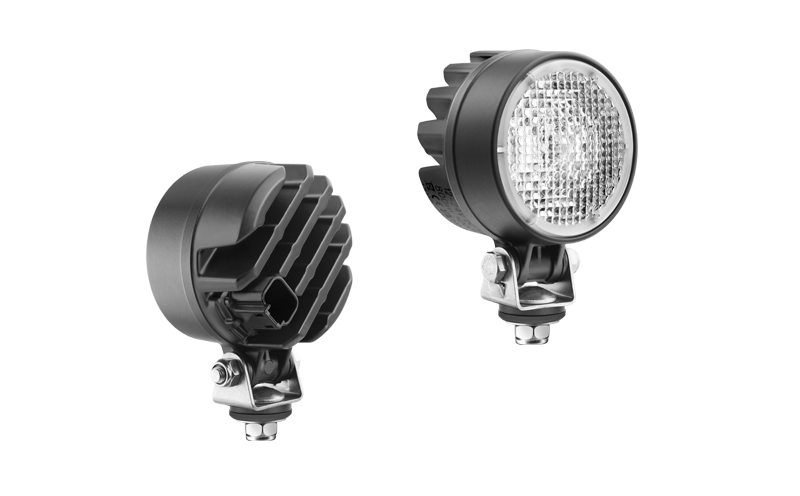

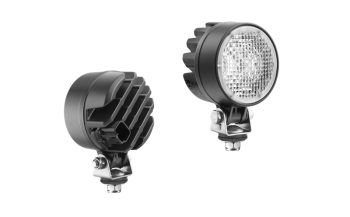

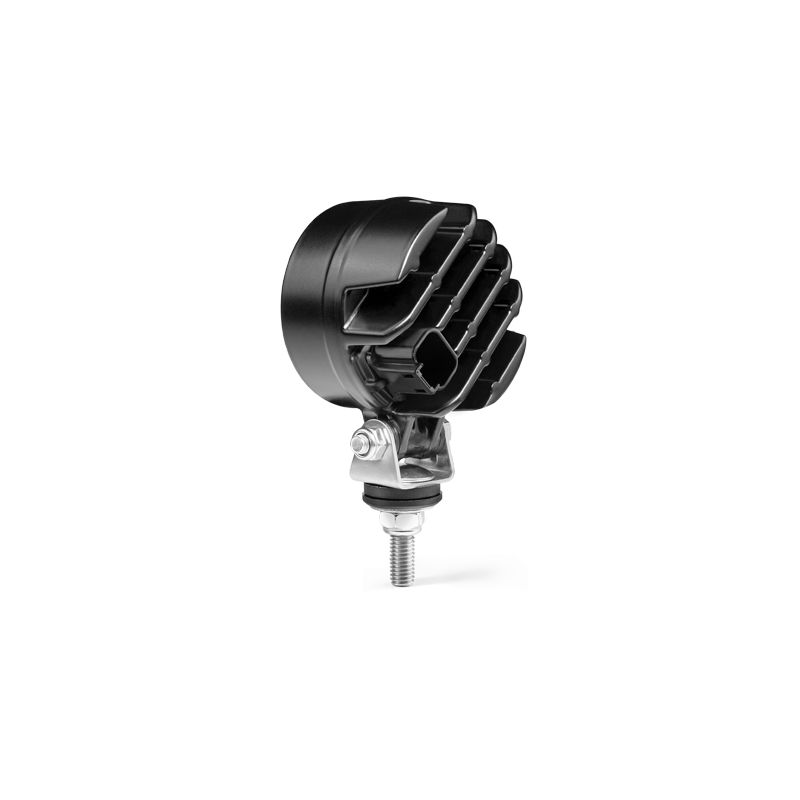

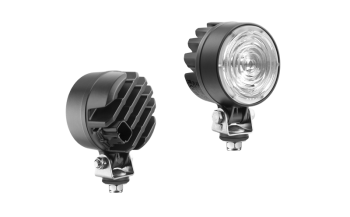

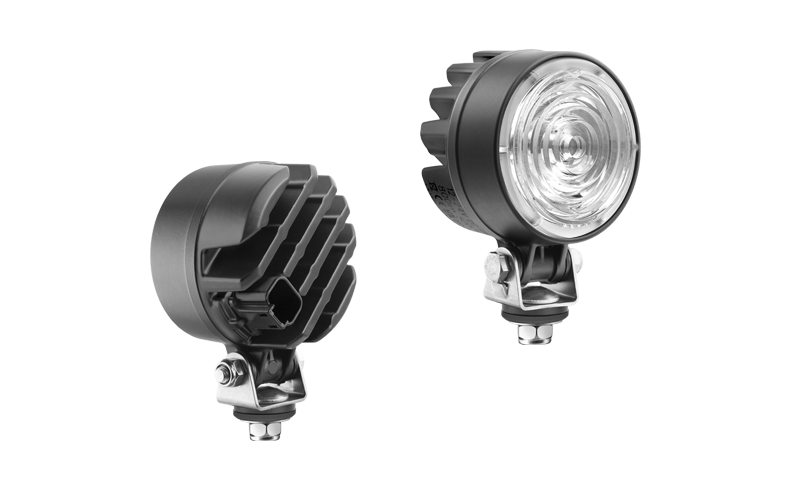

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC4F.59450	2000lm - LED module 12V-24V, short housing Part number: CRC4F.59450 Quantity: carton box/1		carton box/1
	CRC4D.59250	1300lm - LED module 12V-24V, short housing Part number: CRC4D.59250 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC4F.59460	2000lm - LED module 12V-24V, short housing Part number: CRC4F.59460 Quantity: carton box/1		carton box/1
	CRC4D.59260	1300lm - LED module 12V-24V, short housing Part number: CRC4D.59260 Quantity: carton box/1		carton box/1

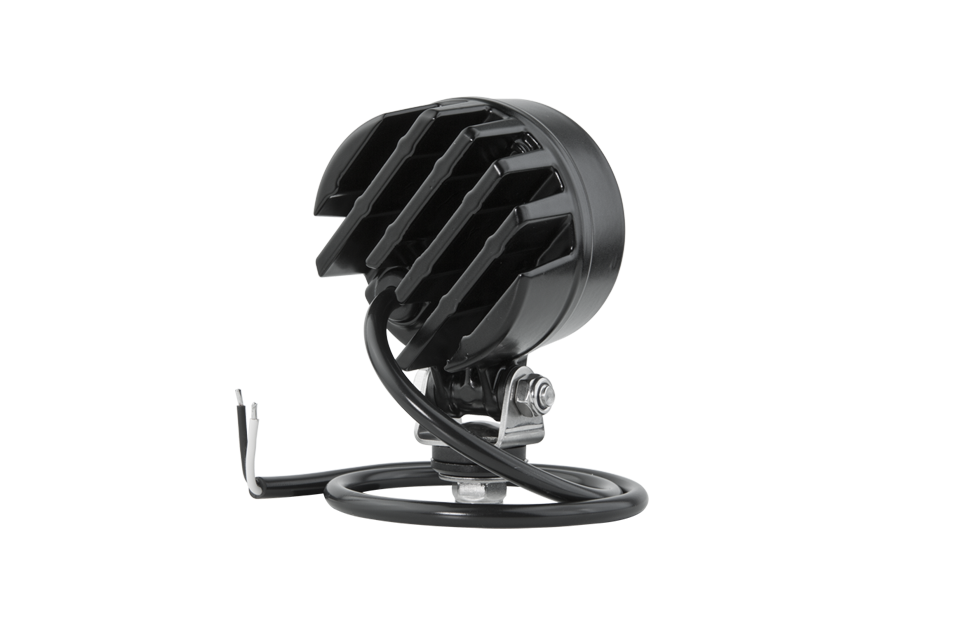

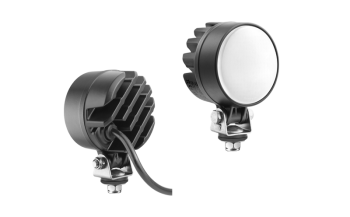

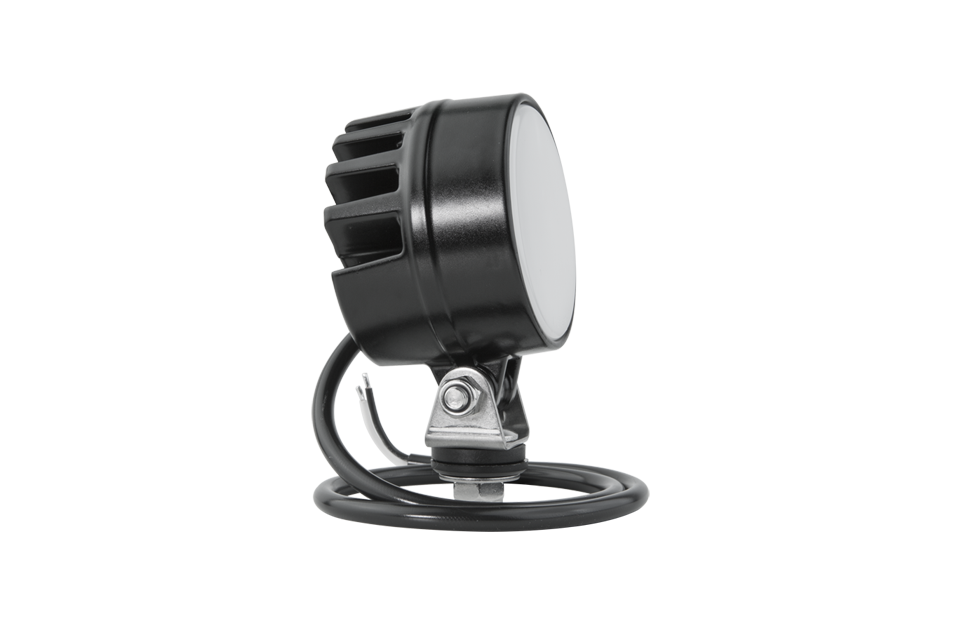

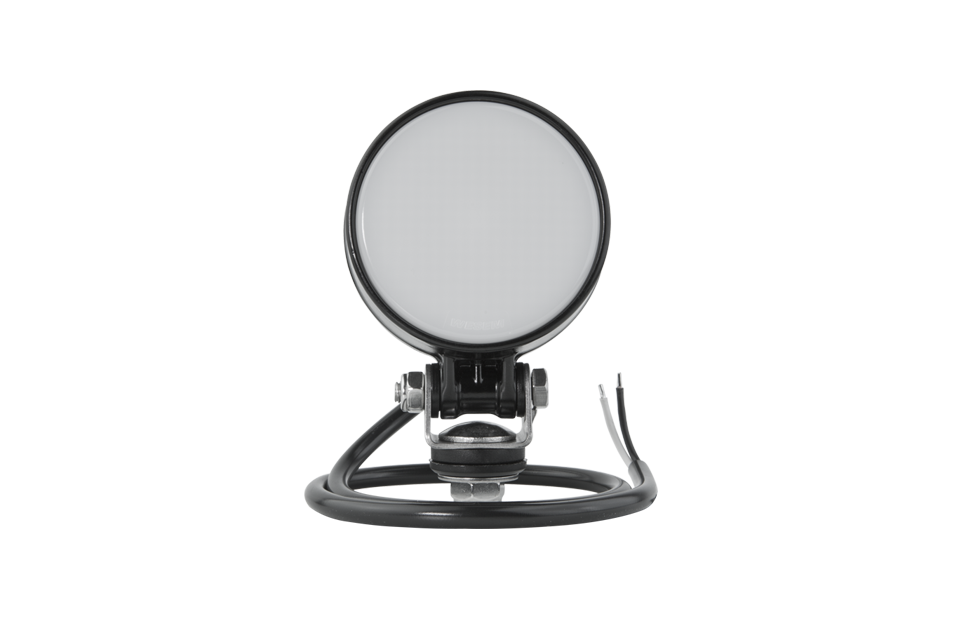

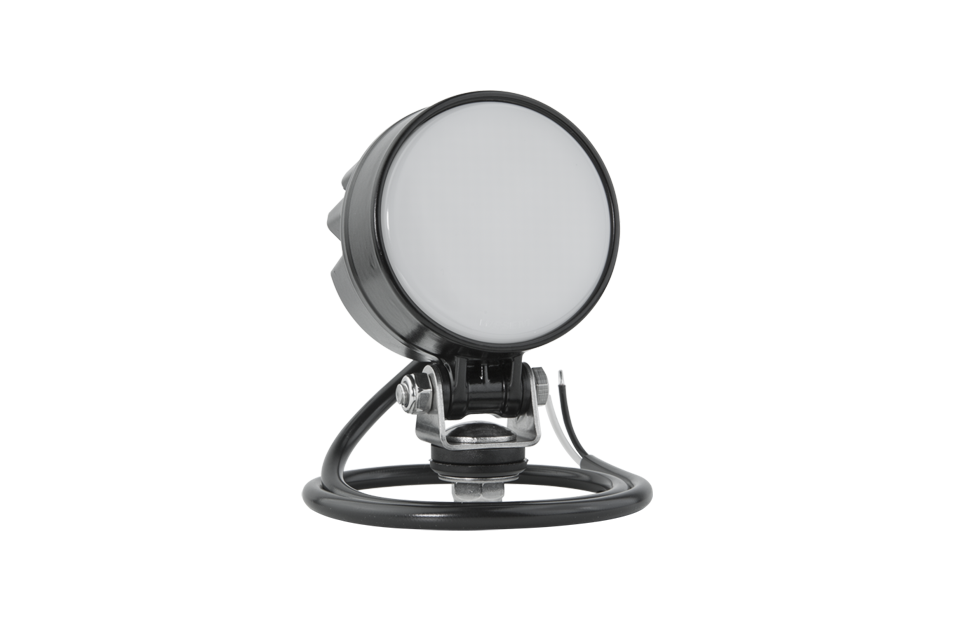

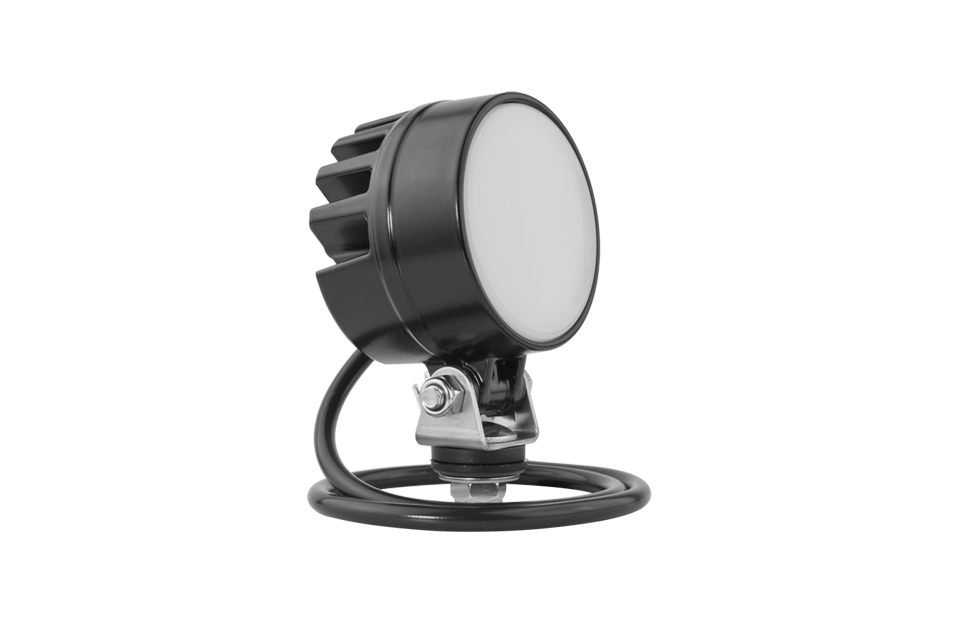

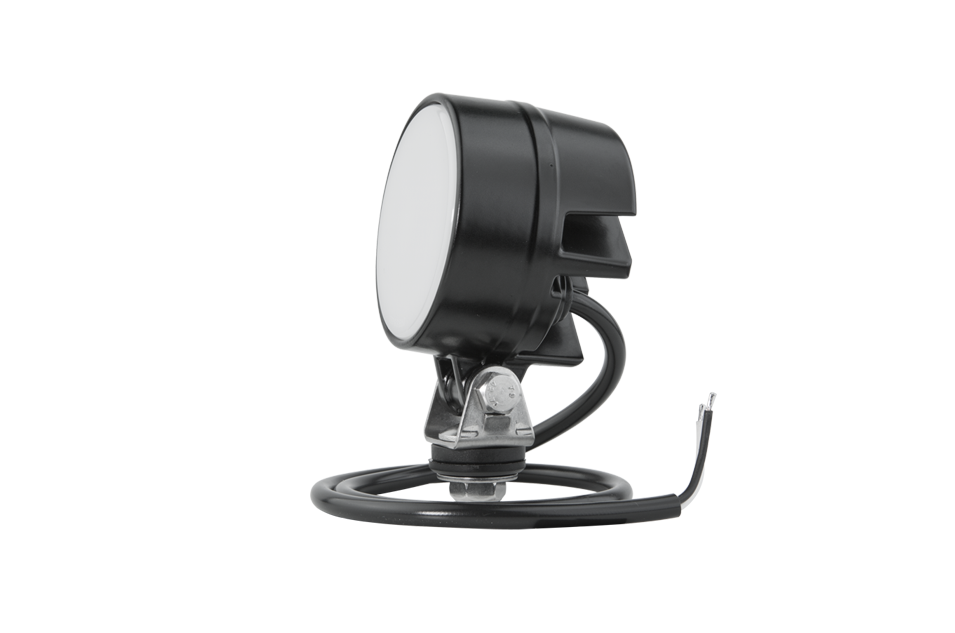

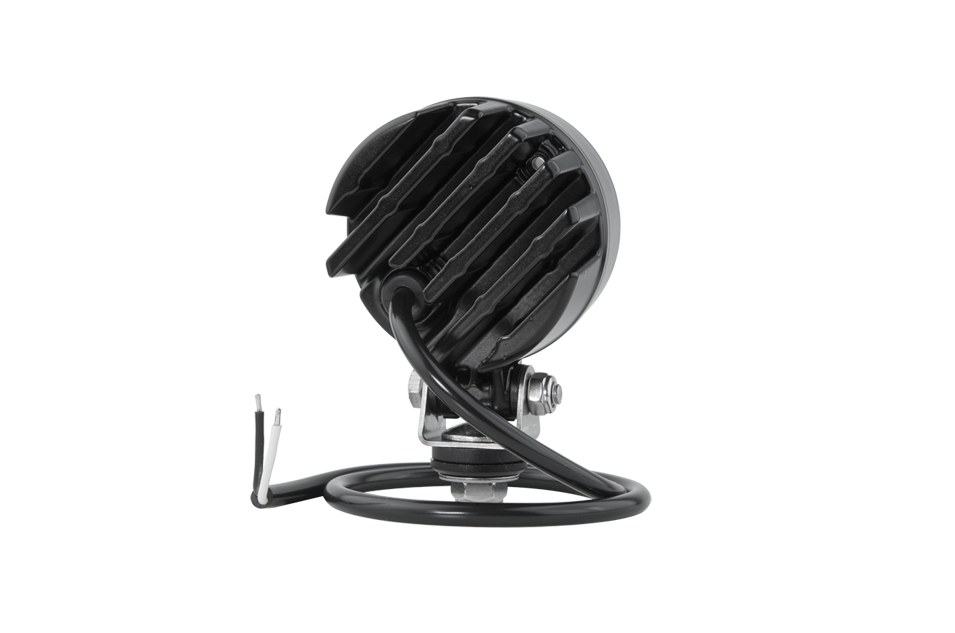

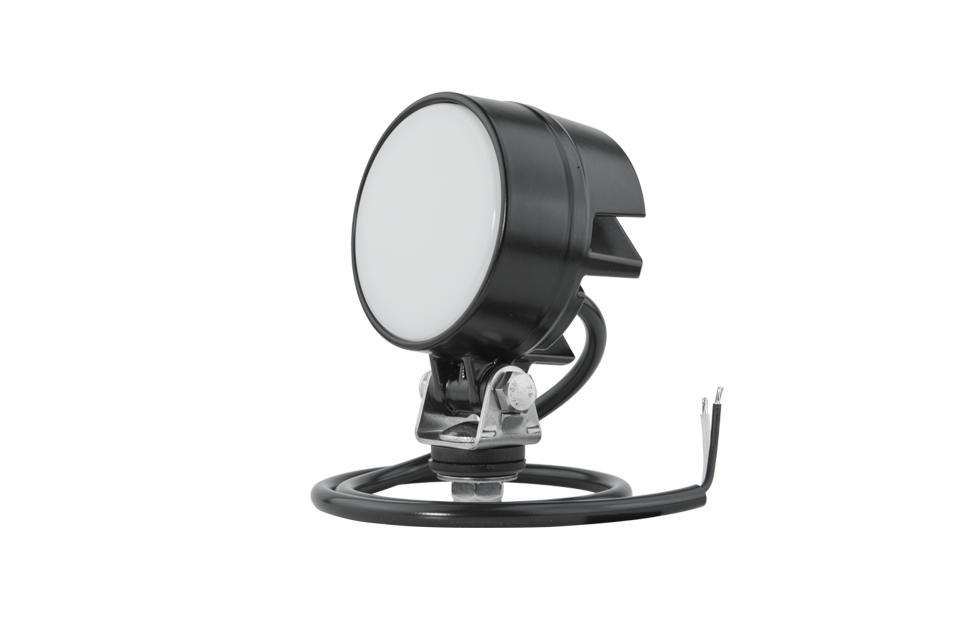

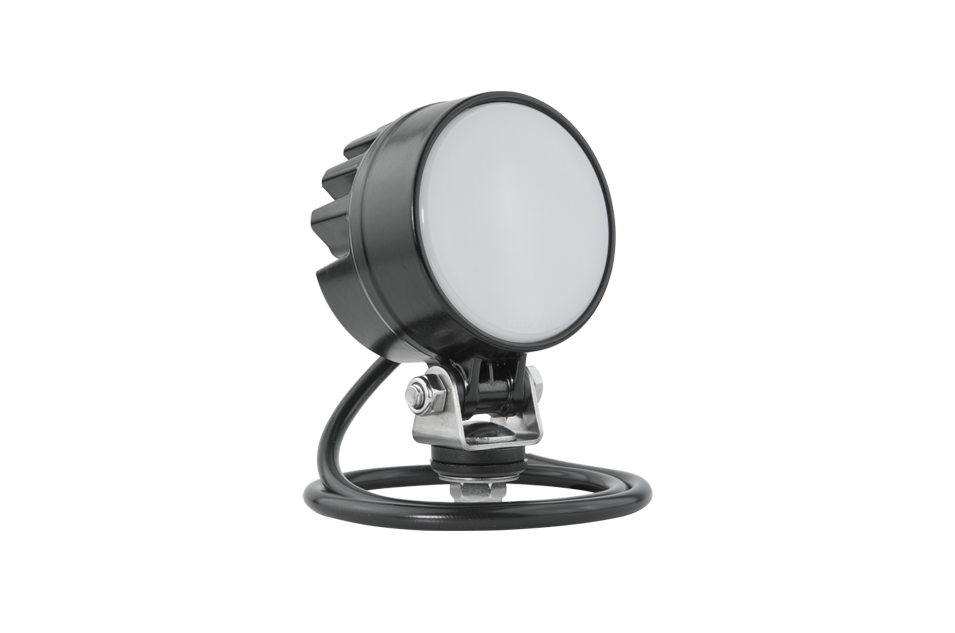

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC4E.59300	diffused, 1300lm - LED module 12V-24V, cable 0,5 m, short housing Part number: CRC4E.59300 Quantity: carton box/1		carton box/1

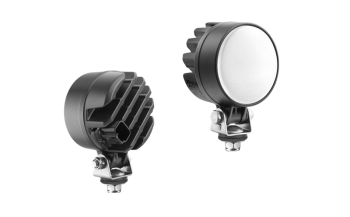

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC4E.59350	diffused, 1300lm - LED module 12V-24V, short housing Part number: CRC4E.59350 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC4E.59360	diffused, 1300lm - LED module 12V-24V, short housing Part number: CRC4E.59360 Quantity: carton box/1		carton box/1

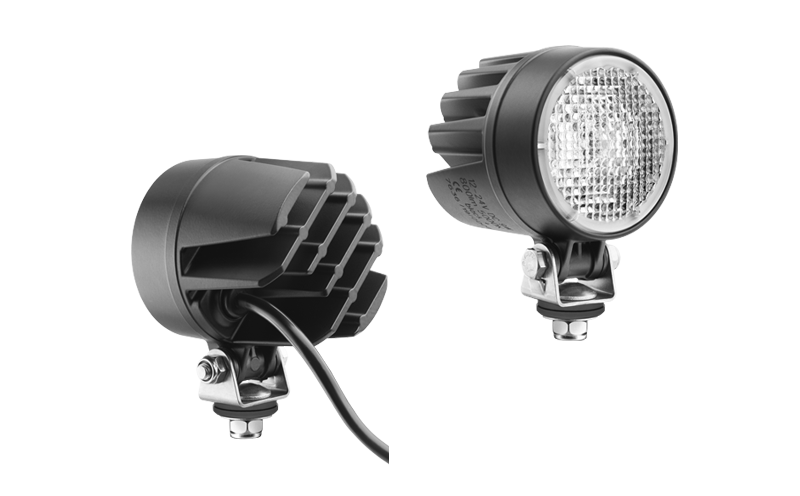

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC4G.59500	2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC4G.59500 Quantity: carton box/1		carton box/1

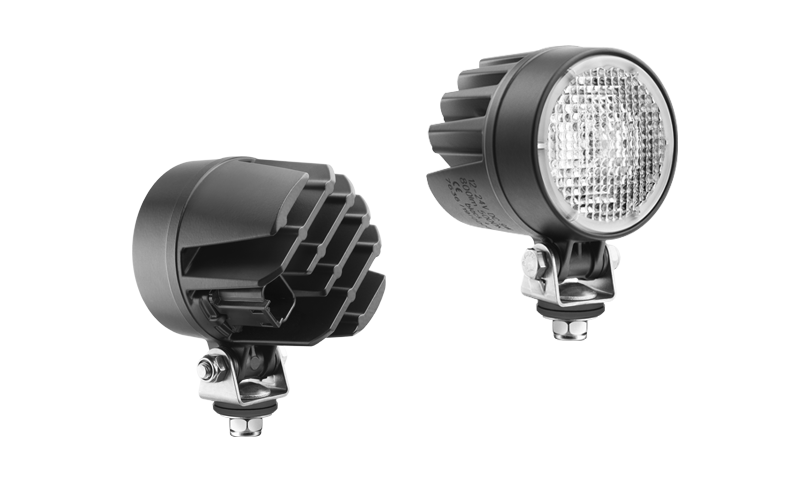

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC4G.59550	2000lm - LED module 12V-24V Part number: CRC4G.59550 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC4G.59560	2000lm - LED module 12V-24V Part number: CRC4G.59560 Quantity: carton box/1		carton box/1

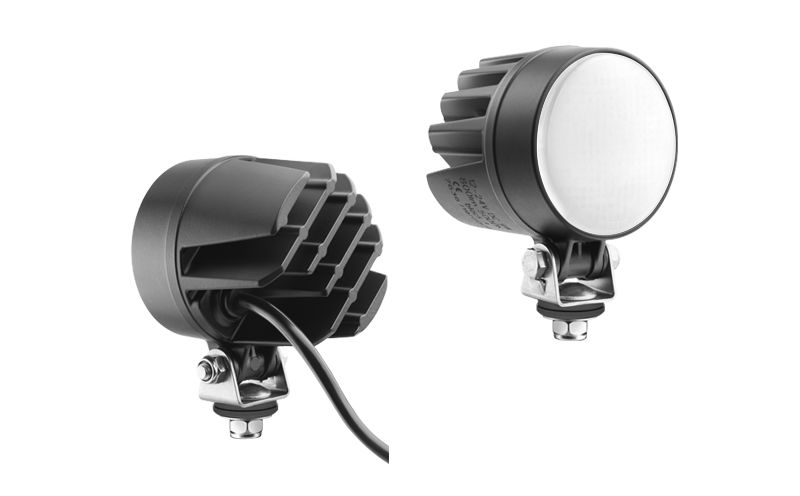

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC4H.59600	diffused, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC4H.59600 Quantity: carton box/1		carton box/1

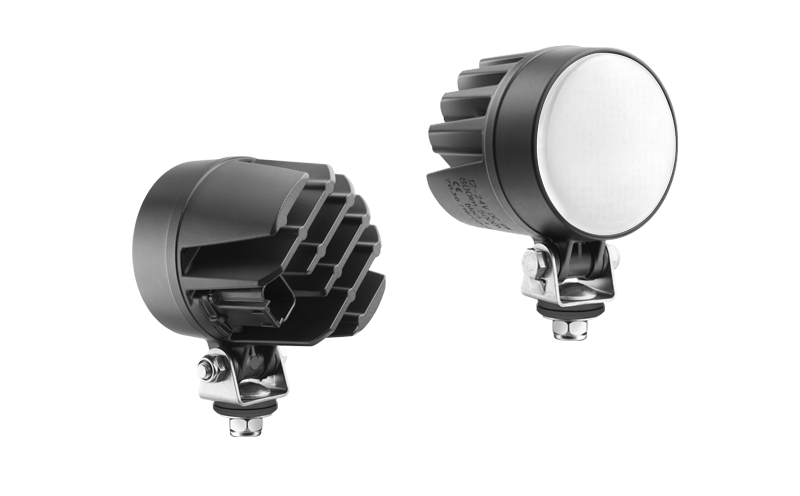

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC4H.59650	diffused, 2000lm - LED module 12V-24V Part number: CRC4H.59650 Quantity: carton box/1		carton box/1

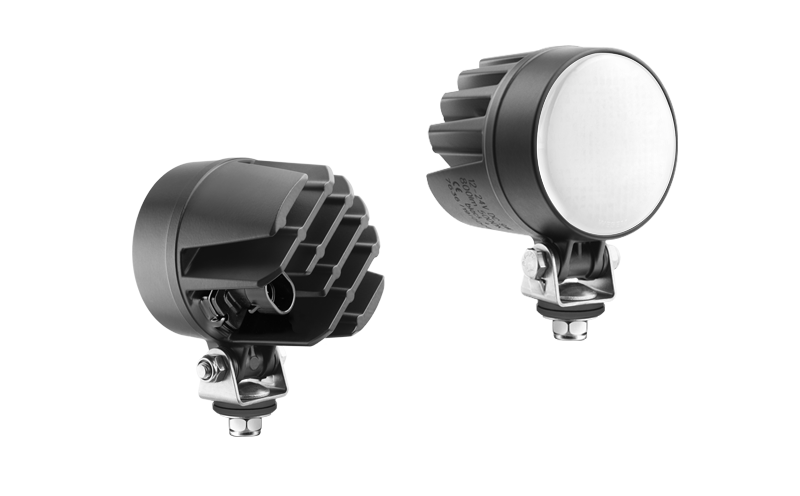

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC4H.59660	diffused, 2000lm - LED module 12V-24V Part number: CRC4H.59660 Quantity: carton box/1		carton box/1
