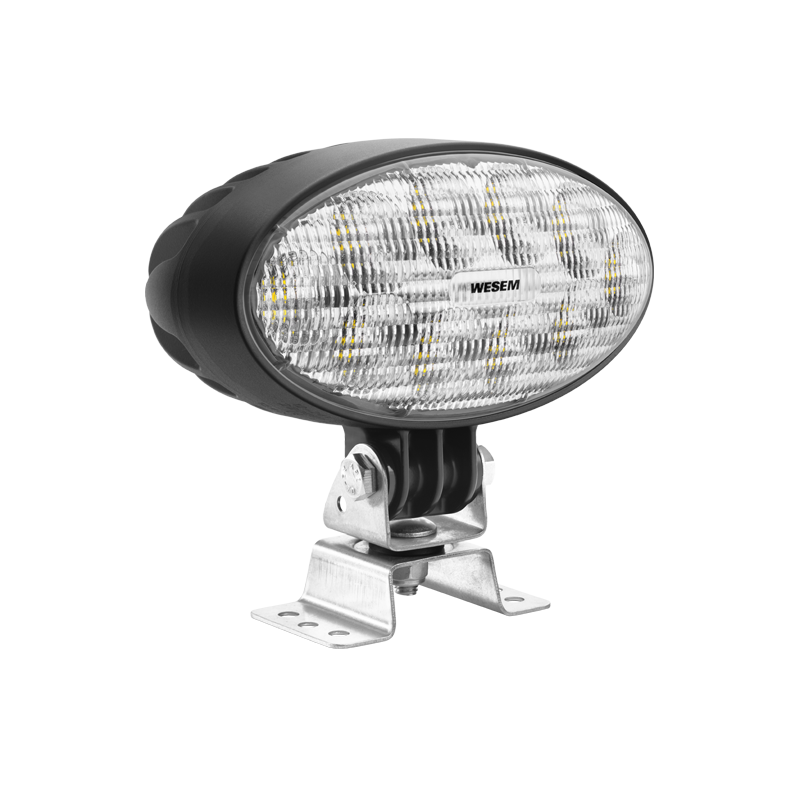

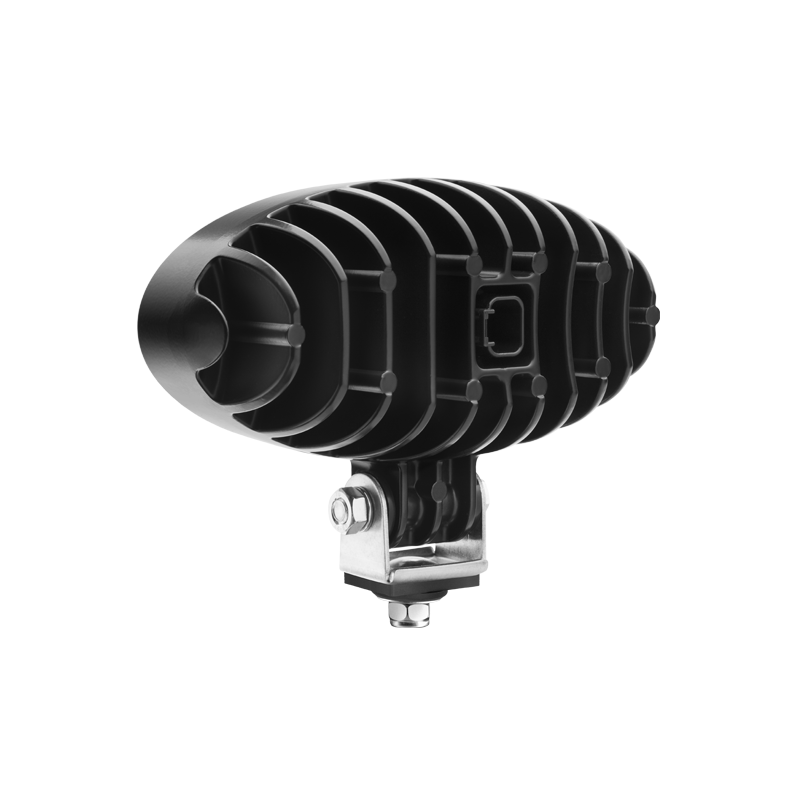

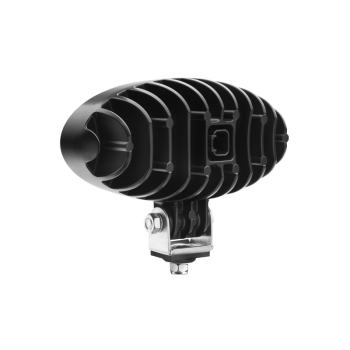

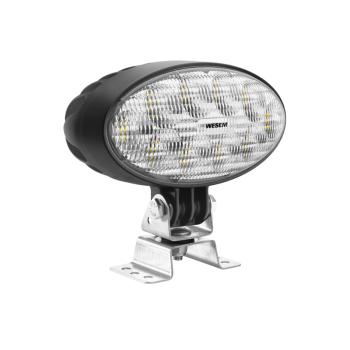

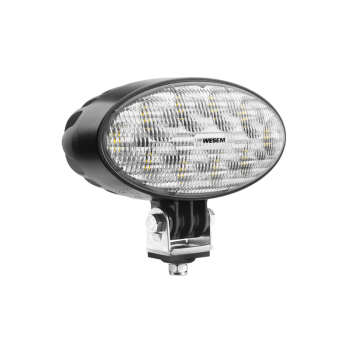

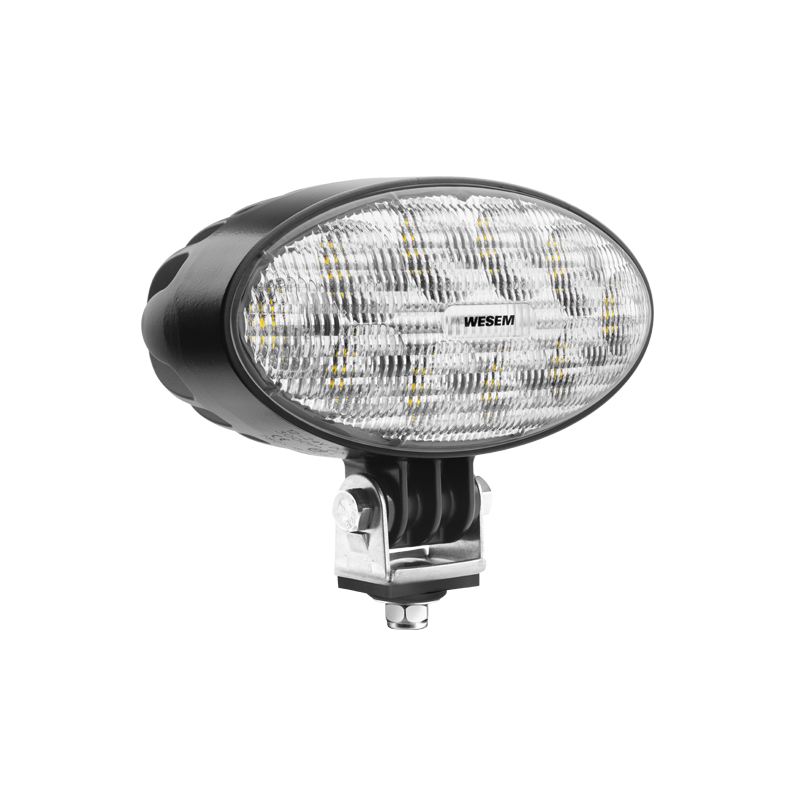

CRV1 60°x25° work lamps LED

CRV1 60°x25° work lamps LED

CRV1 60°x25° work lamps LED

CRV1 60°x25° work lamps LED

Dimensions	176x87x86
Rated power	70W, 40W, 35W, 28W
Light source	10 x LED
Supply voltage	12V-24V DC
Luminous flux	5500 lm, 4000 lm, 3000 lm, 2200 lm
Beam angle	60° x 25°
Beam type	wide
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

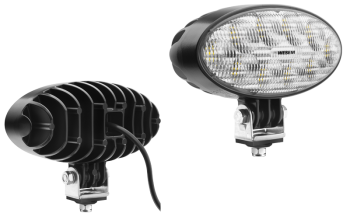

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRV1J.56001	5500lm - LED module 12V-24V, cable 0,5 m Part number: CRV1J.56001 Quantity: carton box/1		carton box/1
	CRV1F.53201	4000lm - LED module 12V-24V, cable 0,5 m Part number: CRV1F.53201 Quantity: carton box/1		carton box/1
	CRV1G.53101	3000lm - LED module 12V-24V, cable 0,5 m Part number: CRV1G.53101 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRV1F.53206	4000lm - LED module 12V-24V Part number: CRV1F.53206 Quantity: carton box/1		carton box/1
	CRV1G.53106	3000lm - LED module 12V-24V Part number: CRV1G.53106 Quantity: carton box/1		carton box/1

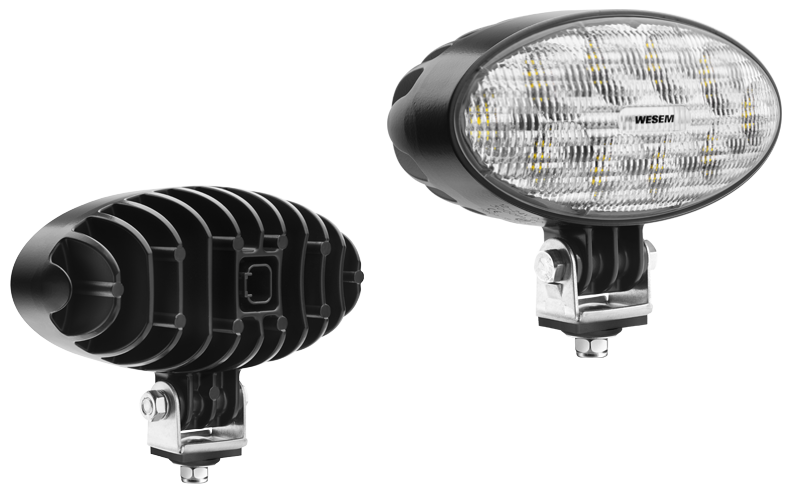

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRV1J.56014	5500lm - LED module 12V-24V Part number: CRV1J.56014 Quantity: carton box/1		carton box/1
	CRV1F.53204	4000lm - LED module 12V-24V Part number: CRV1F.53204 Quantity: carton box/1		carton box/1
	CRV1G.53114	3000lm - LED module 12V-24V Part number: CRV1G.53114 Quantity: carton box/1		carton box/1

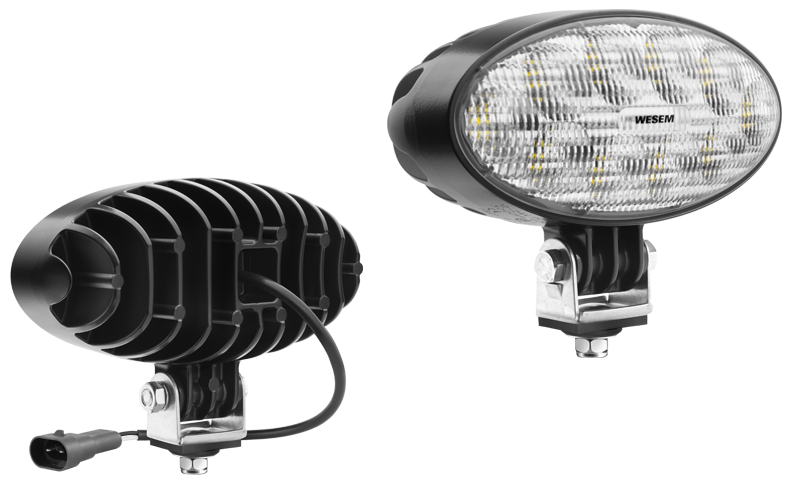

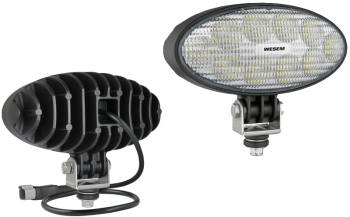

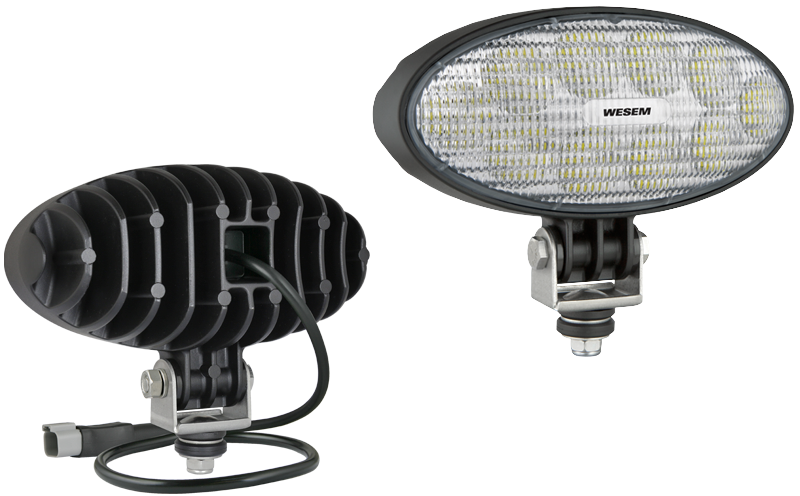

LED work lamp with cable and Deutsch DT04-2P connector

LED work lamp with cable and Deutsch DT04-2P connector

LED work lamp with cable and Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRV1F.53202	4000lm - LED module 12V-24V, cable 0,15 m Part number: CRV1F.53202 Quantity: carton box/1		carton box/1
	CRV1G.53102	3000lm - LED module 12V-24V, cable 0,15 m Part number: CRV1G.53102 Quantity: carton box/1		carton box/1

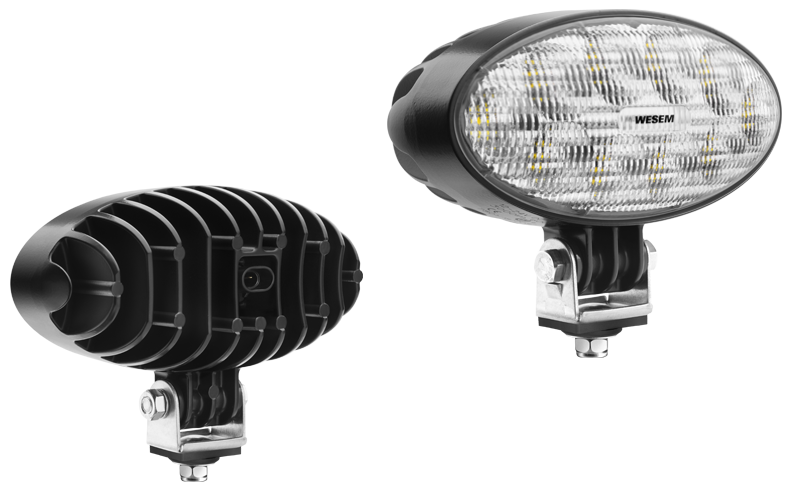

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRV1F.53203	4000lm - LED module 12V-24V Part number: CRV1F.53203 Quantity: carton box/1		carton box/1
	CRV1G.53113	3000lm - LED module 12V-24V Part number: CRV1G.53113 Quantity: carton box/1		carton box/1

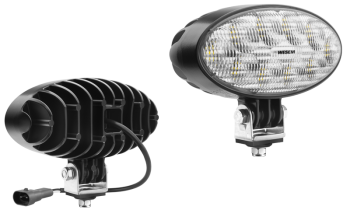

LED work lamp with cable and HB3 2P Cap connector

LED work lamp with cable and HB3 2P Cap connector

LED work lamp with cable and HB3 2P Cap connector

Compare	Part number	Equipment		Quantity
	CRV1J.56003	5500lm - LED module 12V-24V, cable 0,5 m Part number: CRV1J.56003 Quantity: carton box/1		carton box/1

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

Compare	Part number	Equipment		Quantity
	CRV1F.53212	4000lm - LED module 12V-24V, cable 0,5 m Part number: CRV1F.53212 Quantity: carton box/1		carton box/1

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

Compare	Part number	Equipment		Quantity
	CRV1G.53121	3000lm - LED module 12V-24V, cable 0,5 m Part number: CRV1G.53121 Quantity: carton box/1		carton box/1

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRV1G.53126	3000lm - LED module 12V-24V Part number: CRV1G.53126 Quantity: carton box/1		carton box/1

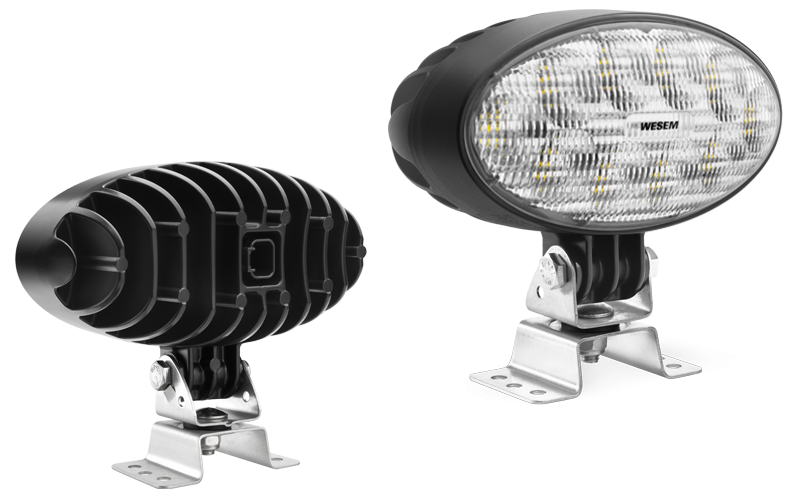

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRV1G.53134	3000lm - LED module 12V-24V Part number: CRV1G.53134 Quantity: carton box/1		carton box/1

LED work lamp with omega bracket and built-in AMP SuperSeal connector

LED work lamp with omega bracket and built-in AMP SuperSeal connector

LED work lamp with omega bracket and built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRV1G.53133	3000lm - LED module 12V-24V Part number: CRV1G.53133 Quantity: carton box/1		carton box/1

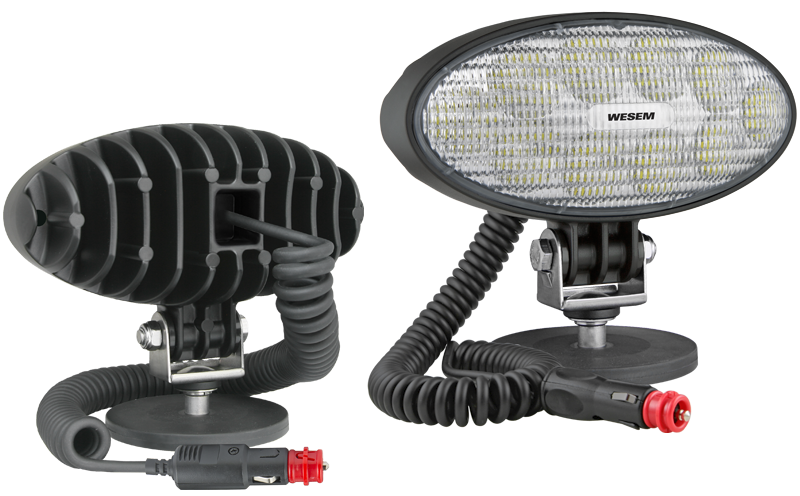

LED work lamp with magnetic holder and spiral cable

LED work lamp with magnetic holder and spiral cable

LED work lamp with magnetic holder and spiral cable

Compare	Part number	Equipment		Quantity
	CRV1J.56051	5500lm - LED module 12V-24V, spiral cable 8 m, cigarette lighter plug Part number: CRV1J.56051 Quantity: carton box/1		carton box/1
	CRV1F.53251	4000lm - LED module 12V-24V, spiral cable 8 m, cigarette lighter plug Part number: CRV1F.53251 Quantity: carton box/1		carton box/1
