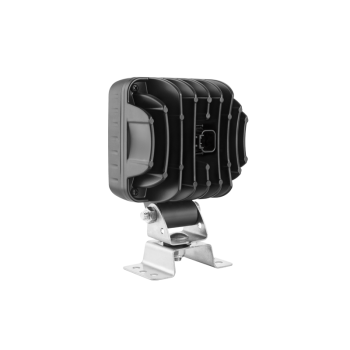

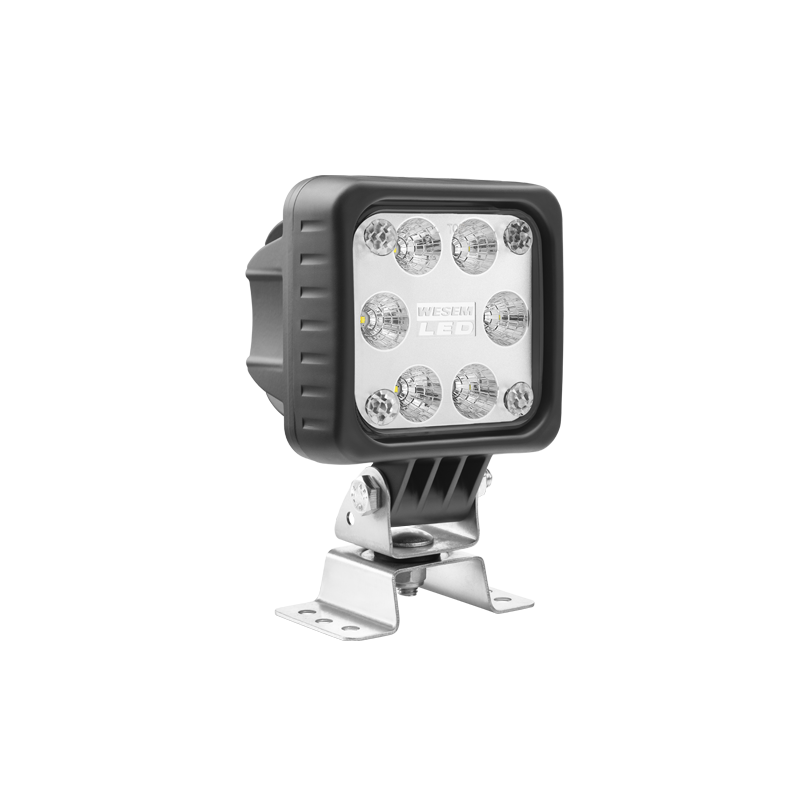

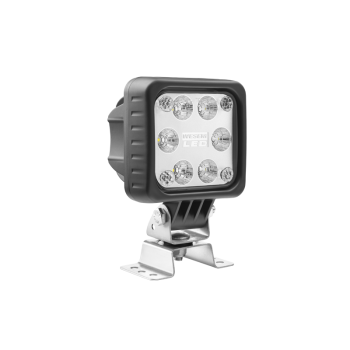

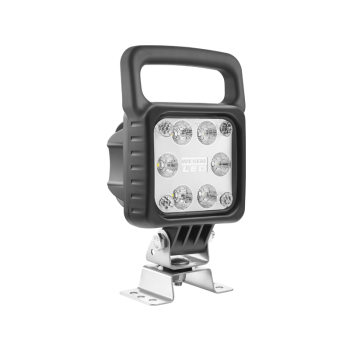

LED-FF 6° work lamps with omega bracket

LED-FF 6° work lamps with omega bracket

LED-FF 6° work lamps with omega bracket

LED-FF 6° work lamps with omega bracket

LED-FF 6° work lamps with omega bracket

Dimensions	100x100x76
Rated power	40W, 30W, 29W, 25W, 19W
Light source	6 x LED
Supply voltage	12÷24V DC, 12÷48V DC
Luminous flux	4000 lm, 3000 lm, 2500 lm, 2000 lm, 1500 lm
Beam angle	6°
Beam type	spot
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

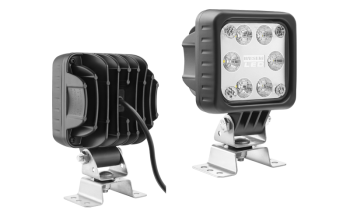

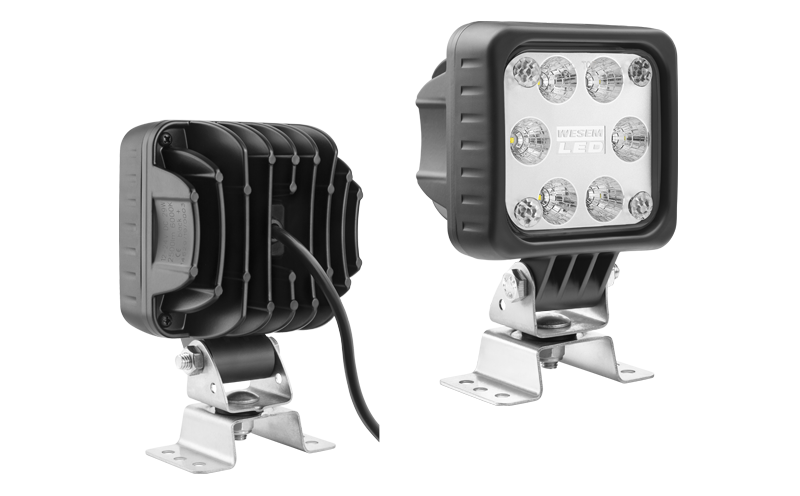

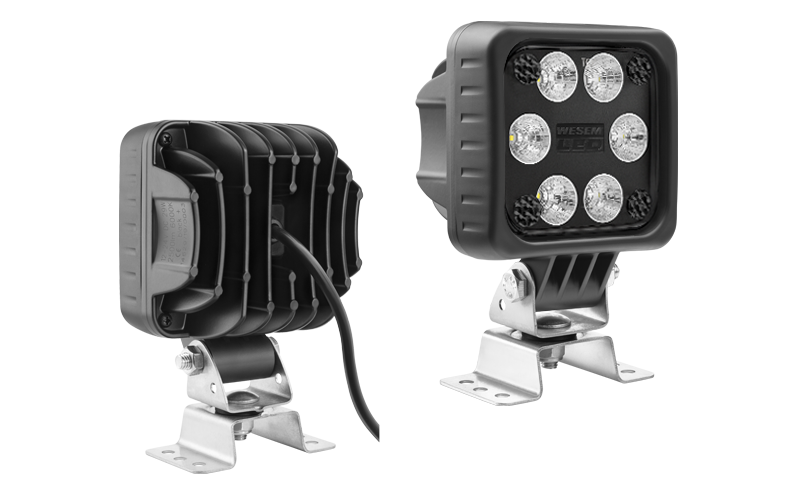

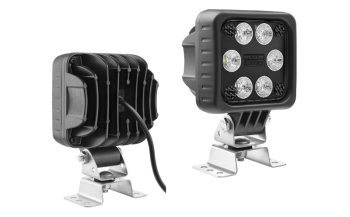

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

Compare	Part number	Equipment		Quantity
	LEDXB.56420	4000lm - LED module 12V-24V, cable 0,5 m Part number: LEDXB.56420 Quantity: carton box/1		carton box/1
	LED9C.53920	3000lm - LED module 12V-24V, cable 0,5 m Part number: LED9C.53920 Quantity: carton box/1		carton box/1
	LED8F.51020	2500lm - LED module 12V-24V, cable 0,5 m Part number: LED8F.51020 Quantity: carton box/1		carton box/1
	LED5F.47920	2000lm - LED module 12V-24V, cable 0,5 m Part number: LED5F.47920 Quantity: carton box/1		carton box/1
	LED4F.47820	1500lm - LED module 12V-24V, cable 0,5 m Part number: LED4F.47820 Quantity: carton box/1		carton box/1
	LED4F.47860	1500lm - LED module 12V-48V, cable 0,5 m Part number: LED4F.47860 Quantity: carton box/1		carton box/1

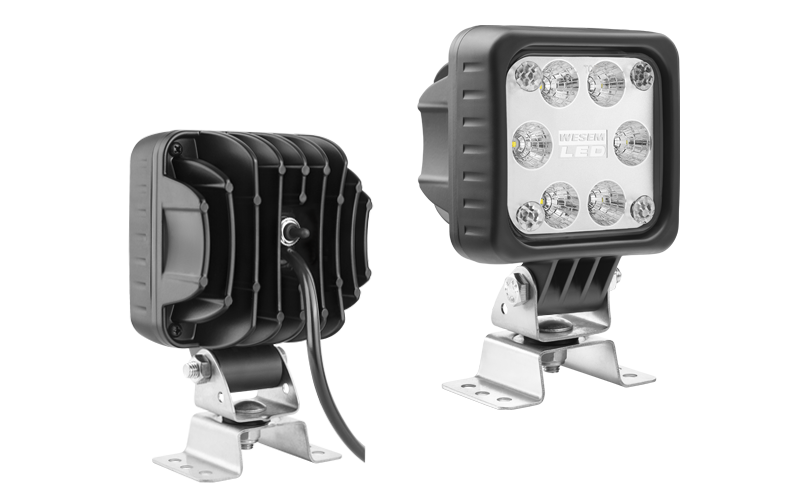

LED work lamp with omega bracket, cable and switch

LED work lamp with omega bracket, cable and switch

LED work lamp with omega bracket, cable and switch

Compare	Part number	Equipment		Quantity
	LED9C.53982	3000lm - LED module 12V-24V, cable 0,5 m Part number: LED9C.53982 Quantity: carton box/1		carton box/1
	LED8F.51082	2500lm - LED module 12V-24V, cable 0,5 m Part number: LED8F.51082 Quantity: carton box/1		carton box/1
	LED5F.47982	2000lm - LED module 12V-24V, cable 0,5 m Part number: LED5F.47982 Quantity: carton box/1		carton box/1
	LED4F.47882	1500lm - LED module 12V-24V, cable 0,5 m Part number: LED4F.47882 Quantity: carton box/1		carton box/1
	LED4F.47886	1500lm - LED module 12V-48V, cable 0,5 m Part number: LED4F.47886 Quantity: carton box/1		carton box/1

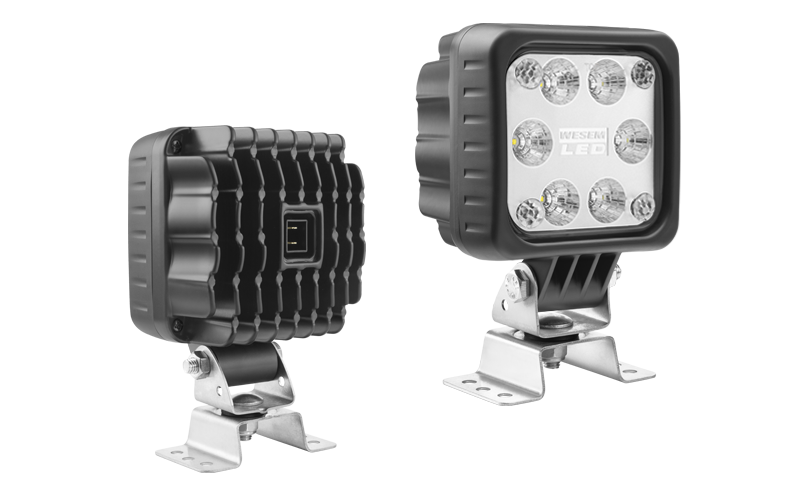

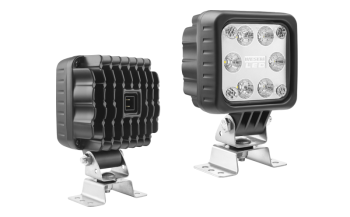

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	LED9C.53926	3000lm - LED module 12V-24V Part number: LED9C.53926 Quantity: carton box/1		carton box/1
	LED8F.51026	2500lm - LED module 12V-24V Part number: LED8F.51026 Quantity: carton box/1		carton box/1
	LED5F.47926	2000lm - LED module 12V-24V Part number: LED5F.47926 Quantity: carton box/1		carton box/1
	LED4F.47826	1500lm - LED module 12V-24V Part number: LED4F.47826 Quantity: carton box/1		carton box/1
	LED4F.47866	1500lm - LED module 12V-48V Part number: LED4F.47866 Quantity: carton box/1		carton box/1

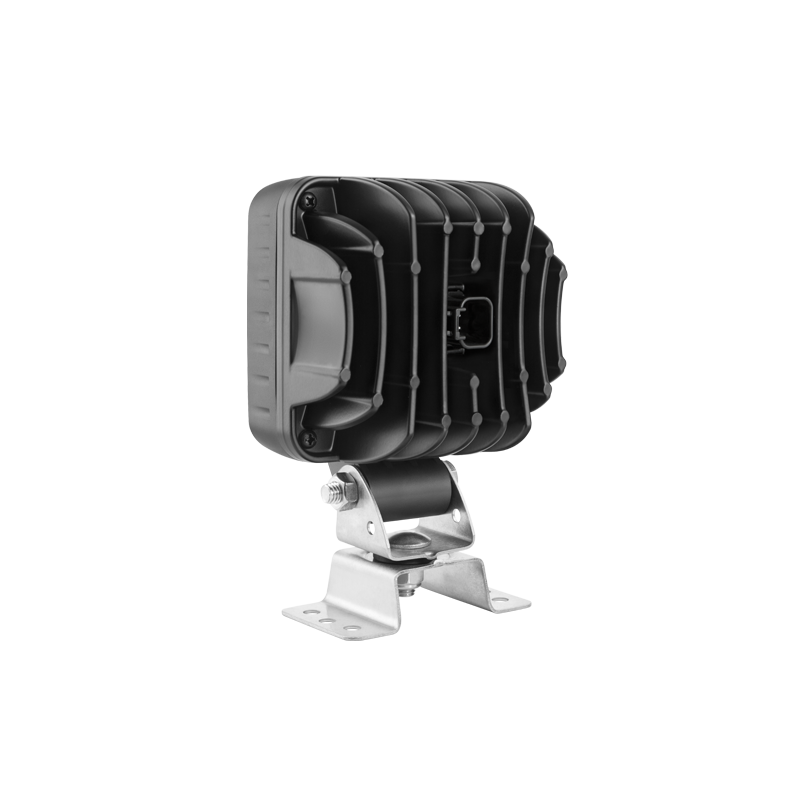

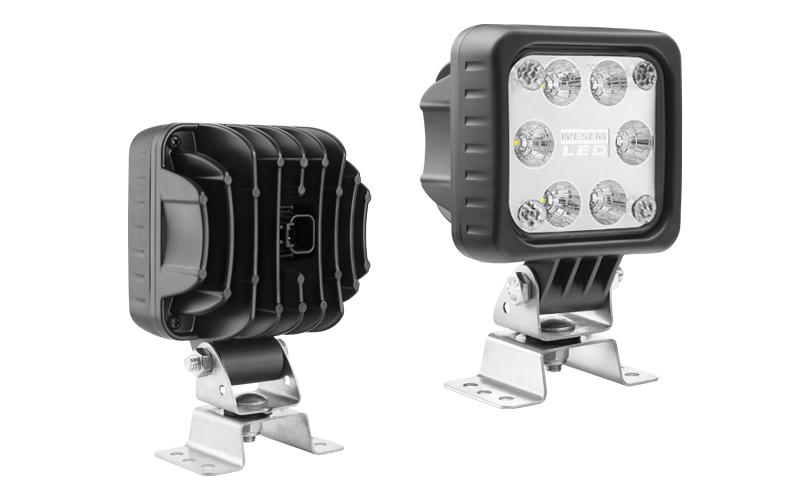

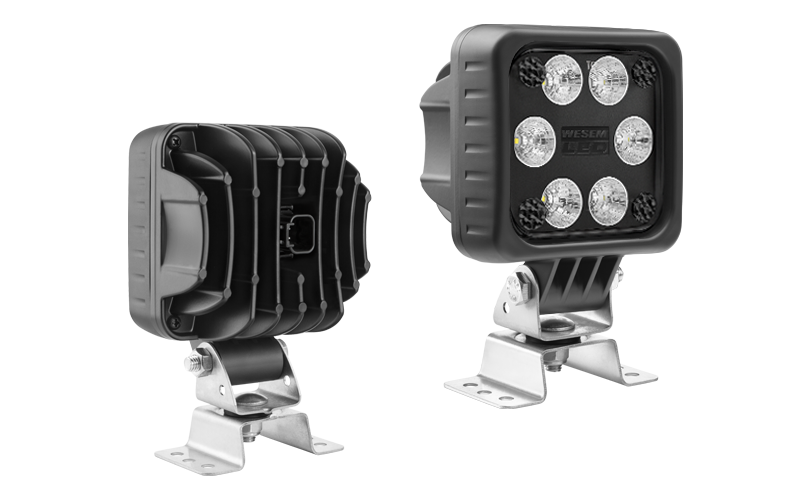

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	LEDXB.56427	4000lm - LED module 12V-24V Part number: LEDXB.56427 Quantity: carton box/1		carton box/1
	LED9C.53927	3000lm - LED module 12V-24V Part number: LED9C.53927 Quantity: carton box/1		carton box/1
	LED8F.51027	2500lm - LED module 12V-24V Part number: LED8F.51027 Quantity: carton box/1		carton box/1
	LED5F.47927	2000lm - LED module 12V-24V Part number: LED5F.47927 Quantity: carton box/1		carton box/1
	LED4F.47827	1500lm - LED module 12V-24V Part number: LED4F.47827 Quantity: carton box/1		carton box/1
	LED4F.47867	1500lm - LED module 12V-48V Part number: LED4F.47867 Quantity: carton box/1		carton box/1

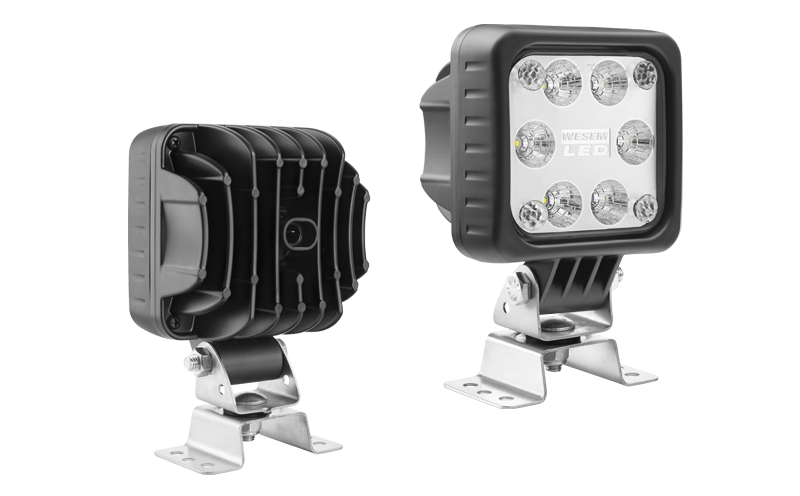

LED work lamp with omega bracket and built-in AMP SuperSeal connector

LED work lamp with omega bracket and built-in AMP SuperSeal connector

LED work lamp with omega bracket and built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	LED9C.53928	3000lm - LED module 12V-24V Part number: LED9C.53928 Quantity: carton box/1		carton box/1
	LED8F.51028	2500lm - LED module 12V-24V Part number: LED8F.51028 Quantity: carton box/1		carton box/1
	LED5F.47928	2000lm - LED module 12V-24V Part number: LED5F.47928 Quantity: carton box/1		carton box/1
	LED4F.47828	1500lm - LED module 12V-24V Part number: LED4F.47828 Quantity: carton box/1		carton box/1
	LED4F.47868	1500lm - LED module 12V-48V Part number: LED4F.47868 Quantity: carton box/1		carton box/1

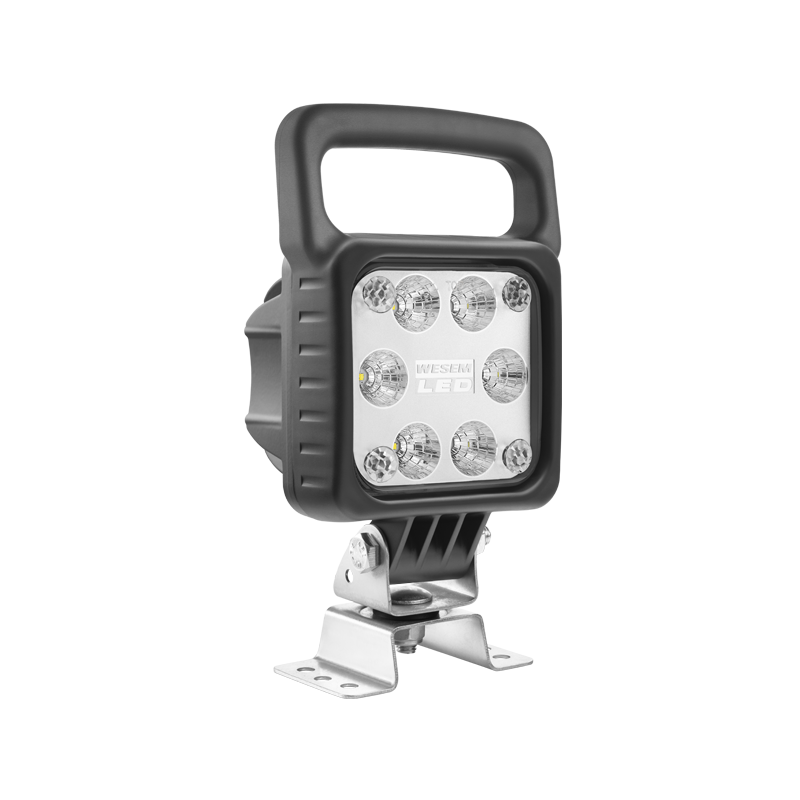

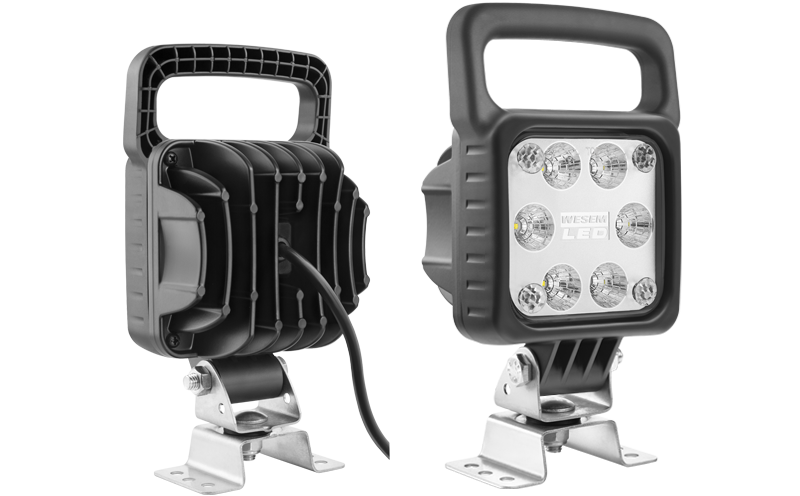

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

LED work lamp with omega bracket and cable

Compare	Part number	Equipment		Quantity
	LED9C.53930	3000lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED9C.53930 Quantity: carton box/1		carton box/1
	LED8F.51030	2500lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED8F.51030 Quantity: carton box/1		carton box/1
	LED5F.47930	2000lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED5F.47930 Quantity: carton box/1		carton box/1
	LED4F.47830	1500lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED4F.47830 Quantity: carton box/1		carton box/1
	LED4F.47870	1500lm - LED module 12V-48V, cable 0,5 m, handle Part number: LED4F.47870 Quantity: carton box/1		carton box/1

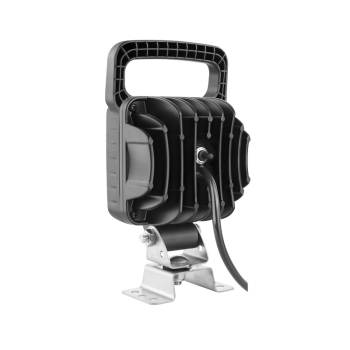

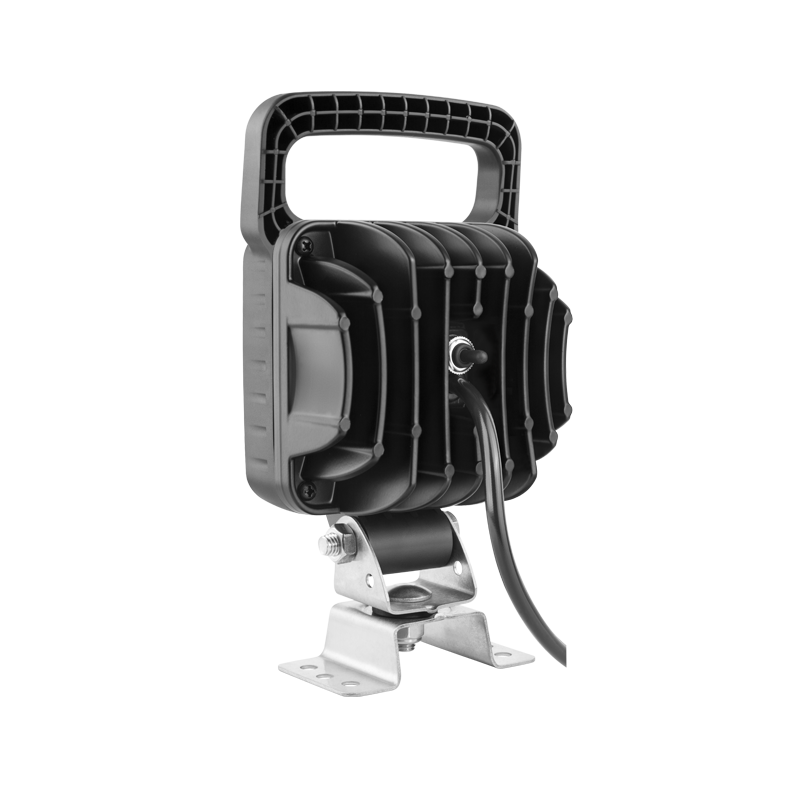

LED work lamp with omega bracket, cable and switch

LED work lamp with omega bracket, cable and switch

LED work lamp with omega bracket, cable and switch

Compare	Part number	Equipment		Quantity
	LED9C.53983	3000lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED9C.53983 Quantity: carton box/1		carton box/1
	LED8F.51083	2500lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED8F.51083 Quantity: carton box/1		carton box/1
	LED5F.47983	2000lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED5F.47983 Quantity: carton box/1		carton box/1
	LED4F.47883	1500lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED4F.47883 Quantity: carton box/1		carton box/1
	LED4F.47887	1500lm - LED module 12V-48V, cable 0,5 m, handle Part number: LED4F.47887 Quantity: carton box/1		carton box/1

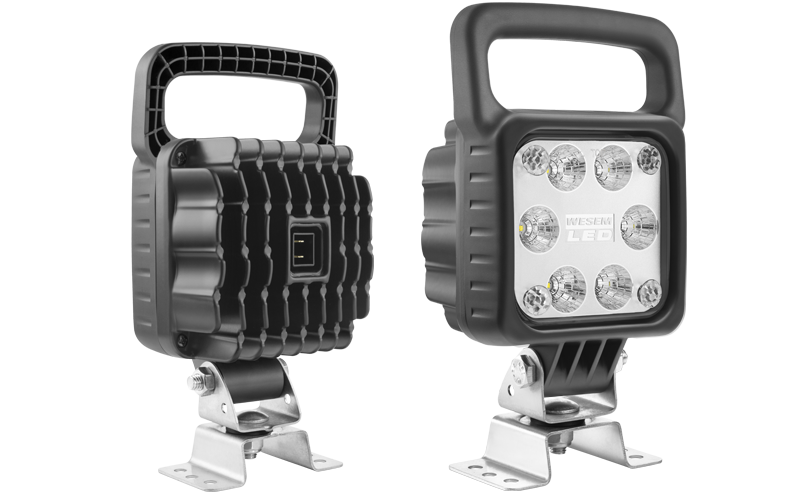

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

LED work lamp with omega bracket and built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	LED9C.53936	3000lm - LED module 12V-24V, handle Part number: LED9C.53936 Quantity: carton box/1		carton box/1
	LED8F.51036	2500lm - LED module 12V-24V, handle Part number: LED8F.51036 Quantity: carton box/1		carton box/1
	LED5F.47936	2000lm - LED module 12V-24V, handle Part number: LED5F.47936 Quantity: carton box/1		carton box/1
	LED4F.47836	1500lm - LED module 12V-24V, handle Part number: LED4F.47836 Quantity: carton box/1		carton box/1
	LED4F.47876	1500lm - LED module 12V-48V, handle Part number: LED4F.47876 Quantity: carton box/1		carton box/1

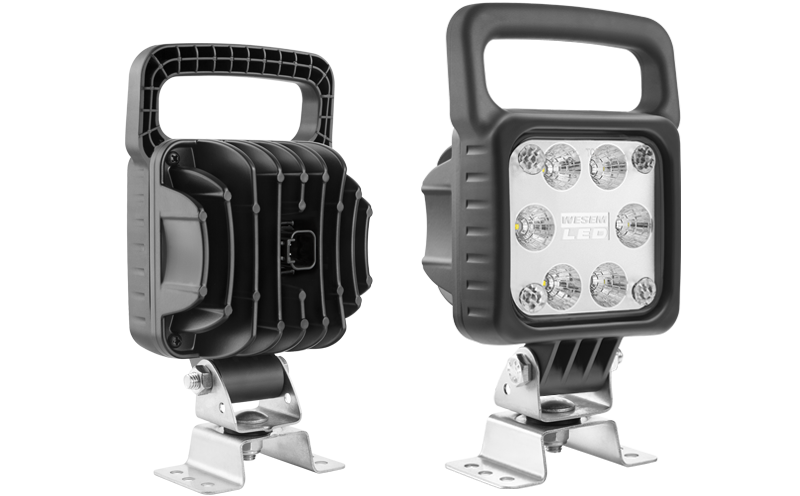

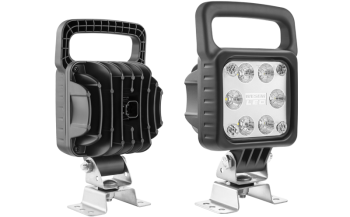

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

LED work lamp with omega bracket and built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	LED9C.53937	3000lm - LED module 12V-24V, handle Part number: LED9C.53937 Quantity: carton box/1		carton box/1
	LED8F.51037	2500lm - LED module 12V-24V, handle Part number: LED8F.51037 Quantity: carton box/1		carton box/1
	LED5F.47937	2000lm - LED module 12V-24V, handle Part number: LED5F.47937 Quantity: carton box/1		carton box/1
	LED4F.47837	1500lm - LED module 12V-24V, handle Part number: LED4F.47837 Quantity: carton box/1		carton box/1
	LED4F.47877	1500lm - LED module 12V-48V, handle Part number: LED4F.47877 Quantity: carton box/1		carton box/1

Tube clamp adapter with AMP Faston connector

Tube clamp adapter with AMP Faston connector

Tube clamp adapter with AMP Faston connector

Compare	Part number	Equipment		Quantity
	CAR1.47300	for work lamps - cable 0,22 m, DIN 72591 connector Part number: CAR1.47300 Quantity: carton box/1		carton box/1

Tube clamp adapter with Deutsch connector

Tube clamp adapter with Deutsch connector

Tube clamp adapter with Deutsch connector

Compare	Part number	Equipment		Quantity
	CAR1.47301	for work lamps - cable 0,22 m, DIN 72591 connector, DT06-2S connector Part number: CAR1.47301 Quantity: carton box/1		carton box/1

On-pipe holder Ø15÷28 mm

On-pipe holder Ø15÷28 mm

On-pipe holder Ø15÷28 mm

Compare	Part number	Equipment		Quantity
	CAR2.49100	for work lamps Part number: CAR2.49100 Quantity: carton box/1		carton box/1

On-pipe holder Ø15÷28 mm with 3D adjustment

On-pipe holder Ø15÷28 mm with 3D adjustment

On-pipe holder Ø15÷28 mm with 3D adjustment

Compare	Part number	Equipment		Quantity
	CAR2.49110	for work lamps Part number: CAR2.49110 Quantity: carton box/1		carton box/1

Bracket compatible with DIN14640 (for pipe Ø30)

Bracket compatible with DIN14640 (for pipe Ø30)

Bracket compatible with DIN14640 (for pipe Ø30)

Compare	Part number	Equipment		Quantity
	CAR3.50600	for work lamps Part number: CAR3.50600 Quantity: carton box/1		carton box/1

Suction cup holder Ø87

Suction cup holder Ø87

Suction cup holder Ø87

Compare	Part number	Equipment		Quantity
	CAR5.55600	for work lamps Part number: CAR5.55600 Quantity: carton box/1		carton box/1
