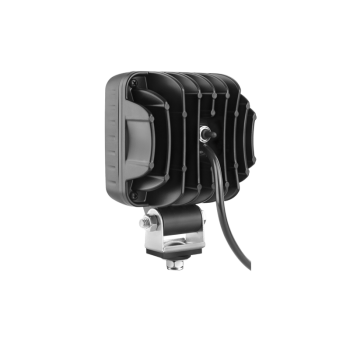

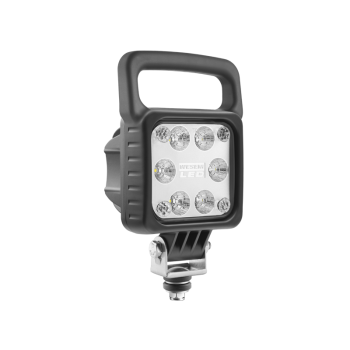

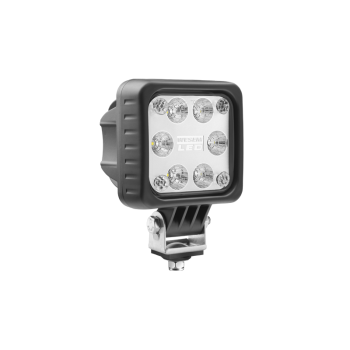

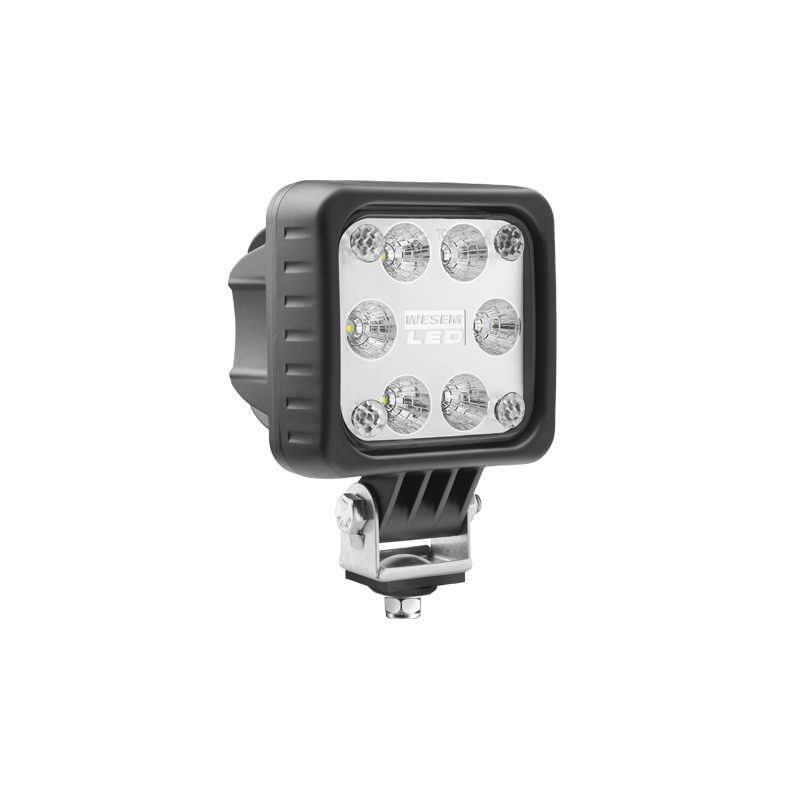

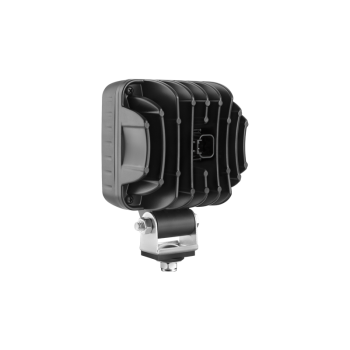

LED-FF 6° work lamps with standard bracket

LED-FF 6° work lamps with standard bracket

LED-FF 6° work lamps with standard bracket

LED-FF 6° work lamps with standard bracket

LED-FF 6° work lamps with standard bracket

Dimensions	100x100x76
Rated power	40 W, 30 W, 29 W, 25 W, 19 W
Light source	6 x LED
Supply voltage	12÷24 V DC, 12÷48 V DC
Luminous flux	4000 lm, 3000 lm, 2500 lm, 2000 lm, 1500 lm
Beam angle	6°
Beam type	spot
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

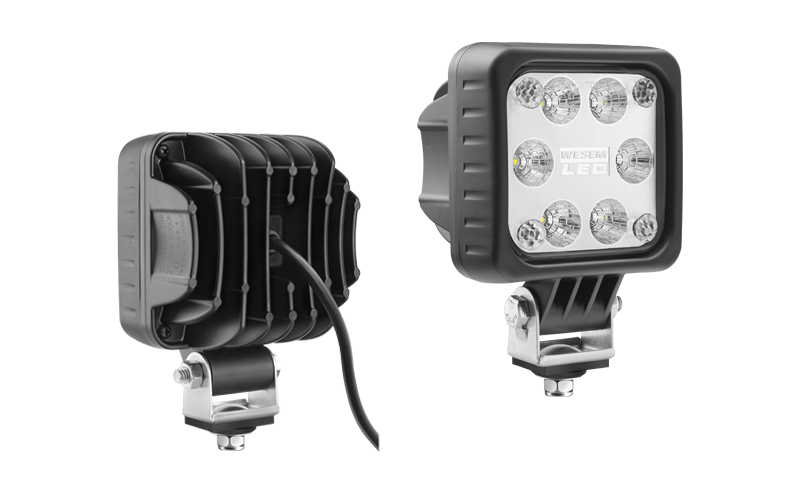

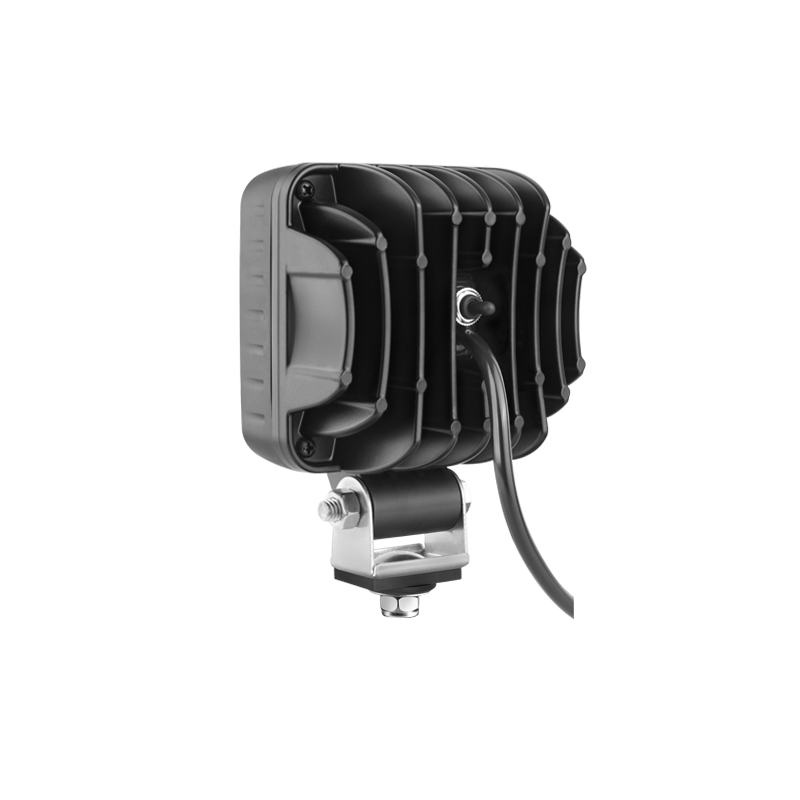

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	LEDXB.56400	4000 lm - LED module 12V-24V, cable 0,5 m Part number: LEDXB.56400 Quantity: carton box/1		carton box/1
	LED9C.53900	3000 lm - LED module 12V-24V, cable 0,5 m Part number: LED9C.53900 Quantity: carton box/1		carton box/1
	LED8F.51000	2500 lm - LED module 12V-24V, cable 0,5 m Part number: LED8F.51000 Quantity: carton box/1		carton box/1
	LED5F.47900	2000 lm - LED module 12V-24V, cable 0,5 m Part number: LED5F.47900 Quantity: carton box/1		carton box/1
	LED4F.47800	1500 lm - LED module 12V-24V, cable 0,5 m Part number: LED4F.47800 Quantity: carton box/1		carton box/1
	LED4F.47801	1500 lm - LED module 12V-24V, cable 1 m Part number: LED4F.47801 Quantity: carton box/1		carton box/1
	LED4F.47840	1500 lm - LED module 12V-48V, cable 0,5 m Part number: LED4F.47840 Quantity: carton box/1		carton box/1
	LEDXB.56401	4000 lm - LED module 12V-24V, cable 0,5 m Part number: LEDXB.56401 Quantity: carton box/1		carton box/1
	LED9C.53902	3000 lm - LED module 12V-24V, cable 0,5 m Part number: LED9C.53902 Quantity: carton box/1		carton box/1
	LED8F.51003	2500 lm - LED module 12V-24V, cable 0,5 m Part number: LED8F.51003 Quantity: carton box/1		carton box/1
	LED5F.47901	2000 lm - LED module 12V-24V, cable 0,5 m Part number: LED5F.47901 Quantity: carton box/1		carton box/1
	LED4F.47804	1500 lm - LED module 12V-24V, cable 0,5 m Part number: LED4F.47804 Quantity: carton box/1		carton box/1

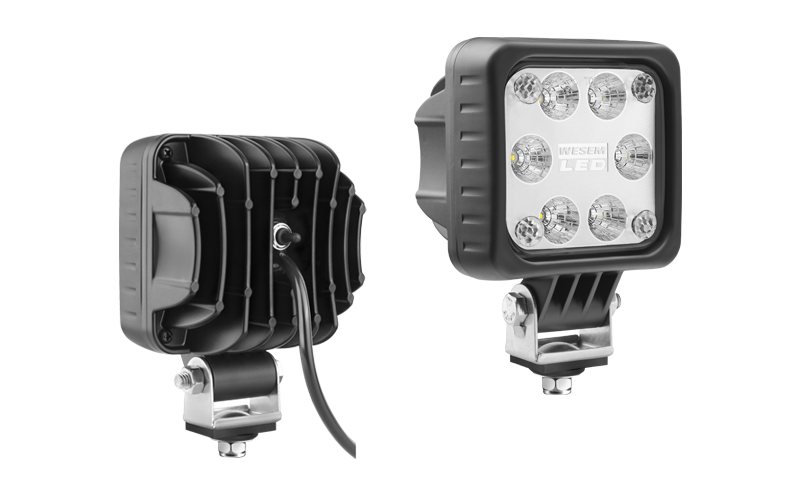

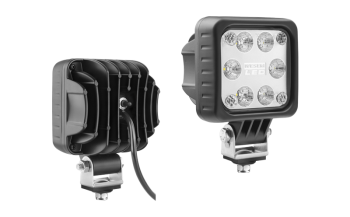

LED work lamp with cable and switch

LED work lamp with cable and switch

LED work lamp with cable and switch

Compare	Part number	Equipment		Quantity
	LED9C.53980	3000 lm - LED module 12V-24V, cable 0,5 m Part number: LED9C.53980 Quantity: carton box/1		carton box/1
	LED8F.51080	2500 lm - LED module 12V-24V, cable 0,5 m Part number: LED8F.51080 Quantity: carton box/1		carton box/1
	LED5F.47980	2000 lm - LED module 12V-24V, cable 0,5 m Part number: LED5F.47980 Quantity: carton box/1		carton box/1
	LED4F.47880	1500 lm - LED module 12V-24V, cable 0,5 m Part number: LED4F.47880 Quantity: carton box/1		carton box/1
	LED4F.47884	1500 lm - LED module 12V-48V, cable 0,5 m Part number: LED4F.47884 Quantity: carton box/1		carton box/1

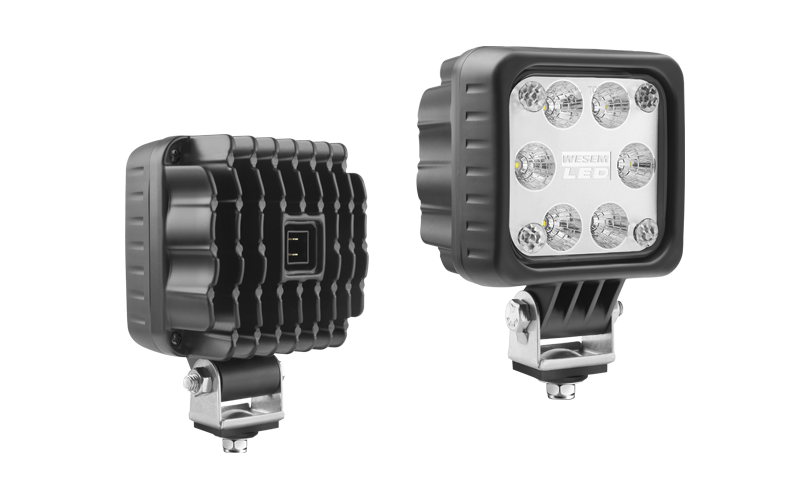

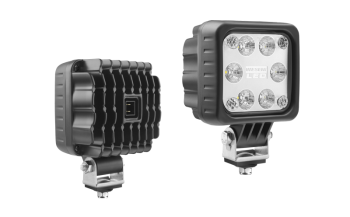

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	LED9C.53906	3000 lm - LED module 12V-24V Part number: LED9C.53906 Quantity: carton box/1		carton box/1
	LED8F.51006	2500 lm - LED module 12V-24V Part number: LED8F.51006 Quantity: carton box/1		carton box/1
	LED5F.47906	2000 lm - LED module 12V-24V Part number: LED5F.47906 Quantity: carton box/1		carton box/1
	LED4F.47806	1500 lm - LED module 12V-24V Part number: LED4F.47806 Quantity: carton box/1		carton box/1
	LED4F.47846	1500 lm - LED module 12V-48V Part number: LED4F.47846 Quantity: carton box/1		carton box/1

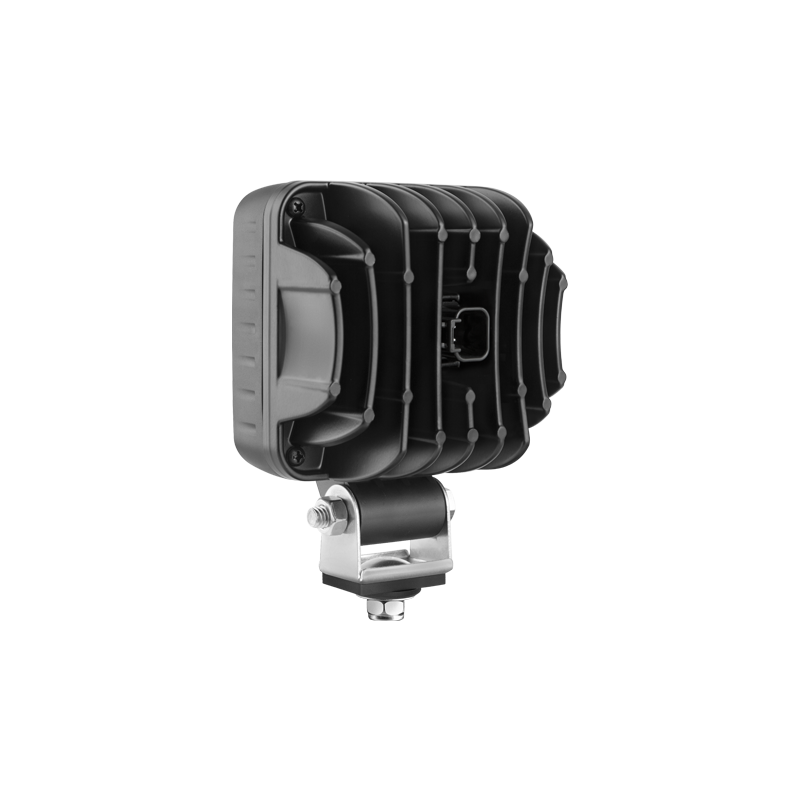

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	LEDXB.56407	4000 lm - LED module 12V-24V Part number: LEDXB.56407 Quantity: carton box/1		carton box/1
	LED9C.53907	3000 lm - LED module 12V-24V Part number: LED9C.53907 Quantity: carton box/1		carton box/1
	LED8F.51007	2500 lm - LED module 12V-24V Part number: LED8F.51007 Quantity: carton box/1		carton box/1
	LED5F.47907	2000 lm - LED module 12V-24V Part number: LED5F.47907 Quantity: carton box/1		carton box/1
	LED4F.47807	1500 lm - LED module 12V-24V Part number: LED4F.47807 Quantity: carton box/1		carton box/1
	LED4F.47847	1500 lm - LED module 12V-48V Part number: LED4F.47847 Quantity: carton box/1		carton box/1
	LEDXB.56408	4000 lm - LED module 12V-24V Part number: LEDXB.56408 Quantity: carton box/1		carton box/1
	LED9C.53909	3000 lm - LED module 12V-24V Part number: LED9C.53909 Quantity: carton box/1		carton box/1
	LED8F.51011	2500 lm - LED module 12V-24V Part number: LED8F.51011 Quantity: carton box/1		carton box/1
	LED5F.47909	2000 lm - LED module 12V-24V Part number: LED5F.47909 Quantity: carton box/1		carton box/1
	LED4F.47809	1500 lm - LED module 12V-24V Part number: LED4F.47809 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	LED9C.53908	3000 lm - LED module 12V-24V Part number: LED9C.53908 Quantity: carton box/1		carton box/1
	LED8F.51008	2500 lm - LED module 12V-24V Part number: LED8F.51008 Quantity: carton box/1		carton box/1
	LED5F.47908	2000 lm - LED module 12V-24V Part number: LED5F.47908 Quantity: carton box/1		carton box/1
	LED4F.47808	1500 lm - LED module 12V-24V Part number: LED4F.47808 Quantity: carton box/1		carton box/1
	LED4F.47848	1500 lm - LED module 12V-48V Part number: LED4F.47848 Quantity: carton box/1		carton box/1

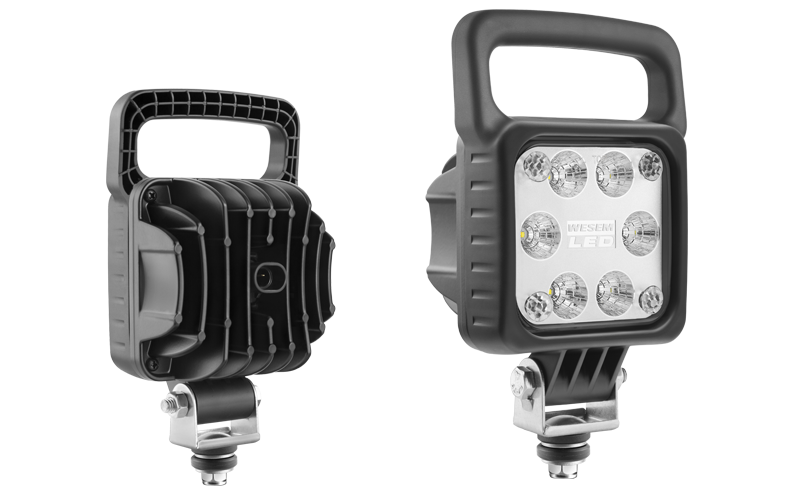

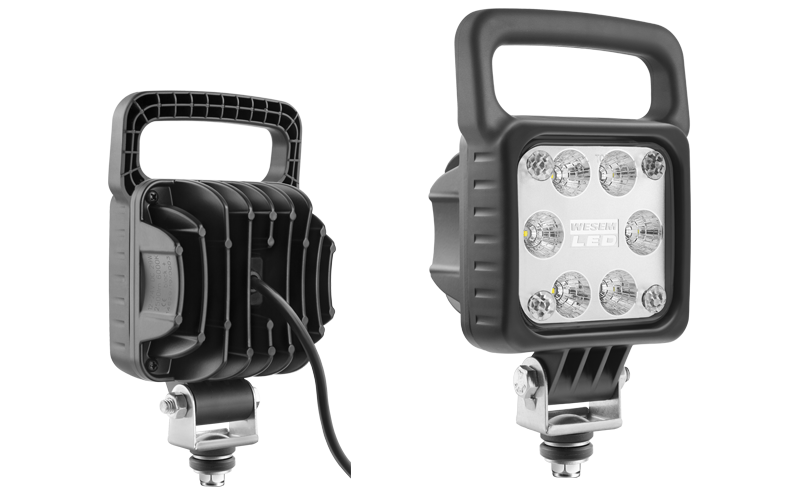

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity

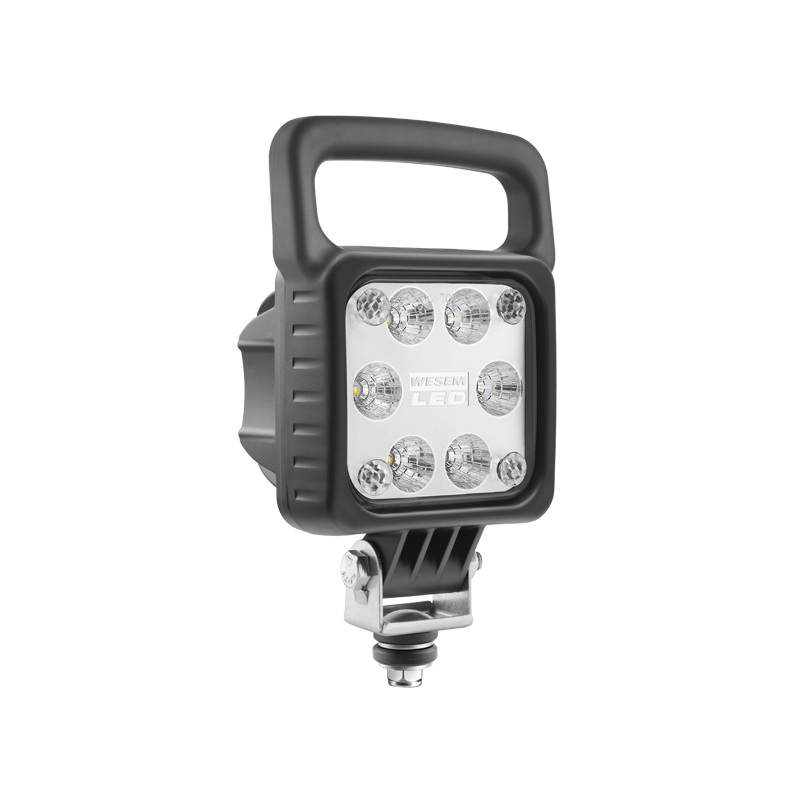

	LED9C.53910	3000 lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED9C.53910 Quantity: carton box/1		carton box/1
	LED8F.51010	2500 lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED8F.51010 Quantity: carton box/1		carton box/1
	LED5F.47910	2000 lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED5F.47910 Quantity: carton box/1		carton box/1
	LED4F.47810	1500 lm - LED module 12V-24V, cable 0,5 m, handle Part number: LED4F.47810 Quantity: carton box/1		carton box/1
	LED4F.47850	1500 lm - LED module 12V-48V, cable 0,5 m, handle Part number: LED4F.47850 Quantity: carton box/1		carton box/1

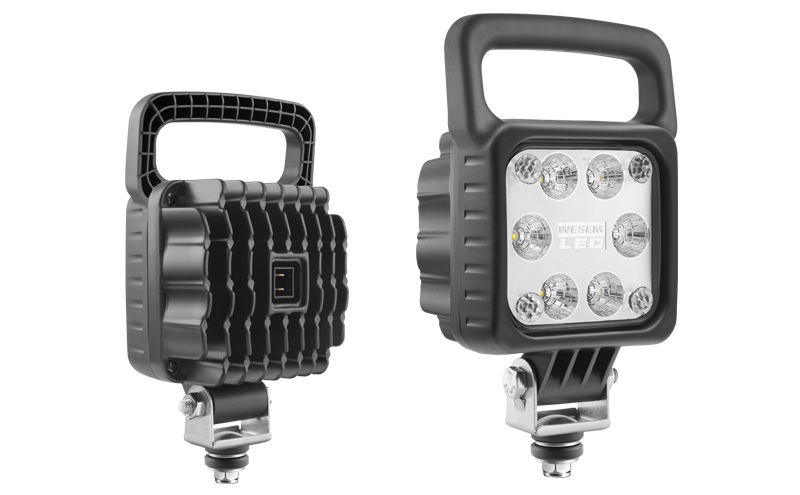

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	LED9C.53916	3000 lm - LED module 12V-24V, handle Part number: LED9C.53916 Quantity: carton box/1		carton box/1
	LED8F.51016	2500 lm - LED module 12V-24V, handle Part number: LED8F.51016 Quantity: carton box/1		carton box/1
	LED5F.47916	2000 lm - LED module 12V-24V, handle Part number: LED5F.47916 Quantity: carton box/1		carton box/1
	LED4F.47816	1500 lm - LED module 12V-24V, handle Part number: LED4F.47816 Quantity: carton box/1		carton box/1
	LED4F.47856	1500 lm - LED module 12V-48V, handle Part number: LED4F.47856 Quantity: carton box/1		carton box/1

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	LED9C.53917	3000 lm - LED module 12V-24V, handle Part number: LED9C.53917 Quantity: carton box/1		carton box/1
	LED8F.51017	2500 lm - LED module 12V-24V, handle Part number: LED8F.51017 Quantity: carton box/1		carton box/1
	LED5F.47917	2000 lm - LED module 12V-24V, handle Part number: LED5F.47917 Quantity: carton box/1		carton box/1
	LED4F.47817	1500 lm - LED module 12V-24V, handle Part number: LED4F.47817 Quantity: carton box/1		carton box/1
	LED4F.47857	1500 lm - LED module 12V-48V, handle Part number: LED4F.47857 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	LED9C.53918	3000 lm - LED module 12V-24V, handle Part number: LED9C.53918 Quantity: carton box/1		carton box/1
	LED8F.51018	2500 lm - LED module 12V-24V, handle Part number: LED8F.51018 Quantity: carton box/1		carton box/1
	LED5F.47918	2000 lm - LED module 12V-24V, handle Part number: LED5F.47918 Quantity: carton box/1		carton box/1
	LED4F.47818	1500 lm - LED module 12V-24V, handle Part number: LED4F.47818 Quantity: carton box/1		carton box/1

Tube clamp adapter with AMP Faston connector

Tube clamp adapter with AMP Faston connector

Tube clamp adapter with AMP Faston connector

Compare	Part number	Equipment		Quantity
	CAR1.47300	for work lamps - cable 0,22 m, DIN 72591 connector Part number: CAR1.47300 Quantity: carton box/1		carton box/1

Tube clamp adapter with Deutsch connector

Tube clamp adapter with Deutsch connector

Tube clamp adapter with Deutsch connector

Compare	Part number	Equipment		Quantity
	CAR1.47301	for work lamps - cable 0,22 m, DIN 72591 connector, DT06-2S connector Part number: CAR1.47301 Quantity: carton box/1		carton box/1

On-pipe holder Ø15÷28 mm

On-pipe holder Ø15÷28 mm

On-pipe holder Ø15÷28 mm

Compare	Part number	Equipment		Quantity
	CAR2.49100	for work lamps Part number: CAR2.49100 Quantity: carton box/1		carton box/1

On-pipe holder Ø15÷28 mm with 3D adjustment

On-pipe holder Ø15÷28 mm with 3D adjustment

On-pipe holder Ø15÷28 mm with 3D adjustment

Compare	Part number	Equipment		Quantity
	CAR2.49110	for work lamps Part number: CAR2.49110 Quantity: carton box/1		carton box/1

Bracket compatible with DIN14640 (for pipe Ø30)

Bracket compatible with DIN14640 (for pipe Ø30)

Bracket compatible with DIN14640 (for pipe Ø30)

Compare	Part number	Equipment		Quantity
	CAR3.50600	for work lamps Part number: CAR3.50600 Quantity: carton box/1		carton box/1

Suction cup holder Ø87

Suction cup holder Ø87

Suction cup holder Ø87

Compare	Part number	Equipment		Quantity
	CAR5.55600	for work lamps Part number: CAR5.55600 Quantity: carton box/1		carton box/1
