WESEM
Dimensions 245x110x124, 245x110x156
Light functions passing, driving, position, direction indicator
Traffic right-hand
Maximum power 75/70W, 5W, 21W
Light source H4, W5W, P21W
Supply voltage 12V-24V DC
IP rating IP55
Homologation E20
Reference mark 12.5
  Catalogue page

Product versions

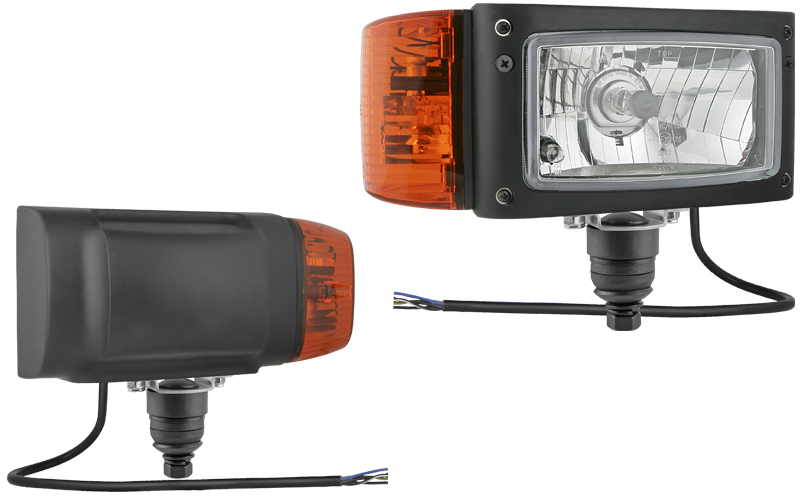

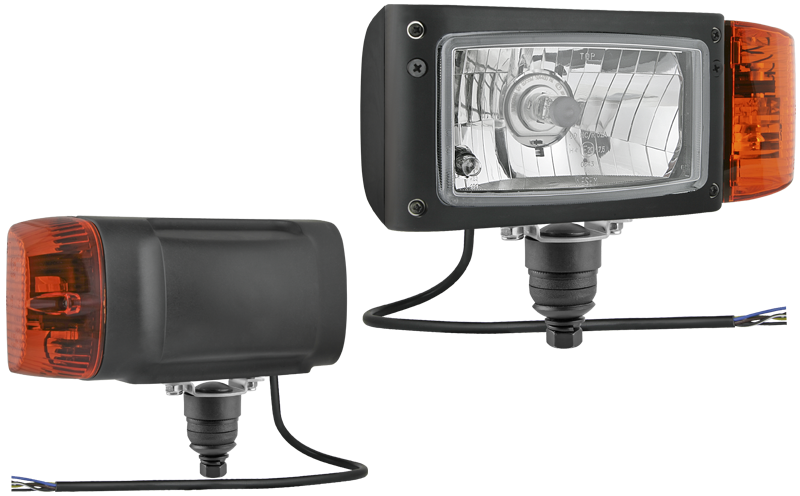

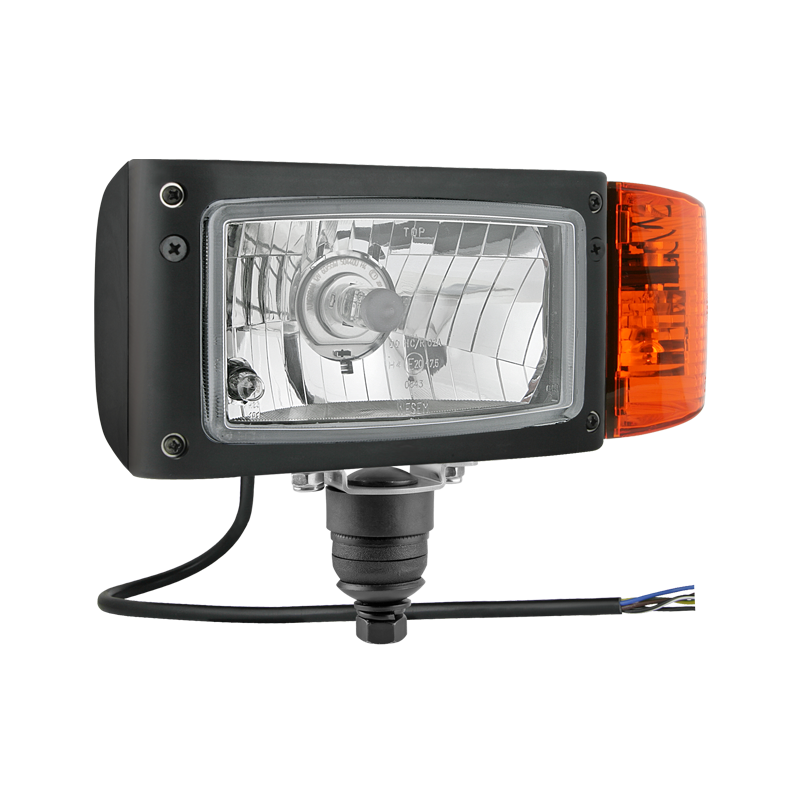

Headlamp, H4 type, with bottom mounting and cable - right

Equipment
without bulbs, cable 3 m
bulb H4 12V, bulb P21W 12V, bulb W5W, cable 3 m
bulb H4 24V, bulb P21W 24V, bulb W5W, cable 3 m

Headlamp, H4 type, with bottom mounting and cable - left

Equipment
without bulbs, cable 3 m
bulb H4 12V, bulb P21W 12V, bulb W5W, cable 3 m
bulb H4 24V, bulb P21W 24V, bulb W5W, cable 3 m

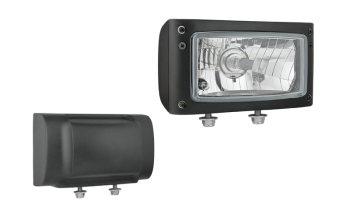

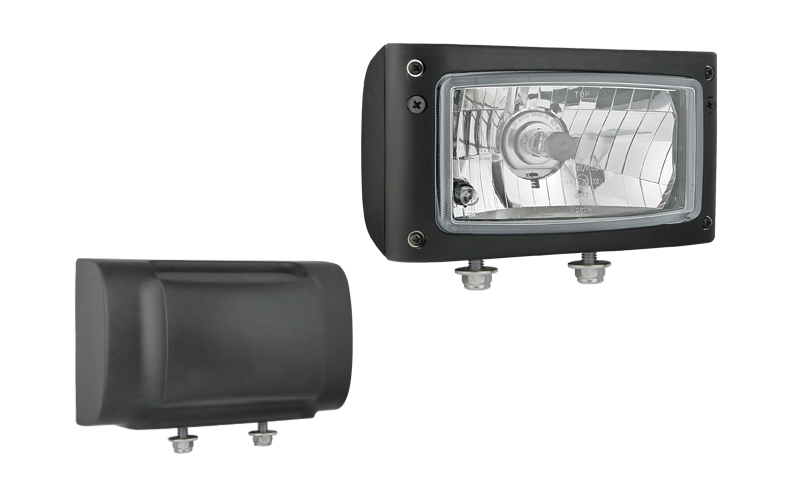

Headlamp, H4 type, with built-in DT04-6P connector (lights: passing, driving, position)

Equipment
K1B, bulb H4 12V, bulb W5W

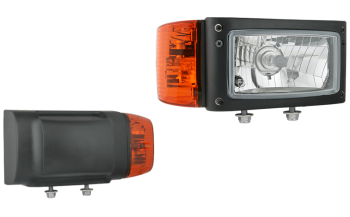

Headlamp, H4 type, with built-in DT04-6P connector - right

Equipment
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W, DT06-6S connector
K1A, bulb H4 24V, bulb P21W 24V, bulb W5W

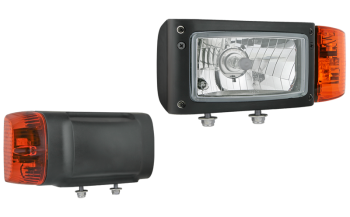

Headlamp, H4 type, with built-in DT04-6P connector - left

Equipment
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W, DT06-6S connector
K1A, bulb H4 24V, bulb P21W 24V, bulb W5W

Headlamp, H4 type, with cable and DT04-6P connector - right

Equipment
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K1A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m

Headlamp, H4 type, with cable and DT04-6P connector - left

Equipment
K1A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K1A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m

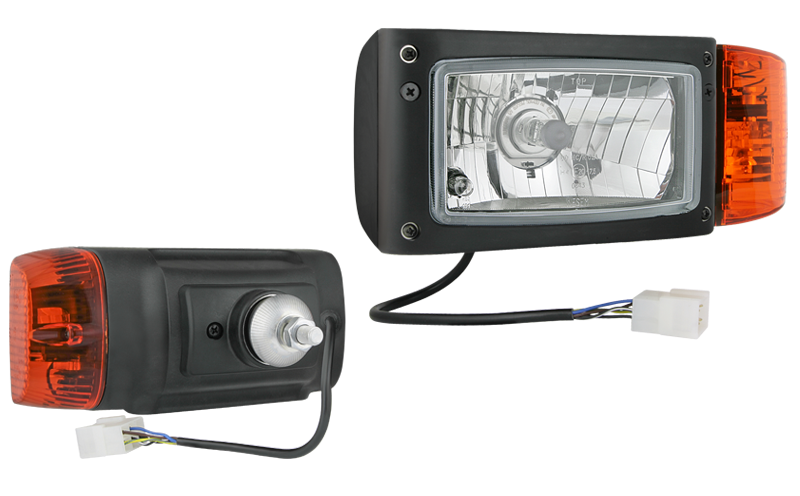

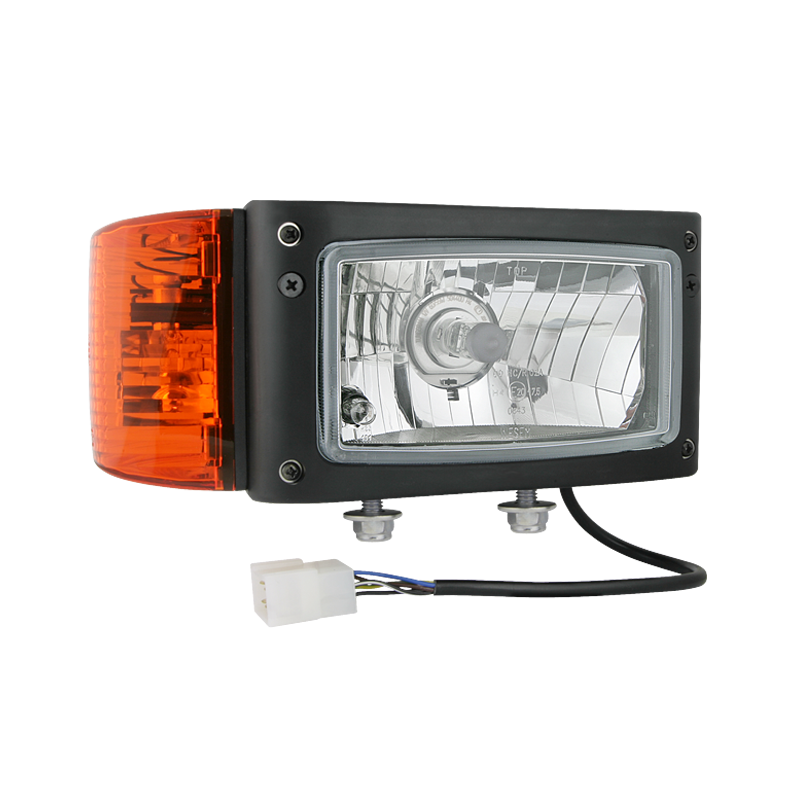

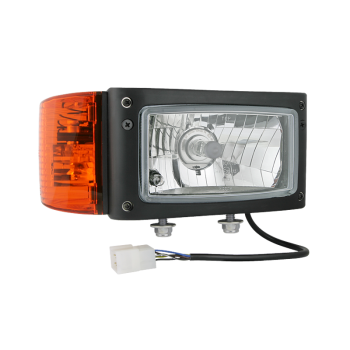

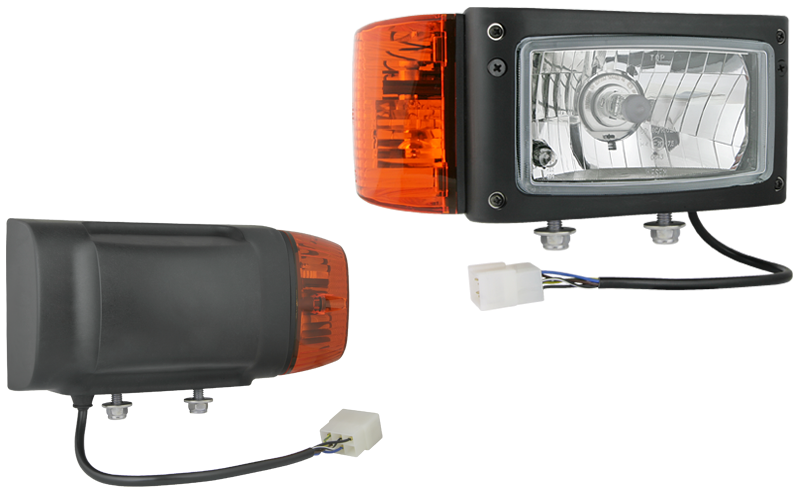

Headlamp, H4 type, with cable and AMP connector - right

Equipment
K6A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K6A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m

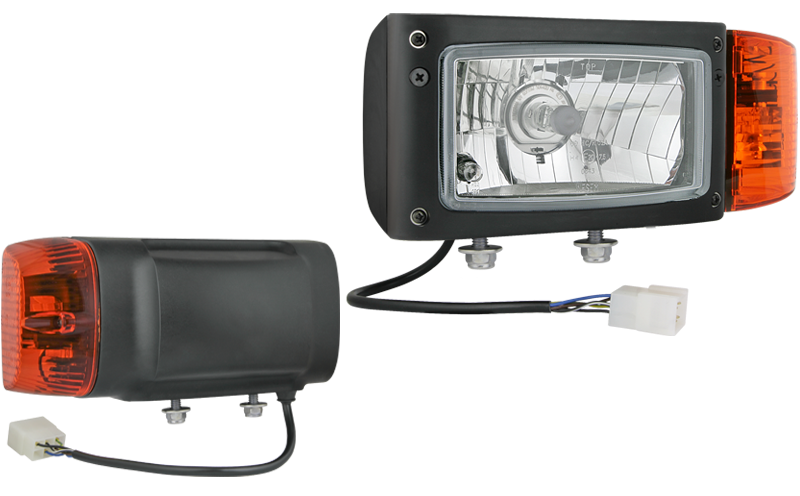

Headlamp, H4 type, with cable and AMP connector - left

Equipment
K6A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K6A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m

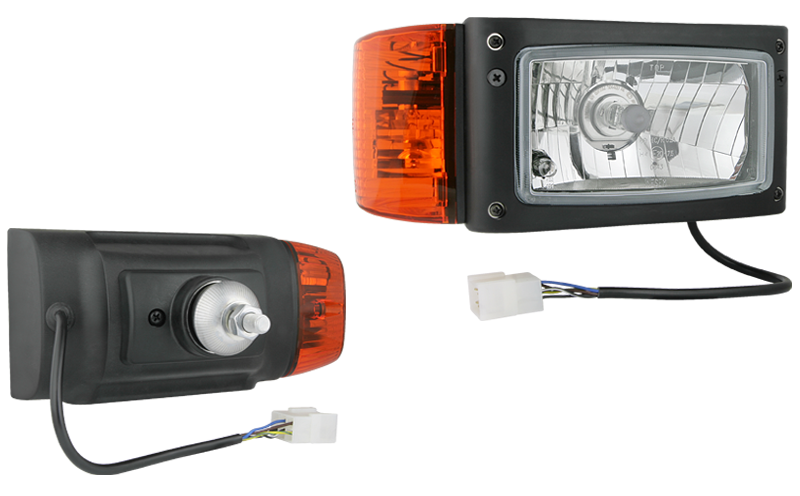

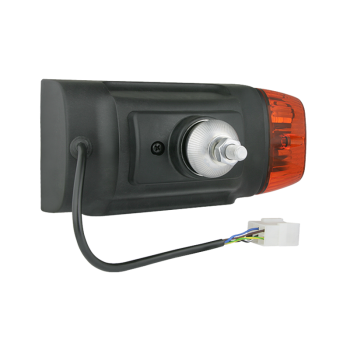

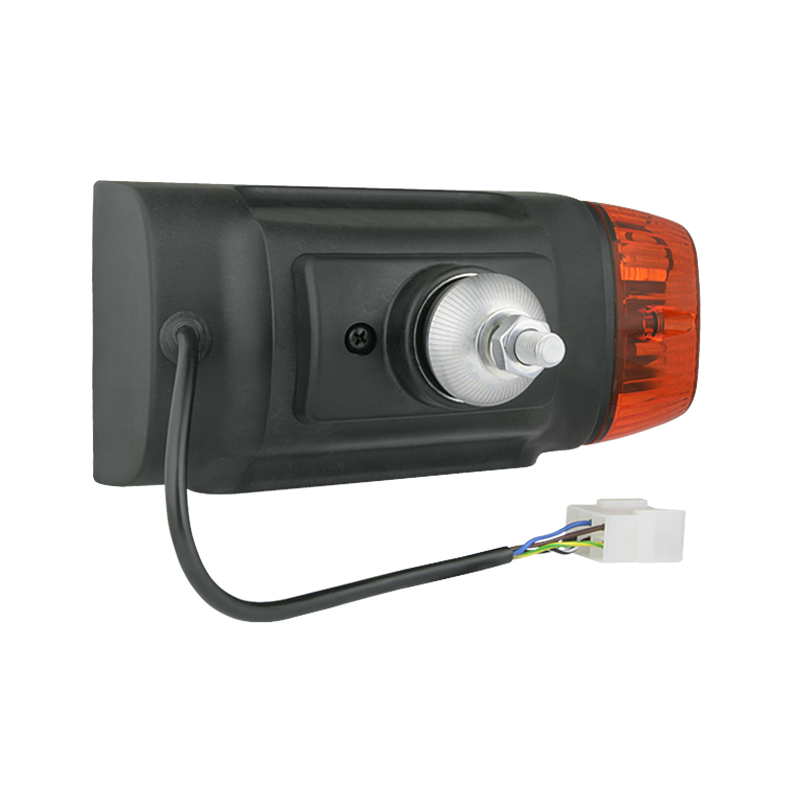

Headlamp, H4 type, with rear mounting, cable and AMP connector - right

Equipment
K6A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K6A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m

Headlamp, H4 type, with rear mounting, cable and AMP connector - left

Equipment
K6A, bulb H4 12V, bulb P21W 12V, bulb W5W, cable 0,25 m
K6A, bulb H4 24V, bulb P21W 24V, bulb W5W, cable 0,25 m
