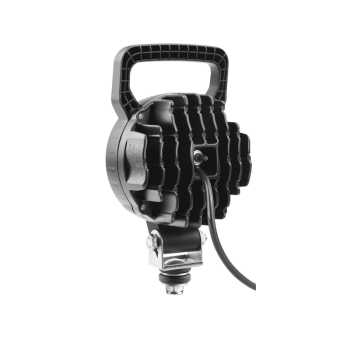

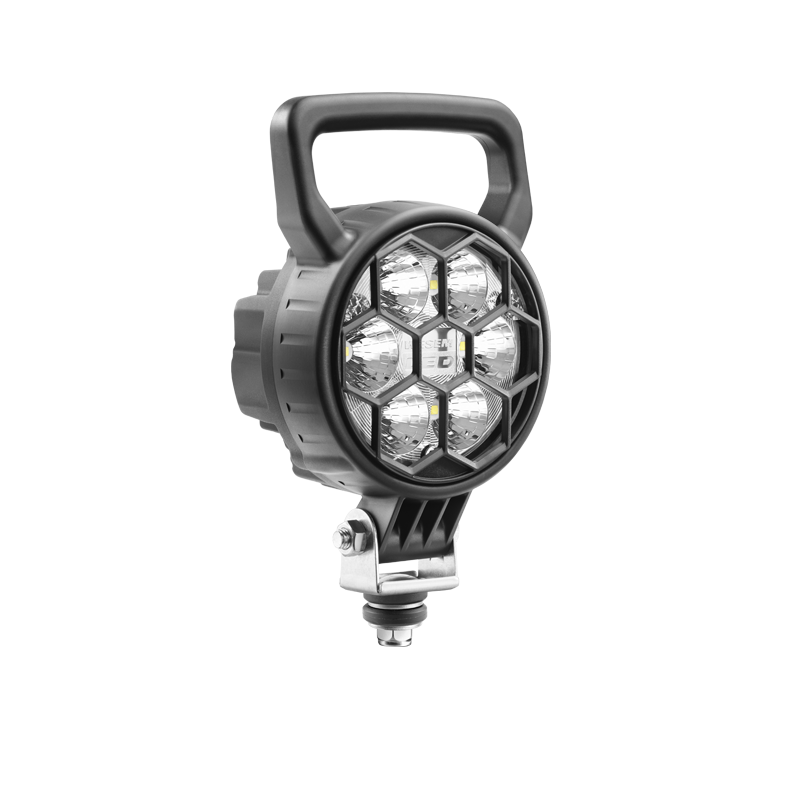

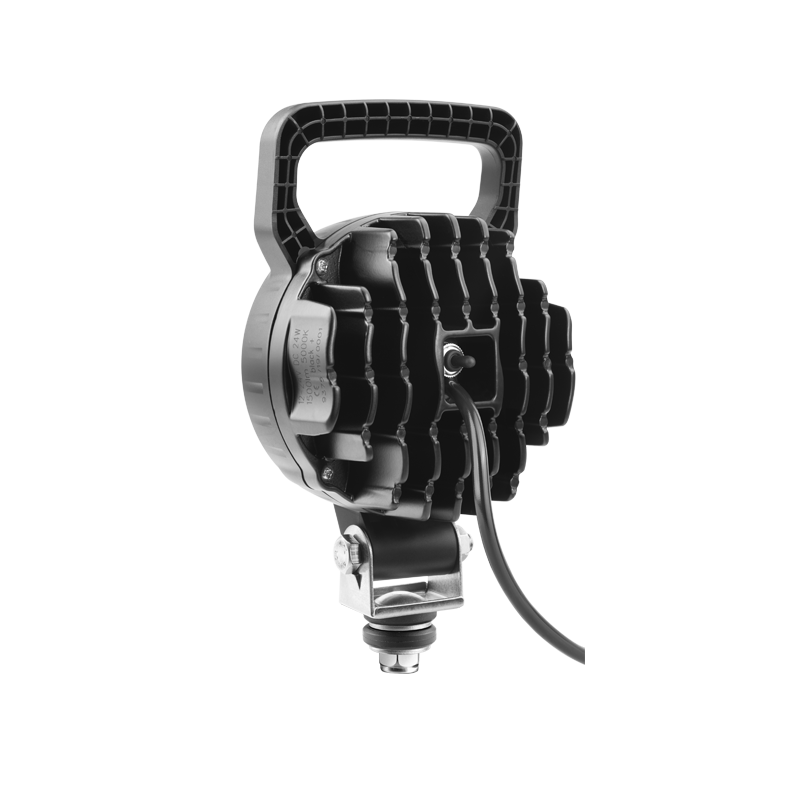

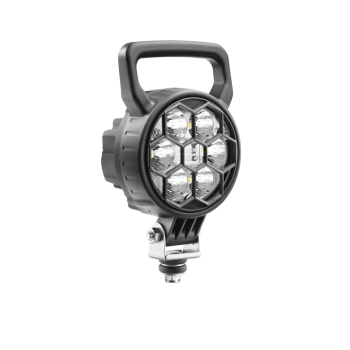

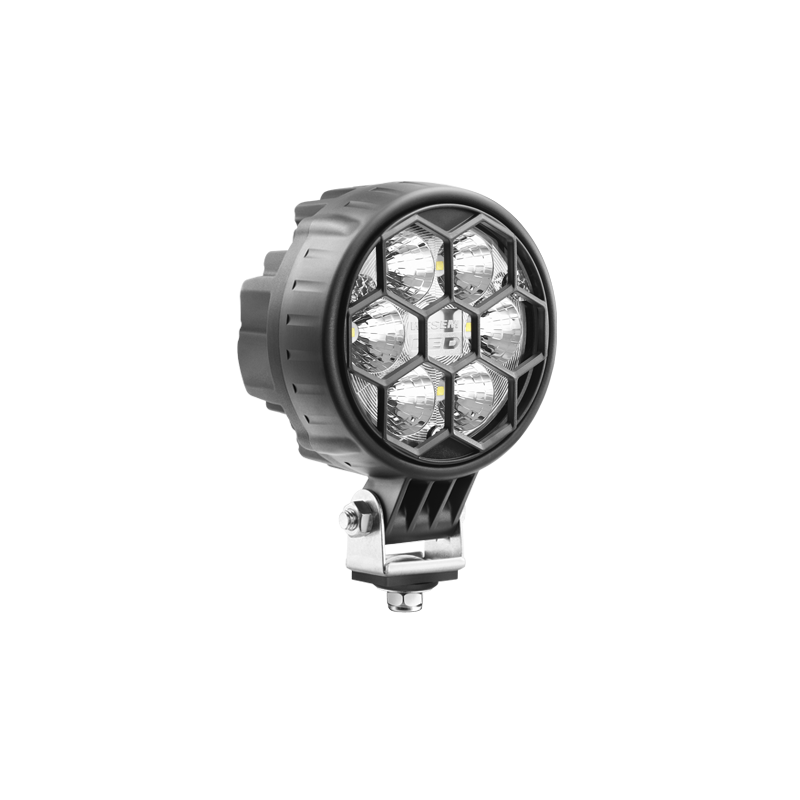

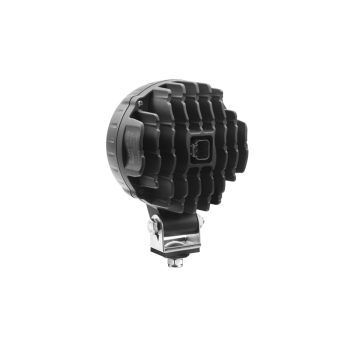

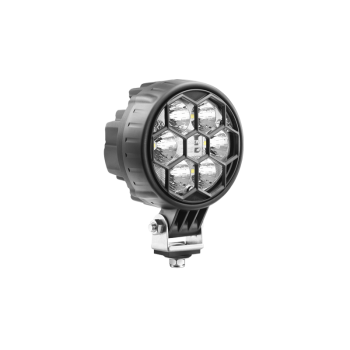

CRC3-FF 4° LED work lamps with standard bracket

CRC3-FF 4° LED work lamps with standard bracket

CRC3-FF 4° LED work lamps with standard bracket

CRC3-FF 4° LED work lamps with standard bracket

CRC3-FF 4° LED work lamps with standard bracket

Dimensions	Ø117x74
Light functions	work light
Maximum power	30W, 29W, 25W, 24W
Light source	6 x LED
Supply voltage	12V-24V DC
Luminous flux	3000 lm, 2500 lm, 2000 lm, 1500 lm
Beam angle	4°
Beam type	focused beam
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC3J.57000	3000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3J.57000 Quantity: carton box/1		carton box/1
	CRC3F.50400	2500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3F.50400 Quantity: carton box/1		carton box/1
	CRC3D.50200	2000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3D.50200 Quantity: carton box/1		carton box/1
	CRC3B.49200	1500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3B.49200 Quantity: carton box/1		carton box/1

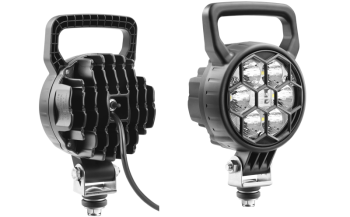

LED work lamp with cable and switch

LED work lamp with cable and switch

LED work lamp with cable and switch

Compare	Part number	Equipment		Quantity
	CRC3F.50480	2500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3F.50480 Quantity: carton box/1		carton box/1
	CRC3D.50280	2000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3D.50280 Quantity: carton box/1		carton box/1
	CRC3B.49280	1500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3B.49280 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRC3F.50406	2500lm - LED module 12V-24V, stone guard Part number: CRC3F.50406 Quantity: carton box/1		carton box/1
	CRC3D.50206	2000lm - LED module 12V-24V, stone guard Part number: CRC3D.50206 Quantity: carton box/1		carton box/1
	CRC3B.49206	1500lm - LED module 12V-24V, stone guard Part number: CRC3B.49206 Quantity: carton box/1		carton box/1

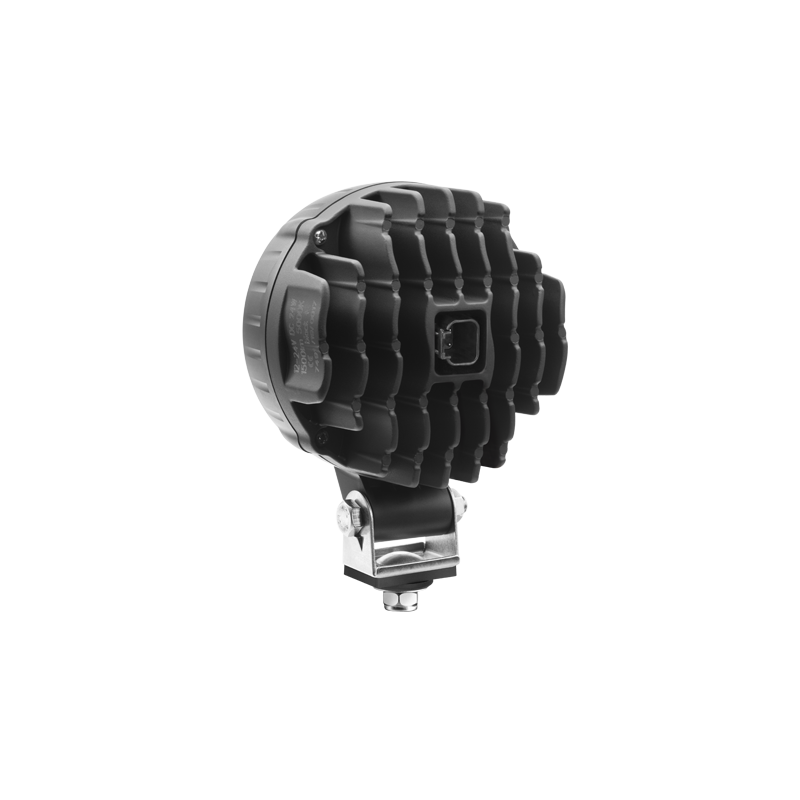

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC3J.57007	3000lm - LED module 12V-24V, stone guard Part number: CRC3J.57007 Quantity: carton box/1		carton box/1
	CRC3F.50407	2500lm - LED module 12V-24V, stone guard Part number: CRC3F.50407 Quantity: carton box/1		carton box/1
	CRC3D.50207	2000lm - LED module 12V-24V, stone guard Part number: CRC3D.50207 Quantity: carton box/1		carton box/1
	CRC3B.49207	1500lm - LED module 12V-24V, stone guard Part number: CRC3B.49207 Quantity: carton box/1		carton box/1

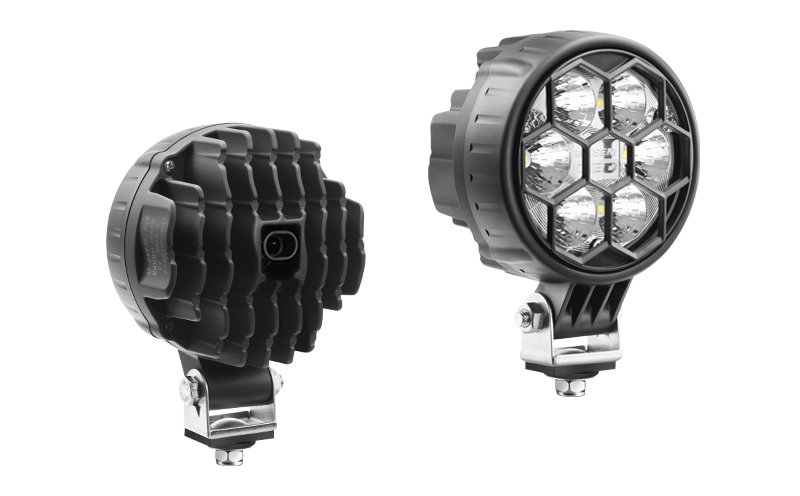

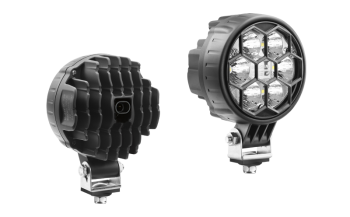

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC3F.50408	2500lm - LED module 12V-24V, stone guard Part number: CRC3F.50408 Quantity: carton box/1		carton box/1
	CRC3D.50208	2000lm - LED module 12V-24V, stone guard Part number: CRC3D.50208 Quantity: carton box/1		carton box/1
	CRC3B.49208	1500lm - LED module 12V-24V, stone guard Part number: CRC3B.49208 Quantity: carton box/1		carton box/1

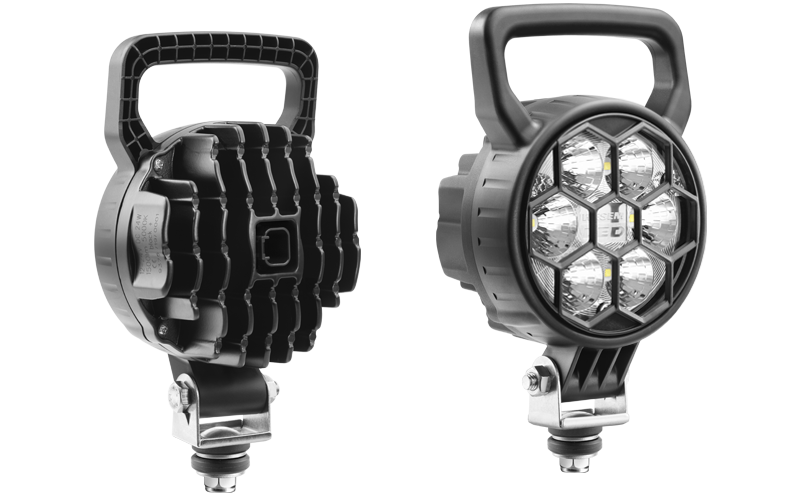

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC3F.50410	2500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3F.50410 Quantity: carton box/1		carton box/1
	CRC3D.50210	2000lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3D.50210 Quantity: carton box/1		carton box/1
	CRC3B.49210	1500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3B.49210 Quantity: carton box/1		carton box/1

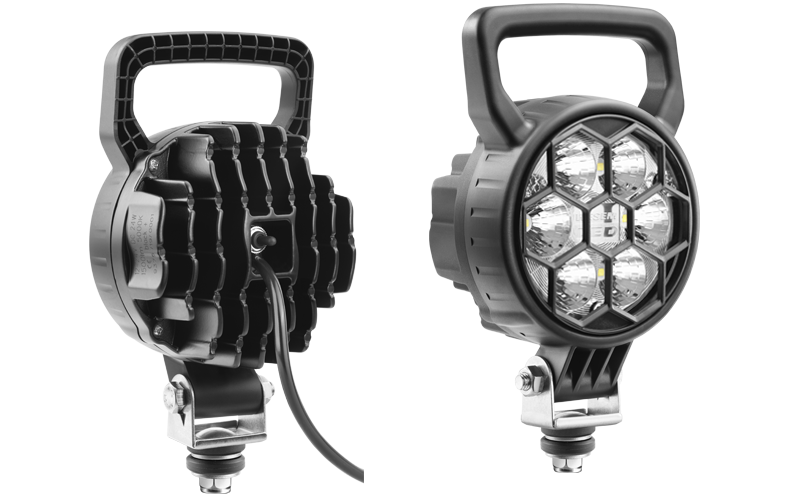

LED work lamp with cable and switch

LED work lamp with cable and switch

LED work lamp with cable and switch

Compare	Part number	Equipment		Quantity
	CRC3F.50481	2500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3F.50481 Quantity: carton box/1		carton box/1
	CRC3D.50281	2000lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3D.50281 Quantity: carton box/1		carton box/1
	CRC3B.49281	1500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3B.49281 Quantity: carton box/1		carton box/1

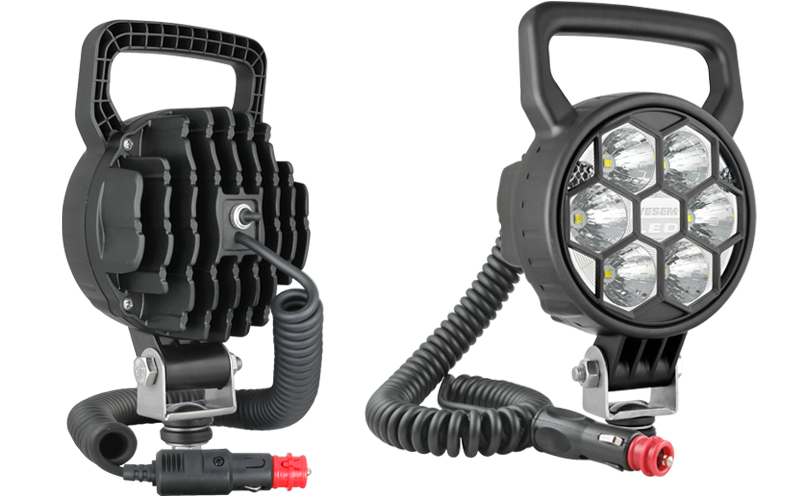

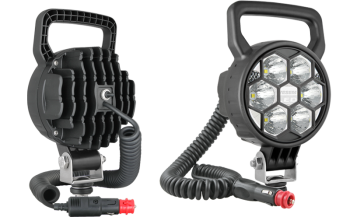

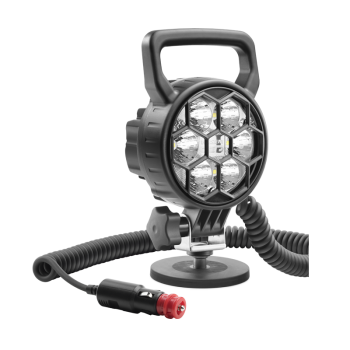

LED work lamp with spiral cable and switch

LED work lamp with spiral cable and switch

LED work lamp with spiral cable and switch

Compare	Part number	Equipment		Quantity
	CRC3F.50494	2500lm - LED module 12V-24V, spiral cable 8 m, cigarette lighter plug, stone guard, handle Part number: CRC3F.50494 Quantity: carton box/1		carton box/1

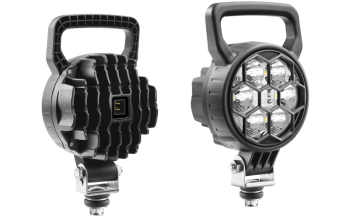

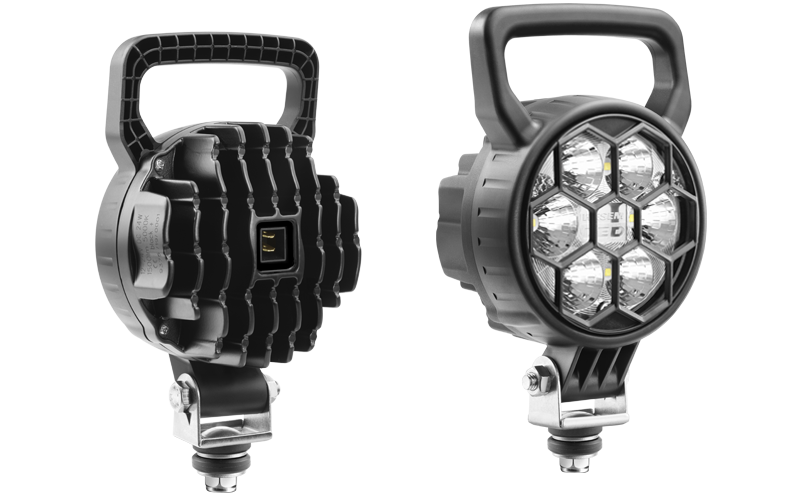

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRC3F.50416	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3F.50416 Quantity: carton box/1		carton box/1
	CRC3D.50216	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3D.50216 Quantity: carton box/1		carton box/1
	CRC3B.49216	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3B.49216 Quantity: carton box/1		carton box/1

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC3F.50417	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3F.50417 Quantity: carton box/1		carton box/1
	CRC3D.50217	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3D.50217 Quantity: carton box/1		carton box/1
	CRC3B.49217	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3B.49217 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC3F.50418	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3F.50418 Quantity: carton box/1		carton box/1
	CRC3D.50218	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3D.50218 Quantity: carton box/1		carton box/1
	CRC3B.49218	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3B.49218 Quantity: carton box/1		carton box/1
