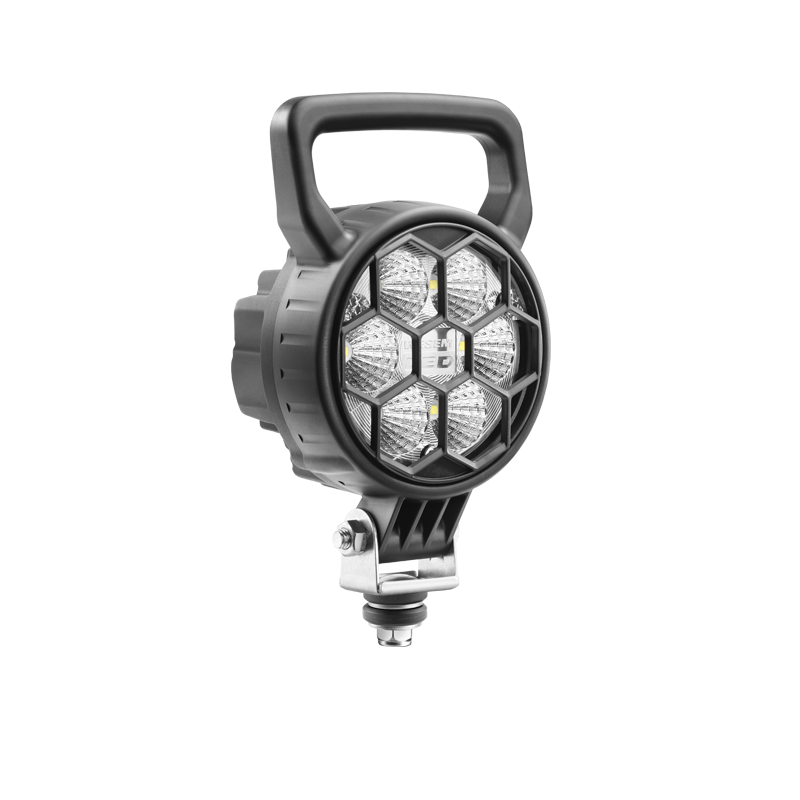

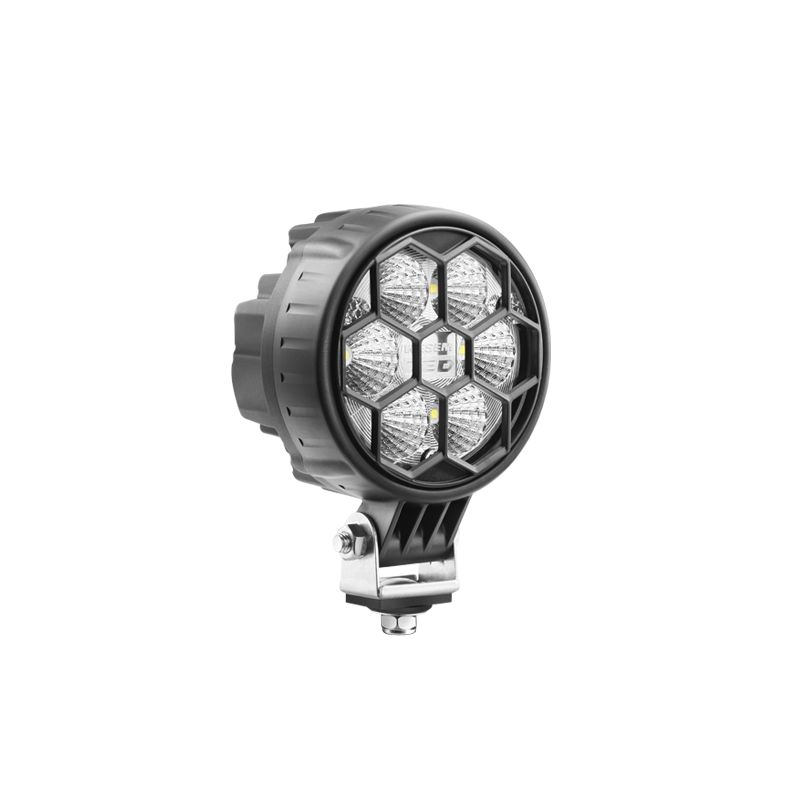

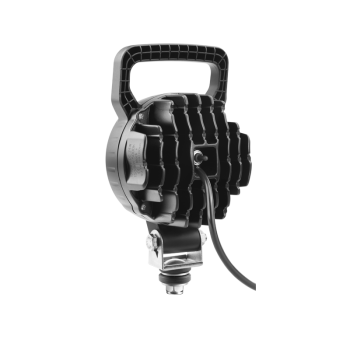

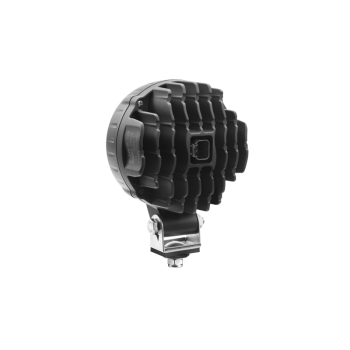

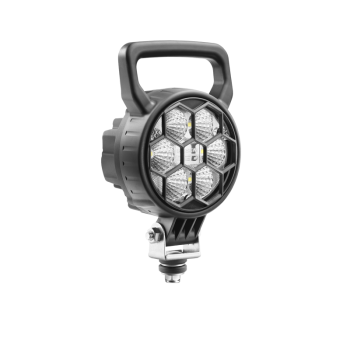

CRC3-FF 50° LED work lamps with standard bracket

CRC3-FF 50° LED work lamps with standard bracket

CRC3-FF 50° LED work lamps with standard bracket

CRC3-FF 50° LED work lamps with standard bracket

CRC3-FF 50° LED work lamps with standard bracket

Dimensions	Ø117x74
Light functions	work light
Maximum power	30W, 29W, 25W, 24W
Light source	6 x LED
Supply voltage	12V-24V DC
Luminous flux	3000 lm, 2500 lm, 2000 lm, 1500 lm
Beam angle	50°
Beam type	wide beam
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

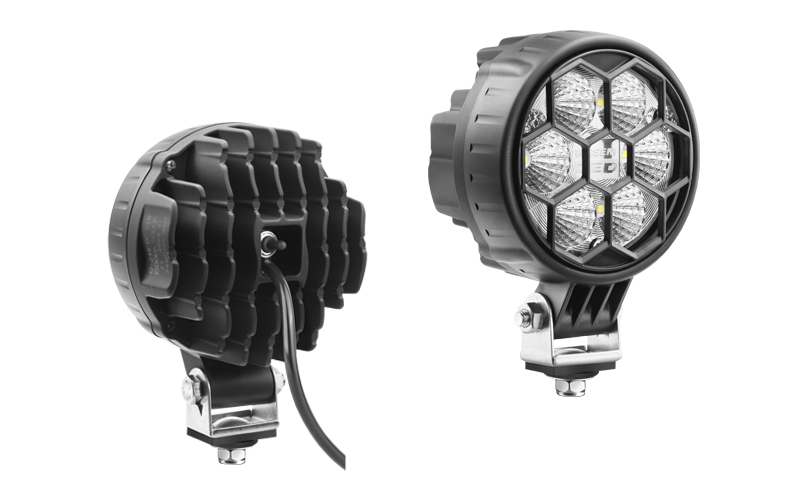

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC3H.56900	3000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3H.56900 Quantity: carton box/1		carton box/1
	CRC3E.50300	2500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3E.50300 Quantity: carton box/1		carton box/1
	CRC3C.50100	2000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3C.50100 Quantity: carton box/1		carton box/1
	CRC3A.48700	1500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3A.48700 Quantity: carton box/1		carton box/1
	CRC3A.48701	1500lm - LED module 12V-24V, cable 5 m, stone guard Part number: CRC3A.48701 Quantity: carton box/1		carton box/1

LED work lamp with cable and switch

LED work lamp with cable and switch

LED work lamp with cable and switch

Compare	Part number	Equipment		Quantity
	CRC3E.50380	2500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3E.50380 Quantity: carton box/1		carton box/1
	CRC3C.50180	2000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3C.50180 Quantity: carton box/1		carton box/1
	CRC3A.48780	1500lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3A.48780 Quantity: carton box/1		carton box/1

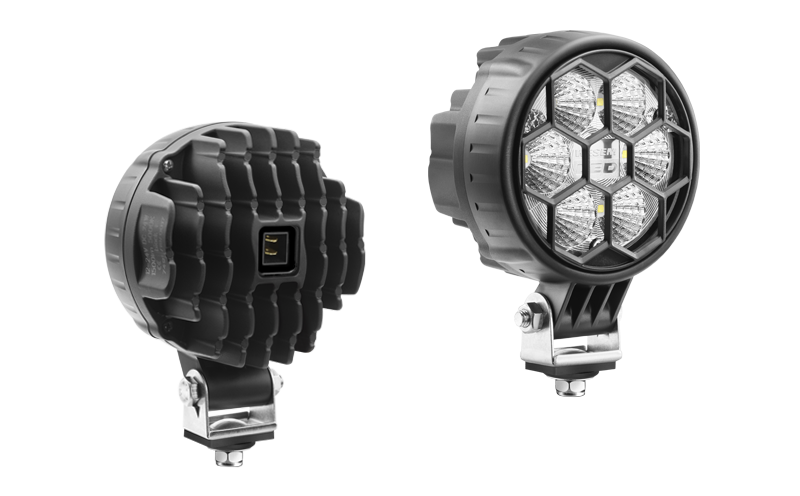

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRC3E.50306	2500lm - LED module 12V-24V, stone guard Part number: CRC3E.50306 Quantity: carton box/1		carton box/1
	CRC3C.50106	2000lm - LED module 12V-24V, stone guard Part number: CRC3C.50106 Quantity: carton box/1		carton box/1
	CRC3A.48706	1500lm - LED module 12V-24V, stone guard Part number: CRC3A.48706 Quantity: carton box/1		carton box/1

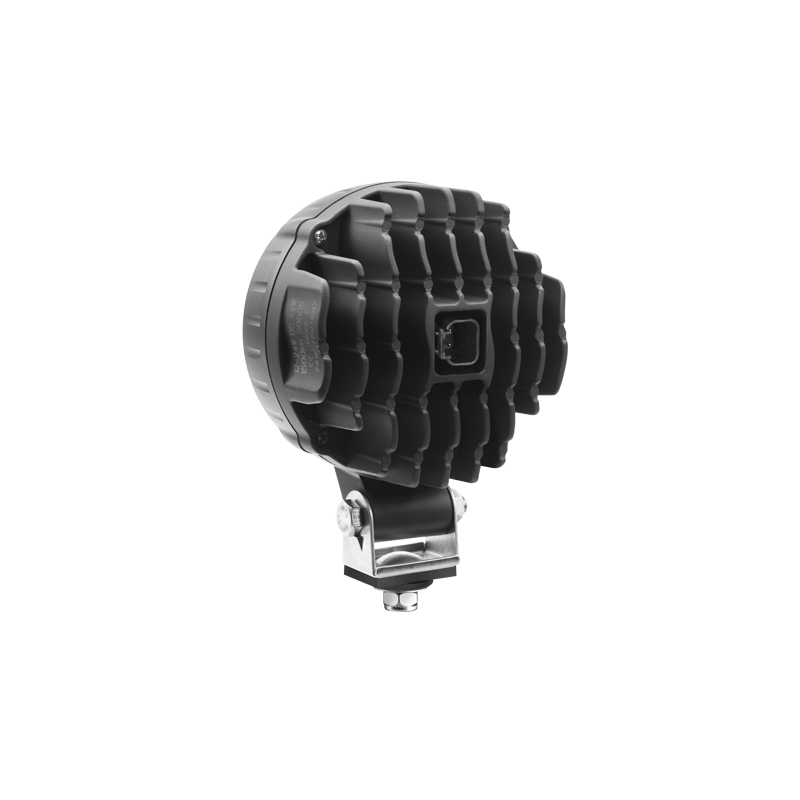

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC3H.56907	3000lm - LED module 12V-24V, stone guard Part number: CRC3H.56907 Quantity: carton box/1		carton box/1
	CRC3E.50307	2500lm - LED module 12V-24V, stone guard Part number: CRC3E.50307 Quantity: carton box/1		carton box/1
	CRC3C.50107	2000lm - LED module 12V-24V, stone guard Part number: CRC3C.50107 Quantity: carton box/1		carton box/1
	CRC3A.48707	1500lm - LED module 12V-24V, stone guard Part number: CRC3A.48707 Quantity: carton box/1		carton box/1

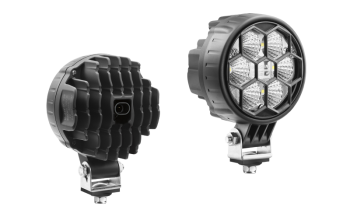

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC3E.50308	2500lm - LED module 12V-24V, stone guard Part number: CRC3E.50308 Quantity: carton box/1		carton box/1
	CRC3C.50108	2000lm - LED module 12V-24V, stone guard Part number: CRC3C.50108 Quantity: carton box/1		carton box/1
	CRC3A.48708	1500lm - LED module 12V-24V, stone guard Part number: CRC3A.48708 Quantity: carton box/1		carton box/1

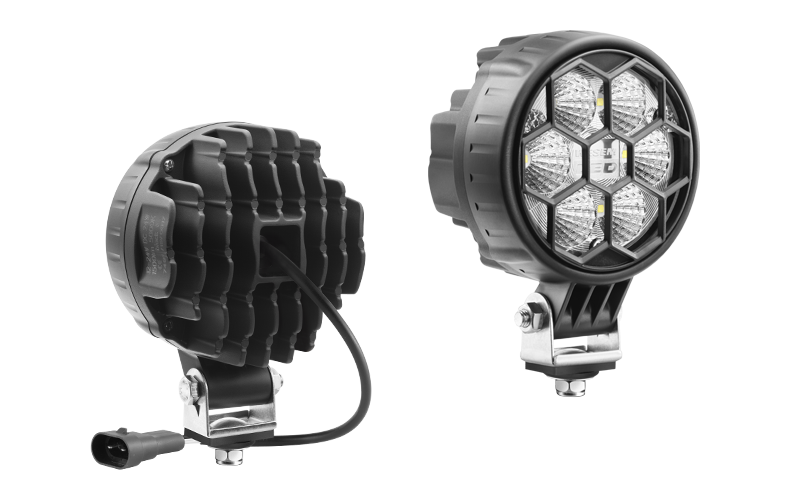

LED work lamp with cable and HB3 2P Cap connector

LED work lamp with cable and HB3 2P Cap connector

LED work lamp with cable and HB3 2P Cap connector

Compare	Part number	Equipment		Quantity
	CRC3H.56903	3000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3H.56903 Quantity: carton box/1		carton box/1

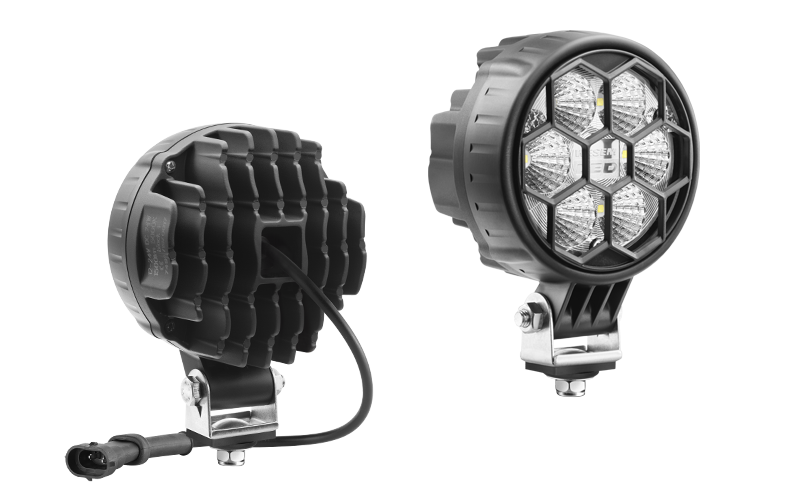

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

Compare	Part number	Equipment		Quantity
	CRC3H.56912	3000lm - LED module 12V-24V, cable 0,5 m, stone guard Part number: CRC3H.56912 Quantity: carton box/1		carton box/1

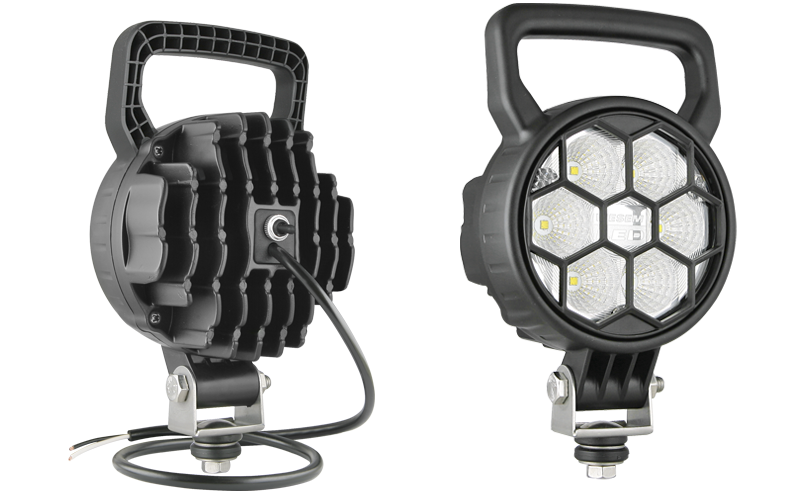

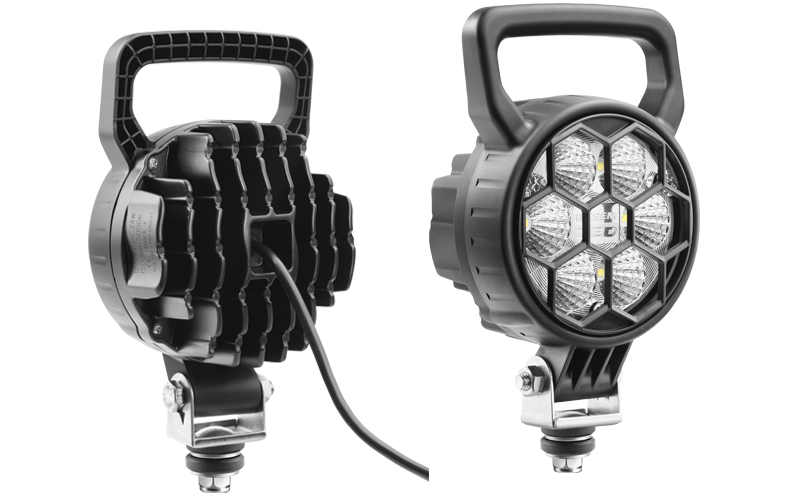

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC3E.50310	2500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3E.50310 Quantity: carton box/1		carton box/1
	CRC3C.50110	2000lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3C.50110 Quantity: carton box/1		carton box/1
	CRC3A.48710	1500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3A.48710 Quantity: carton box/1		carton box/1

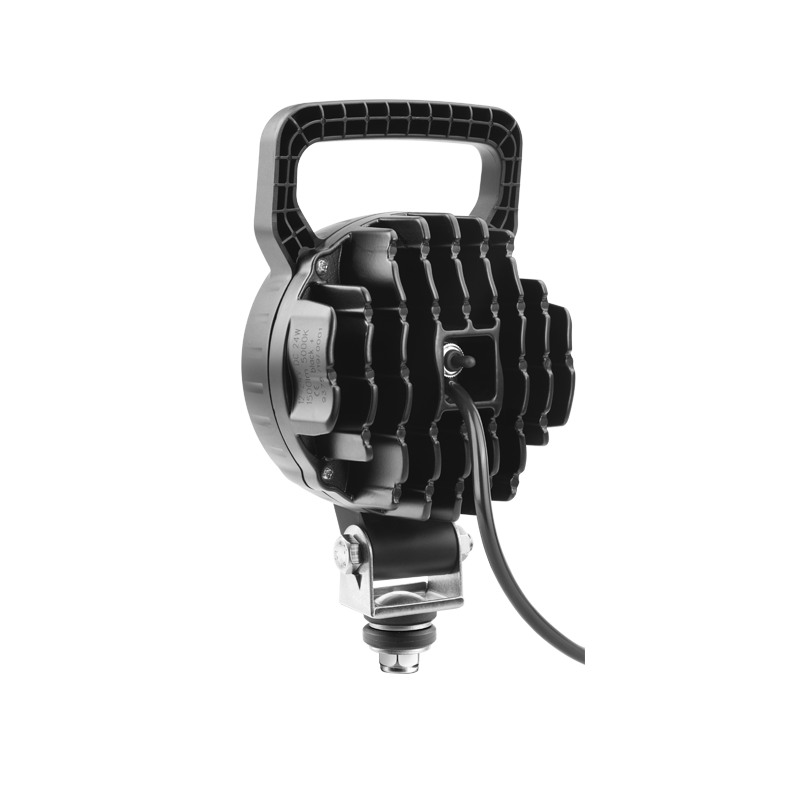

LED work lamp with cable and switch

LED work lamp with cable and switch

LED work lamp with cable and switch

Compare	Part number	Equipment		Quantity
	CRC3E.50381	2500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3E.50381 Quantity: carton box/1		carton box/1
	CRC3C.50181	2000lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3C.50181 Quantity: carton box/1		carton box/1
	CRC3A.48781	1500lm - LED module 12V-24V, cable 0,5 m, stone guard, handle Part number: CRC3A.48781 Quantity: carton box/1		carton box/1

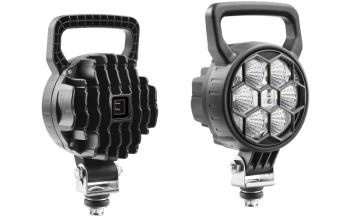

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRC3E.50316	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3E.50316 Quantity: carton box/1		carton box/1
	CRC3C.50116	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3C.50116 Quantity: carton box/1		carton box/1
	CRC3A.48716	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3A.48716 Quantity: carton box/1		carton box/1

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC3E.50317	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3E.50317 Quantity: carton box/1		carton box/1
	CRC3C.50117	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3C.50117 Quantity: carton box/1		carton box/1
	CRC3A.48717	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3A.48717 Quantity: carton box/1		carton box/1

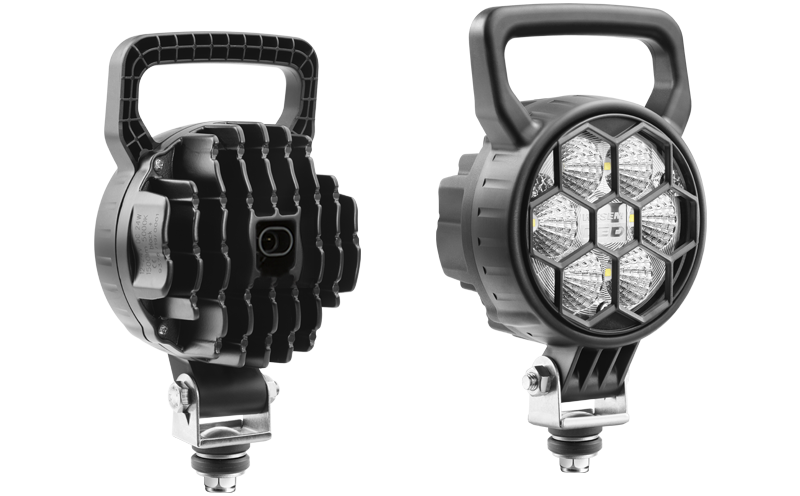

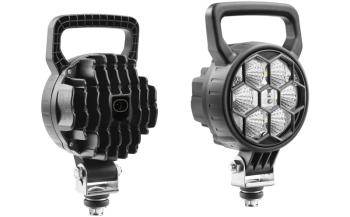

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC3E.50318	2500lm - LED module 12V-24V, stone guard, handle Part number: CRC3E.50318 Quantity: carton box/1		carton box/1
	CRC3C.50118	2000lm - LED module 12V-24V, stone guard, handle Part number: CRC3C.50118 Quantity: carton box/1		carton box/1
	CRC3A.48718	1500lm - LED module 12V-24V, stone guard, handle Part number: CRC3A.48718 Quantity: carton box/1		carton box/1

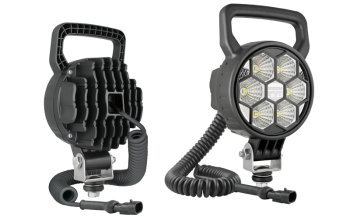

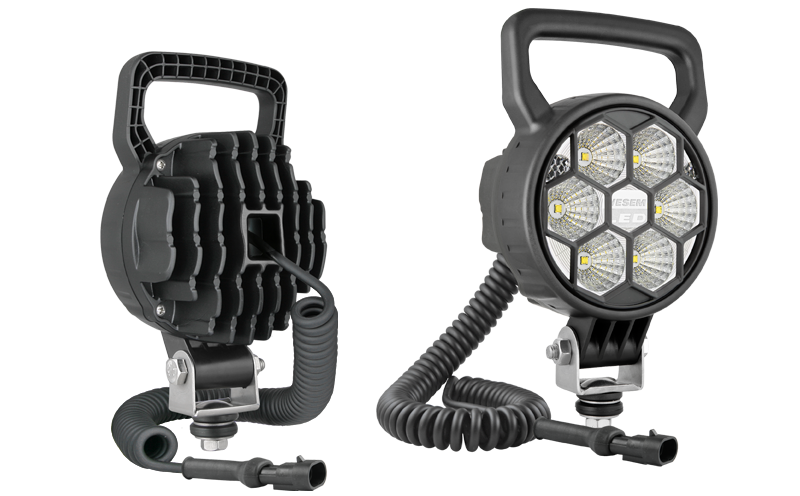

LED work lamp with spiral cable and AMP SuperSeal connector

LED work lamp with spiral cable and AMP SuperSeal connector

LED work lamp with spiral cable and AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC3A.48794	1500lm - LED module 12V-24V, stone guard, handle, spiral cable 8 m Part number: CRC3A.48794 Quantity: carton box/1		carton box/1
