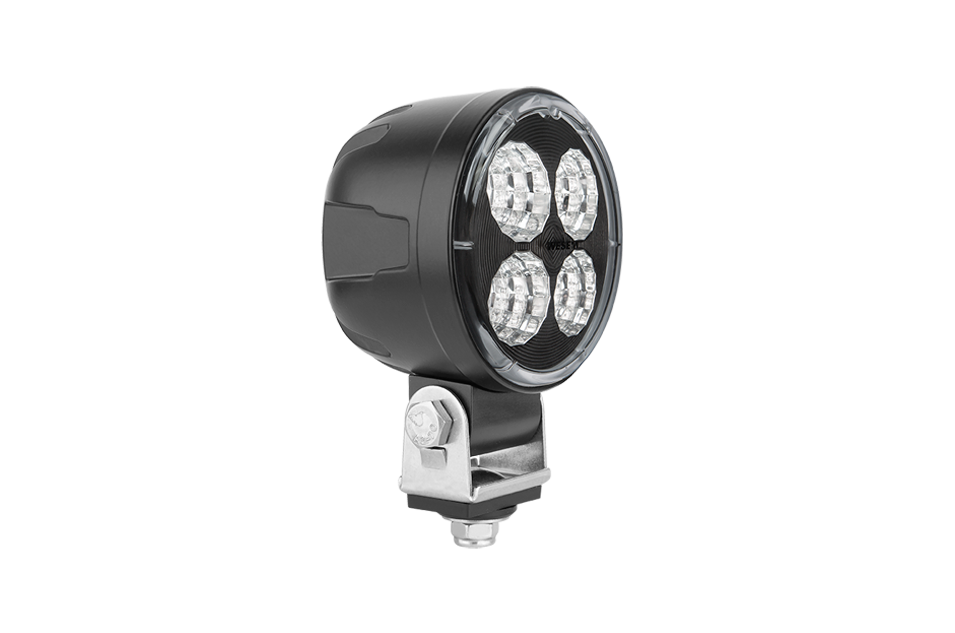

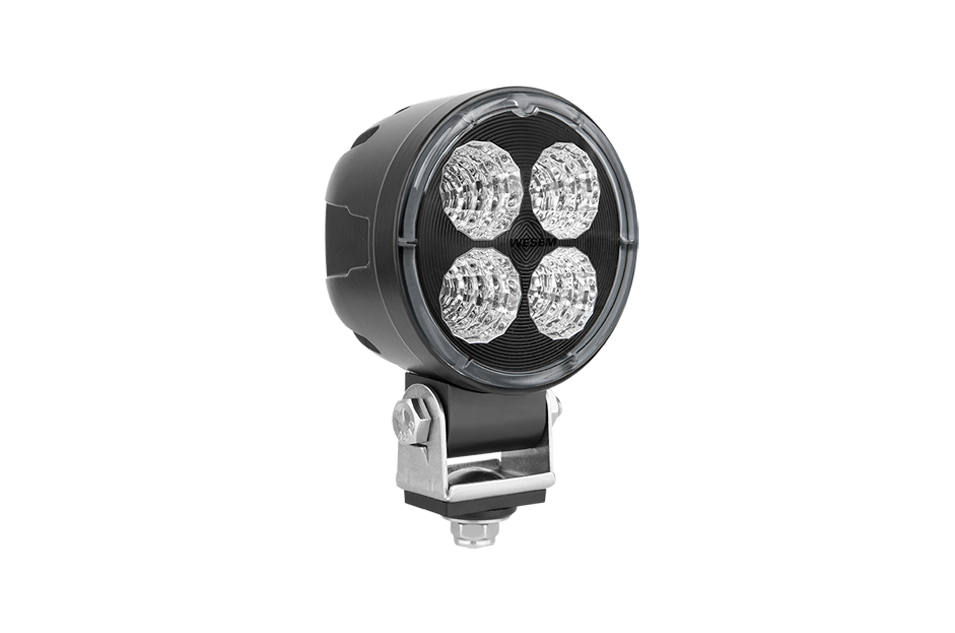

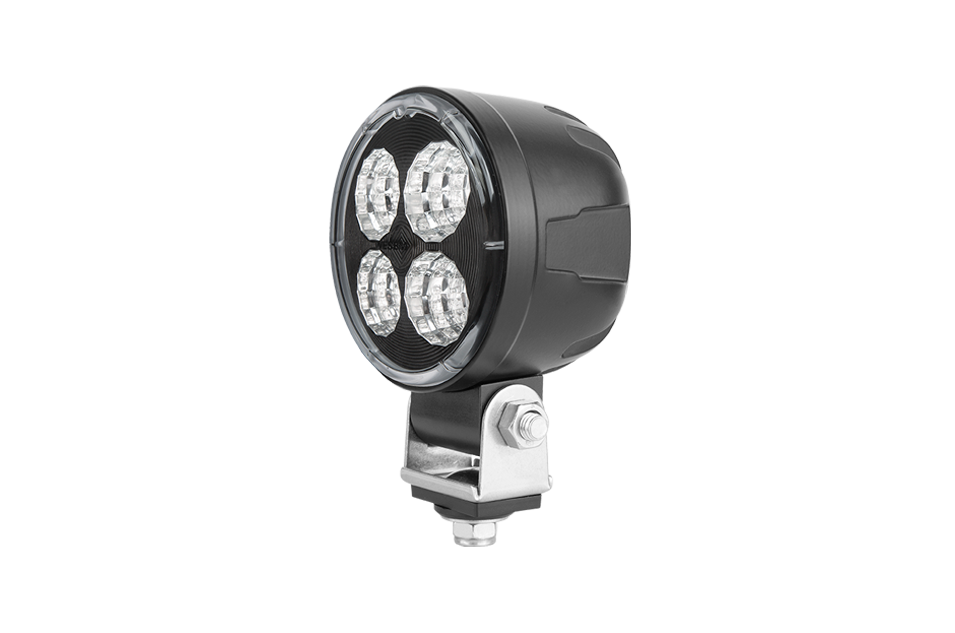

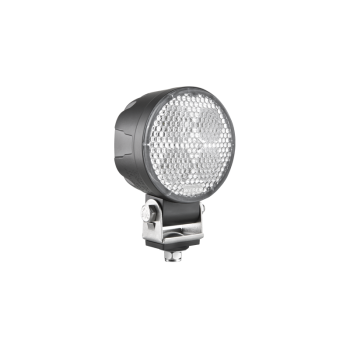

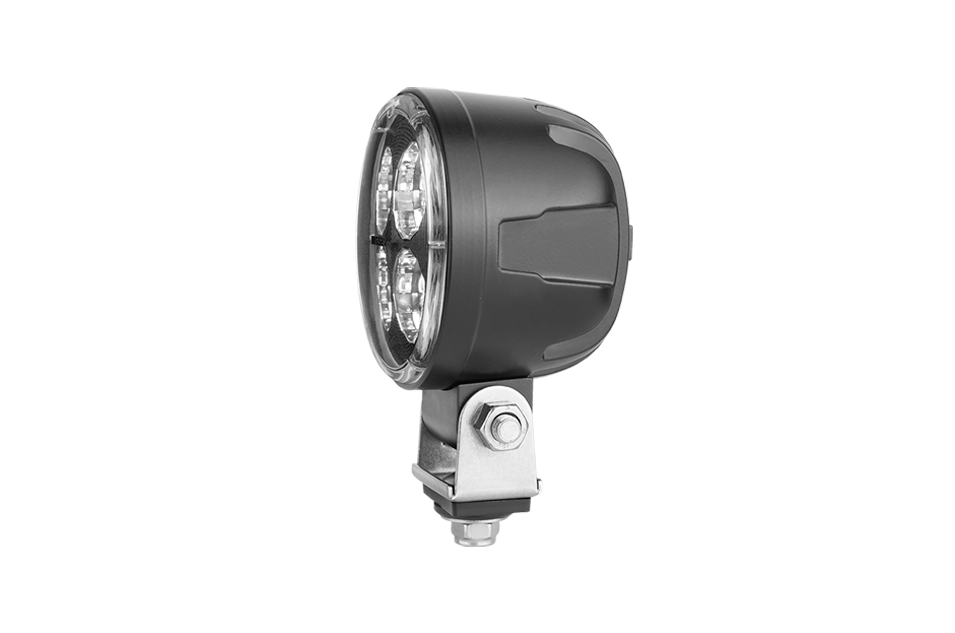

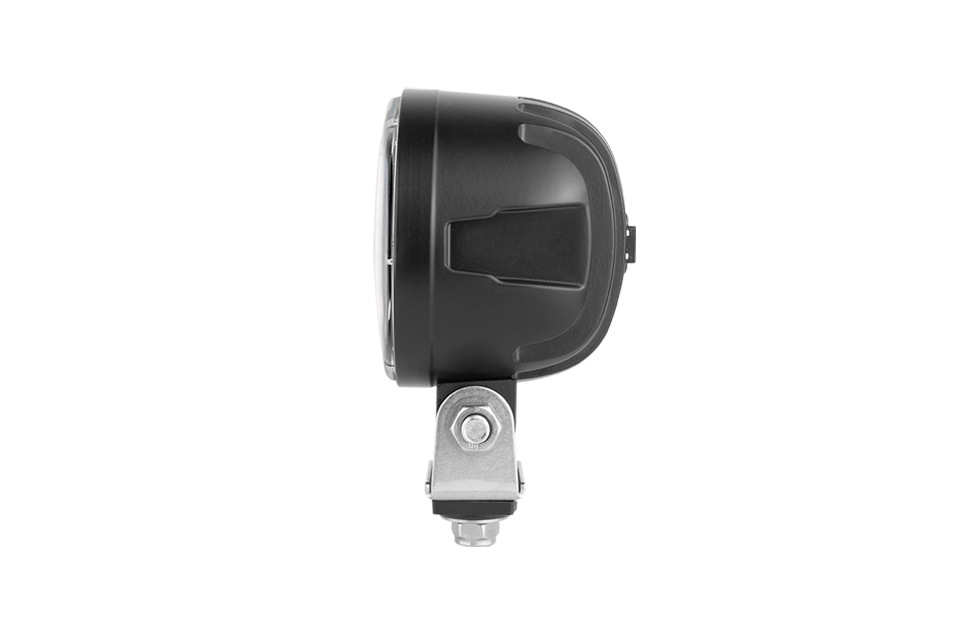

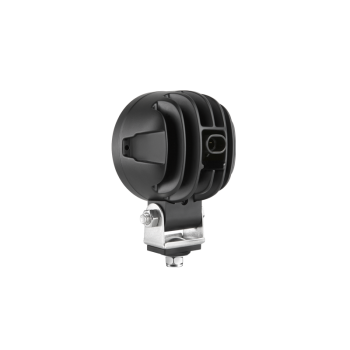

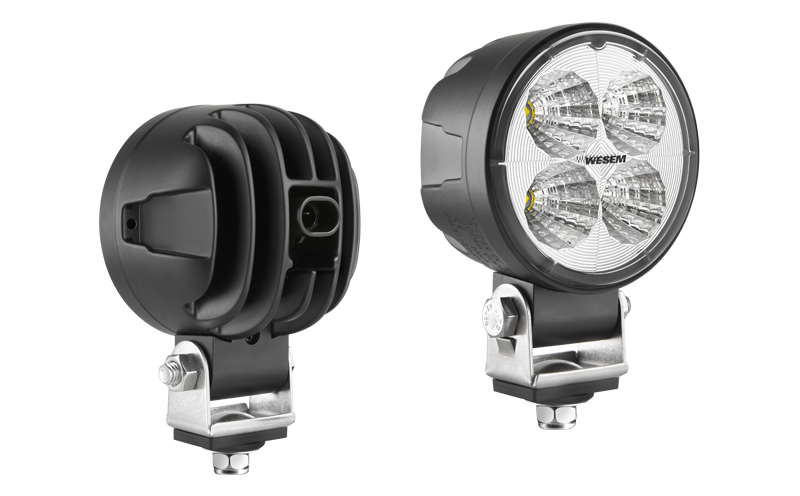

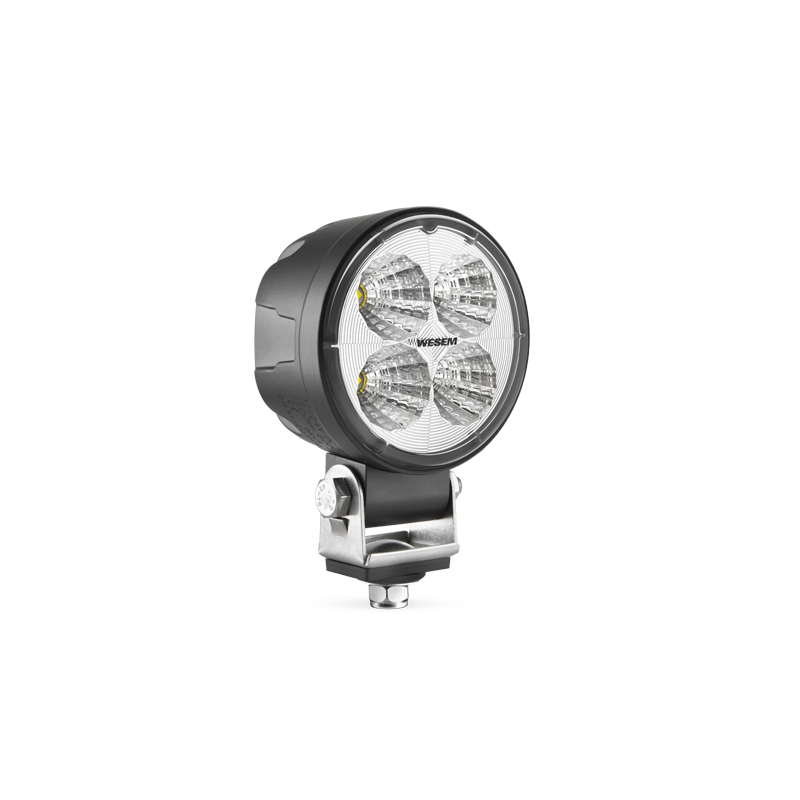

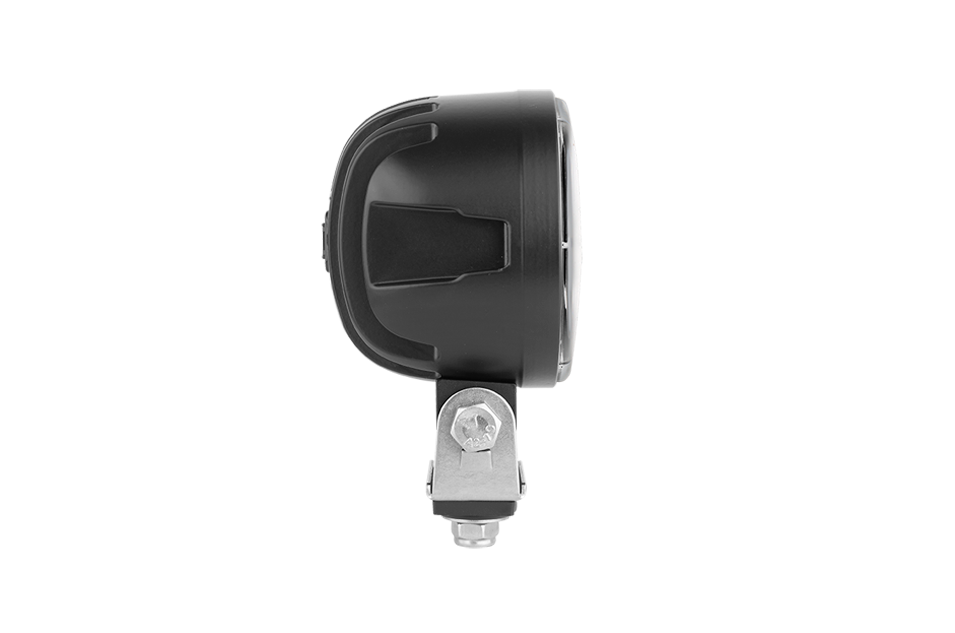

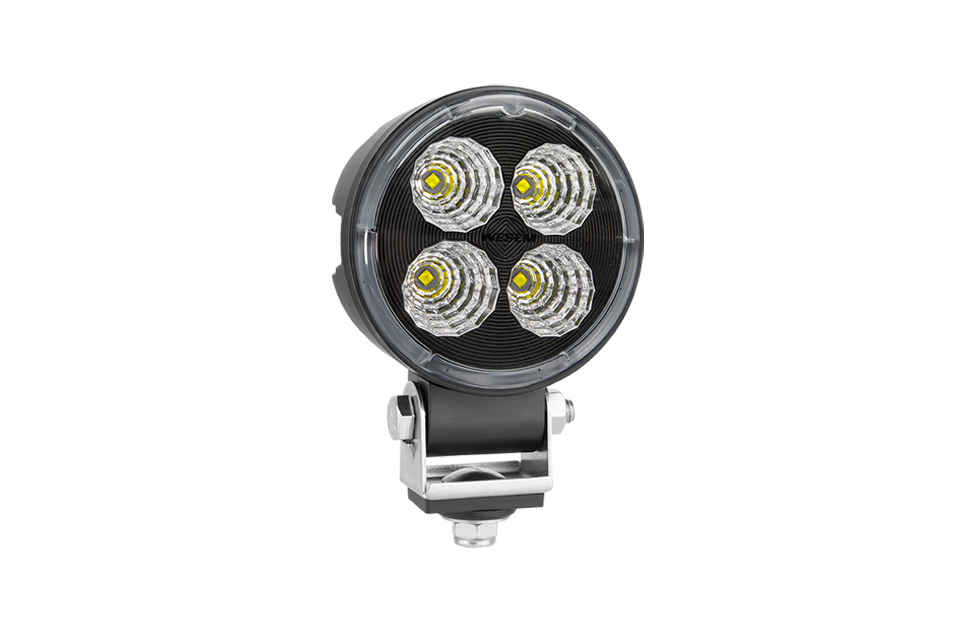

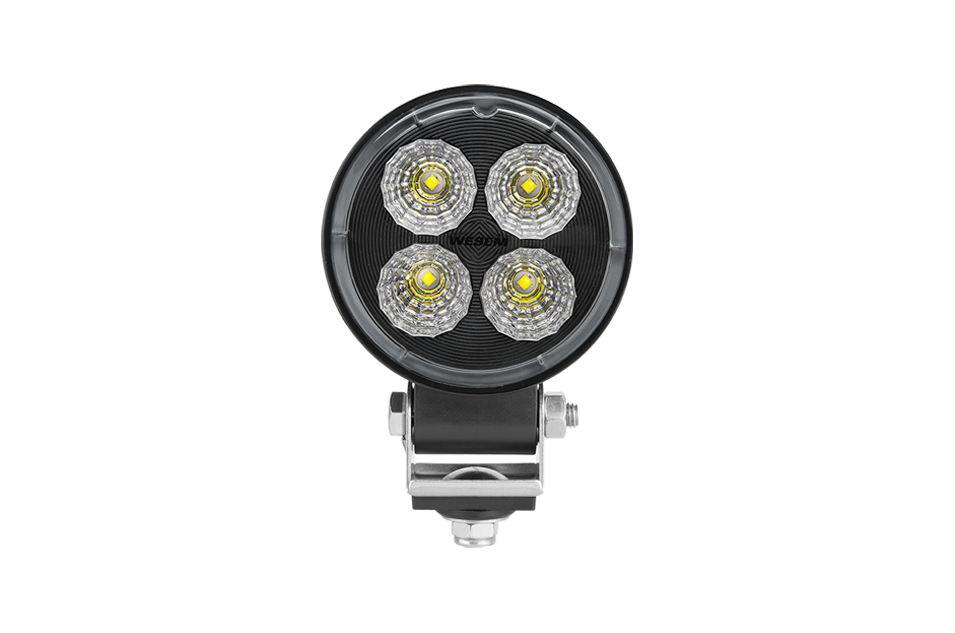

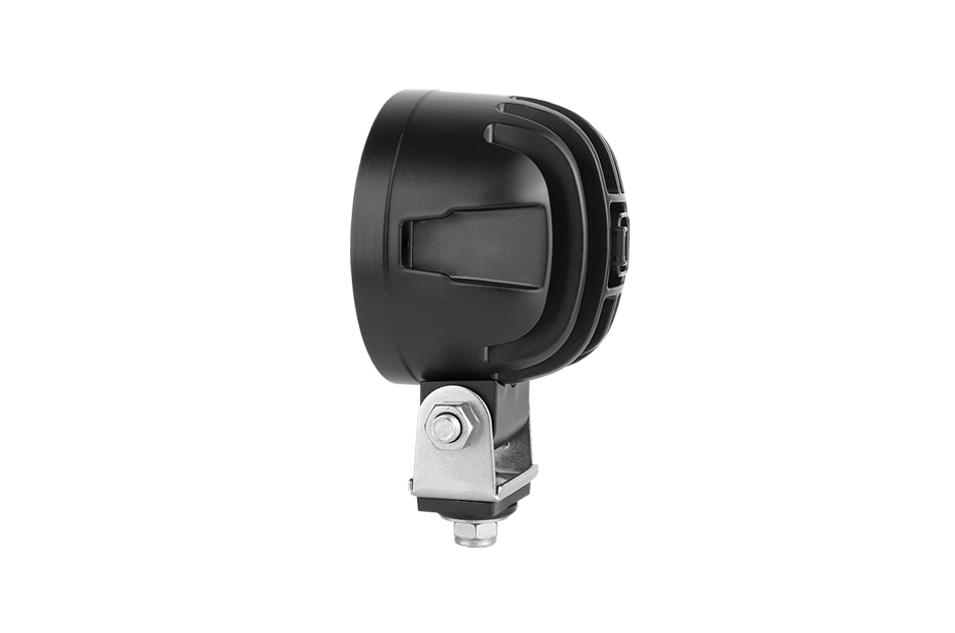

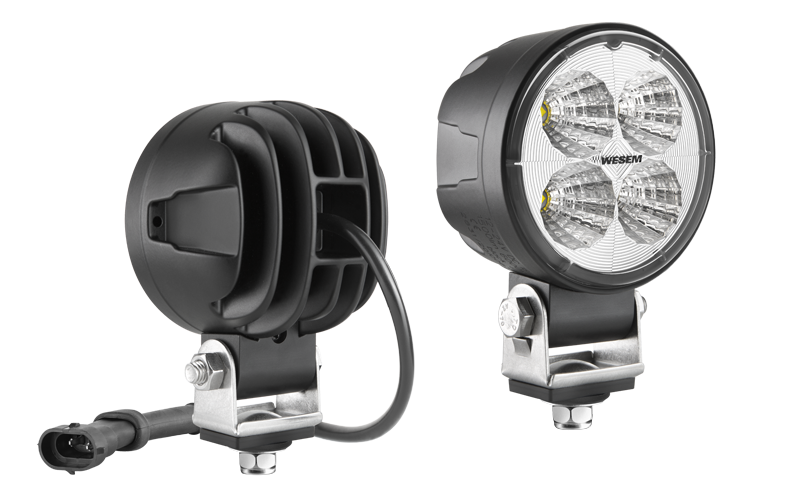

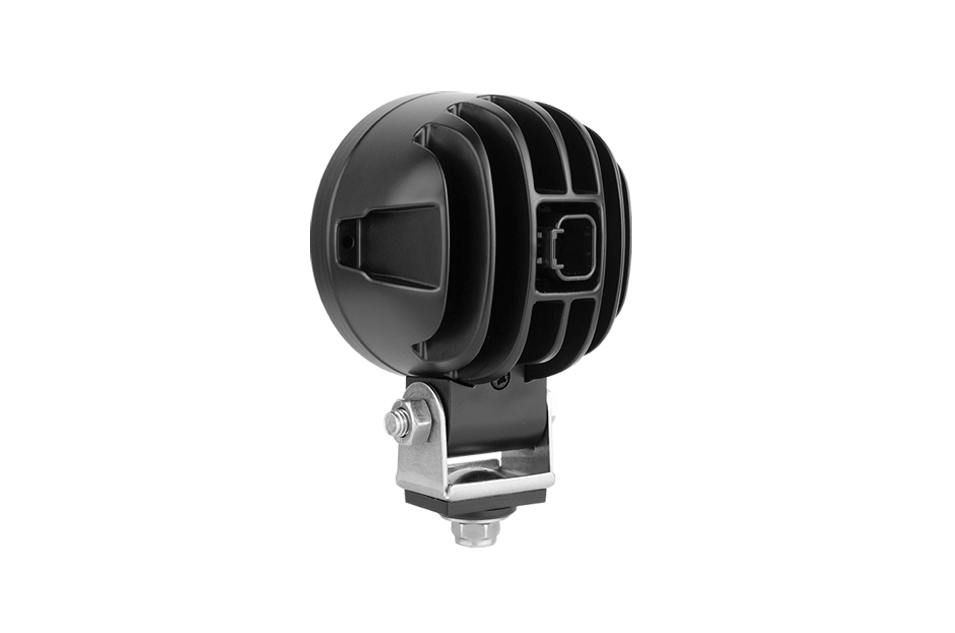

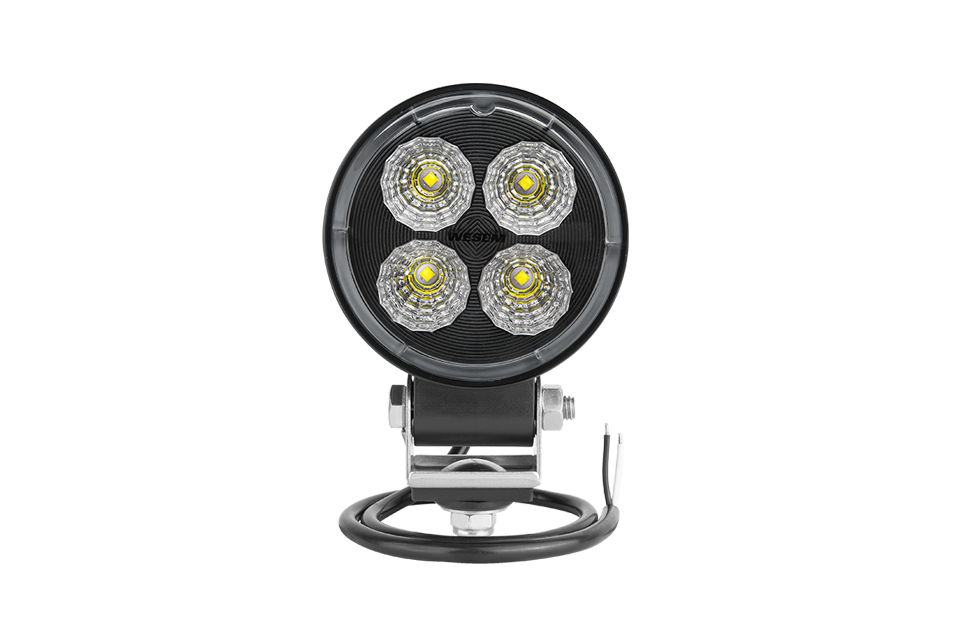

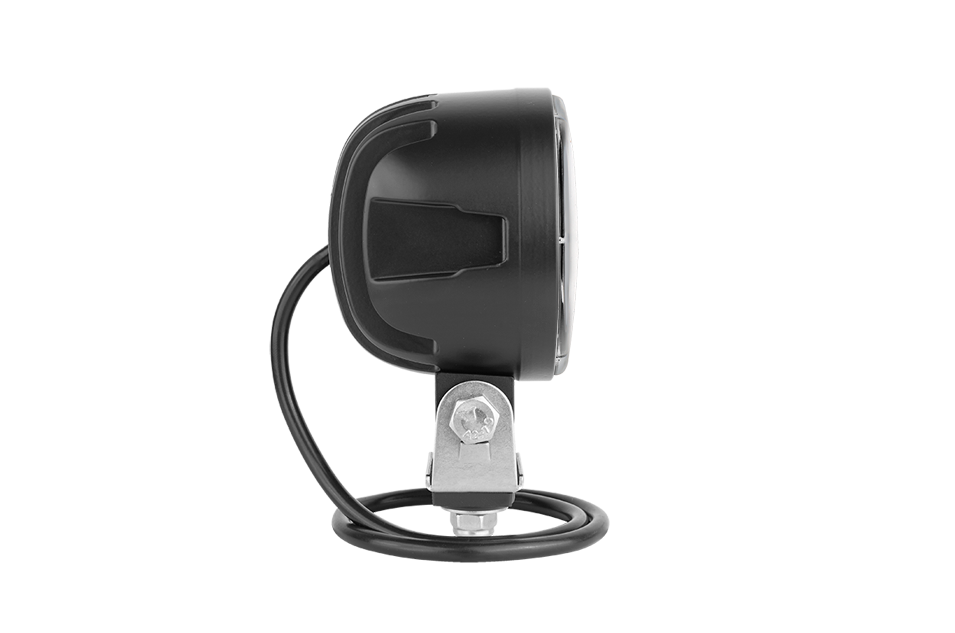

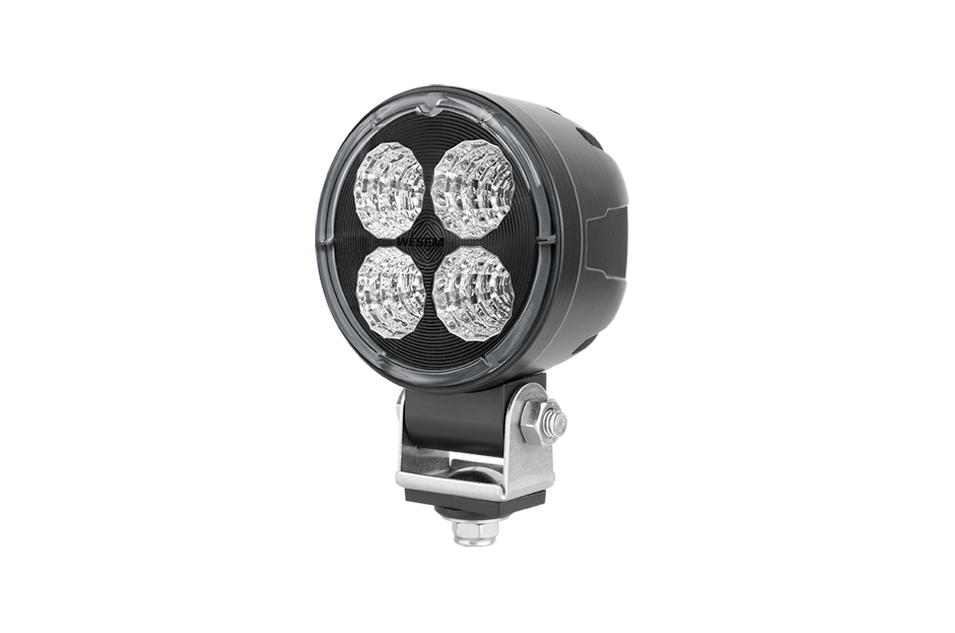

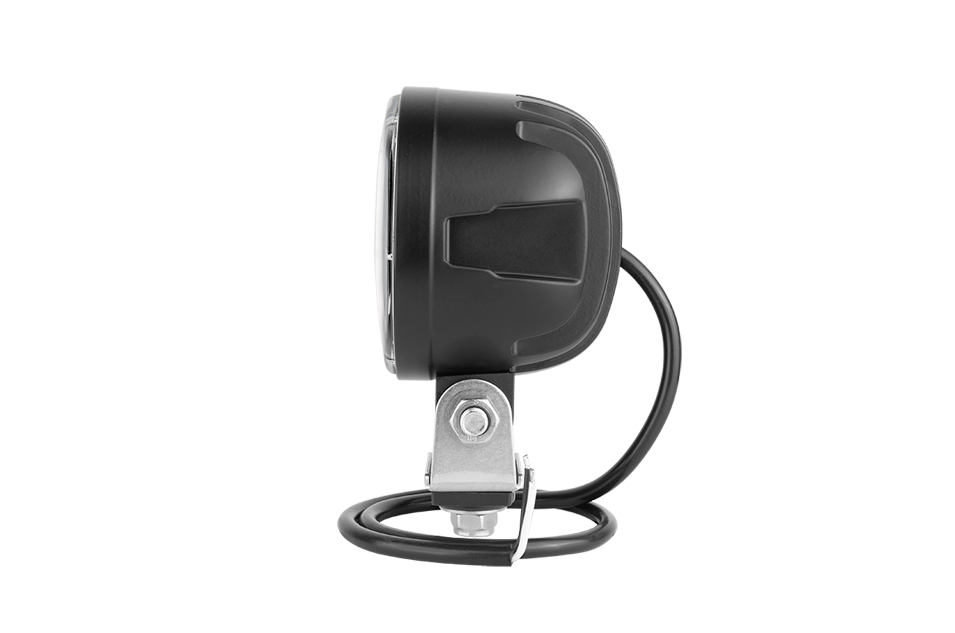

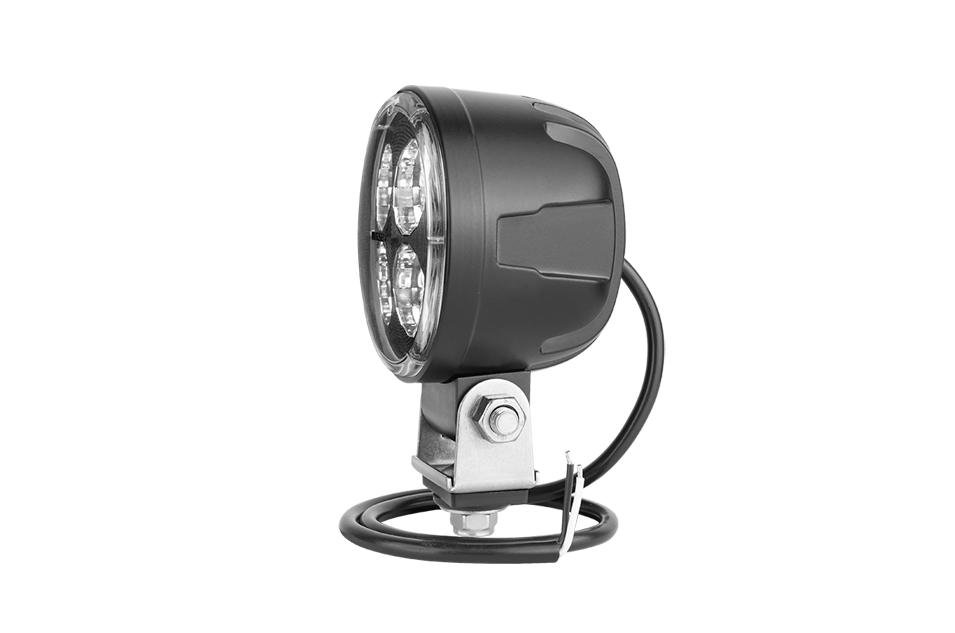

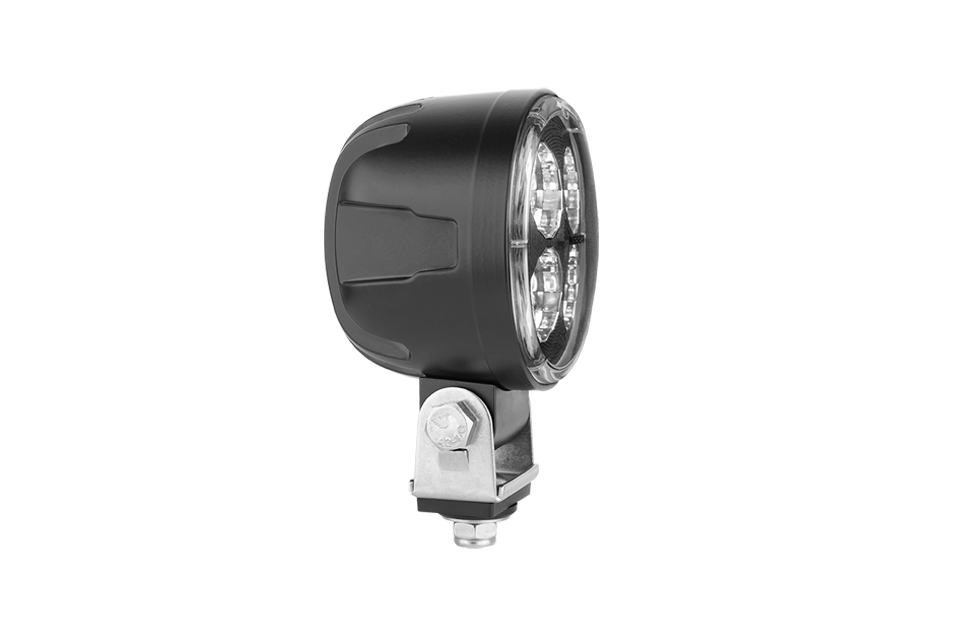

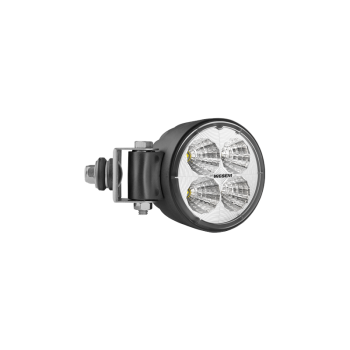

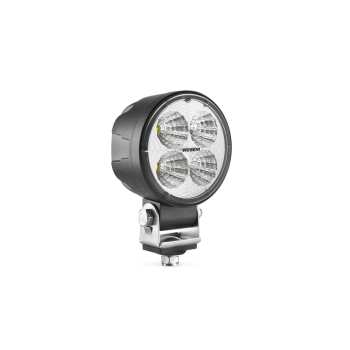

CRC5-FF LED work lamps with standard bracket

CRC5-FF LED work lamps with standard bracket

CRC5-FF LED work lamps with standard bracket

CRC5-FF LED work lamps with standard bracket

CRC5-FF LED work lamps with standard bracket

Dimensions	Ø87x72
Light functions	work light
Maximum power	21W, 18W, 14.5W
Light source	4 x LED
Supply voltage	12V-24V DC
Luminous flux	2000 lm, 1500 lm, 1000 lm
Beam angle	35°, 58°
Beam type	wide beam
IP rating	IP67, IP69K, IP66

Catalogue page

Product versions

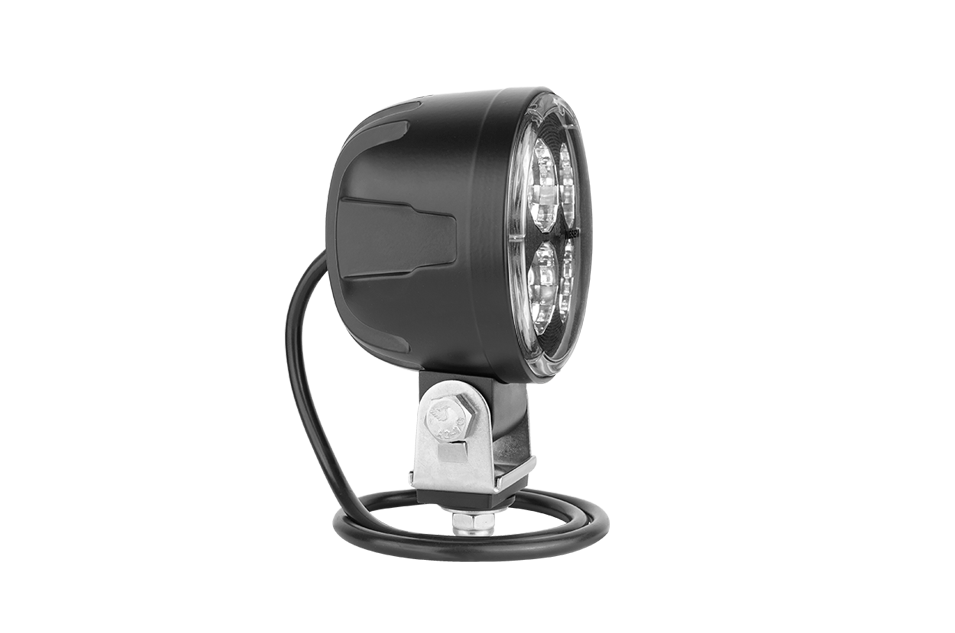

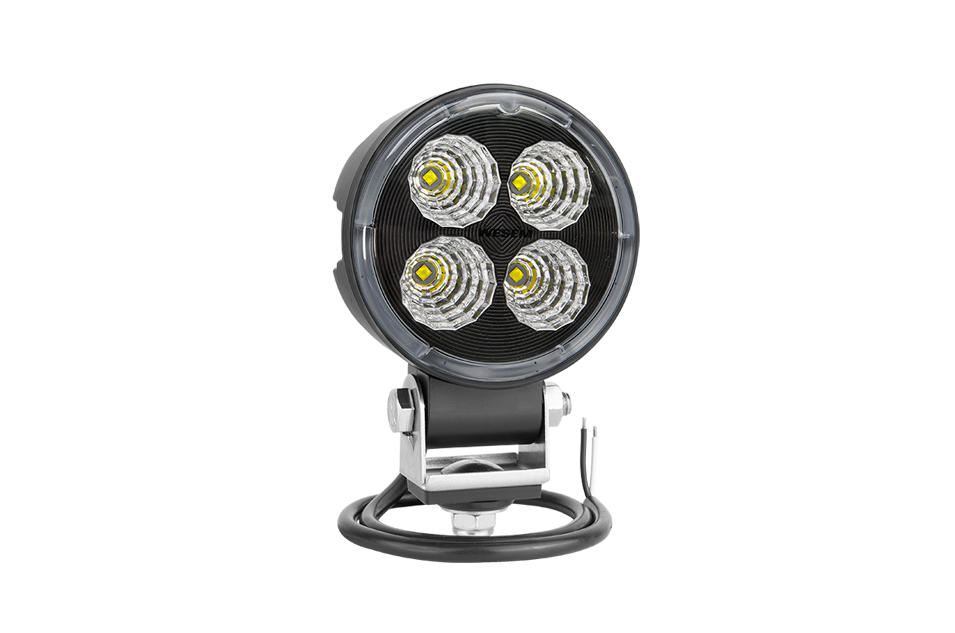

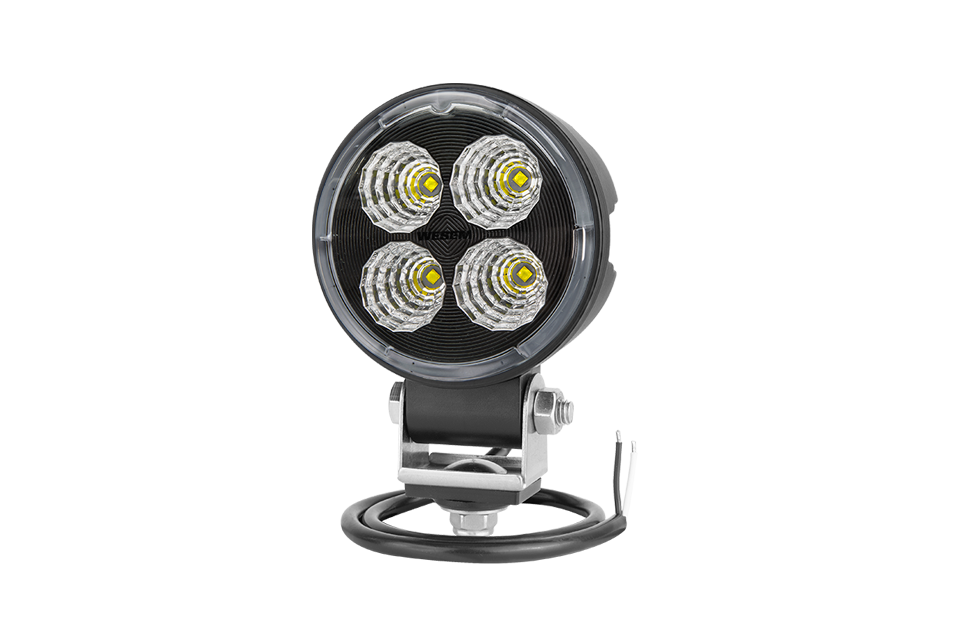

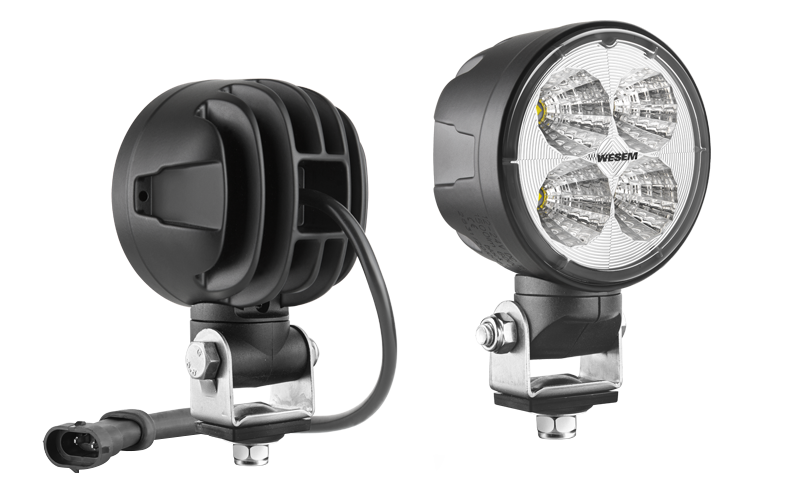

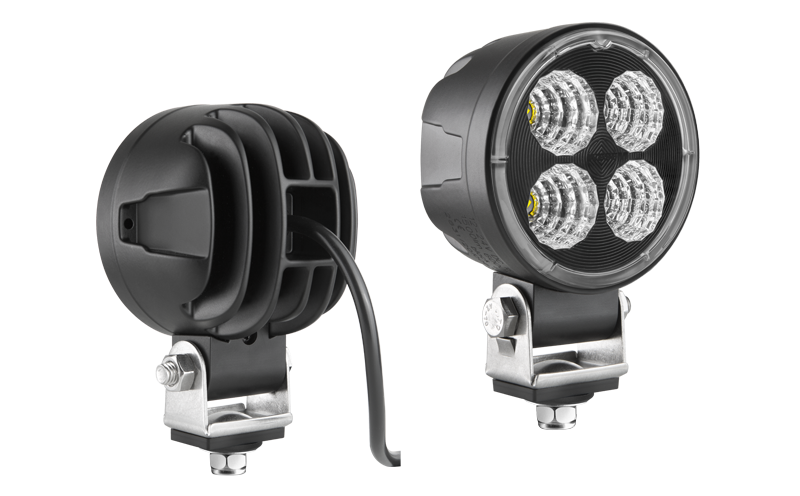

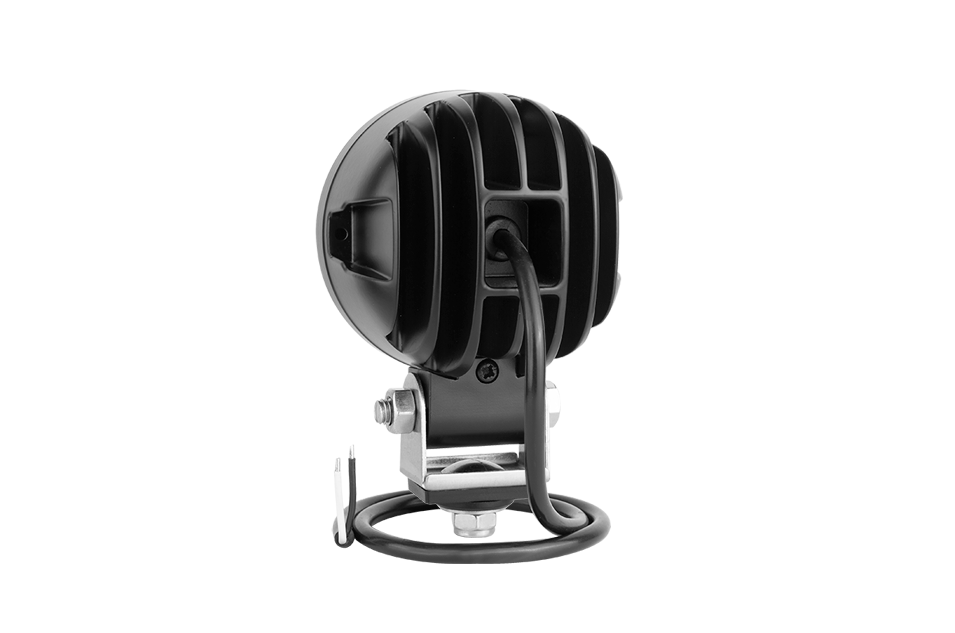

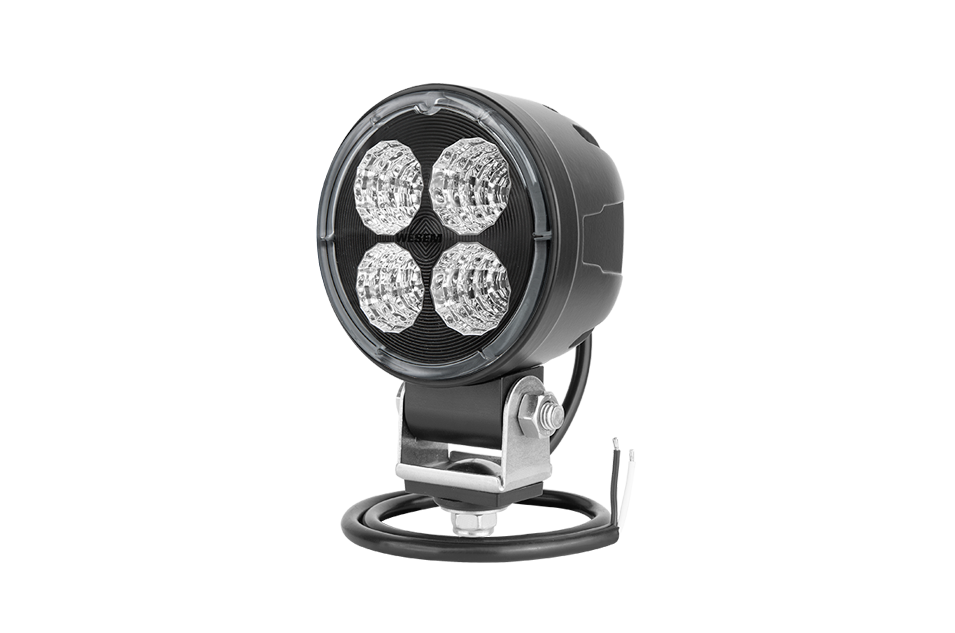

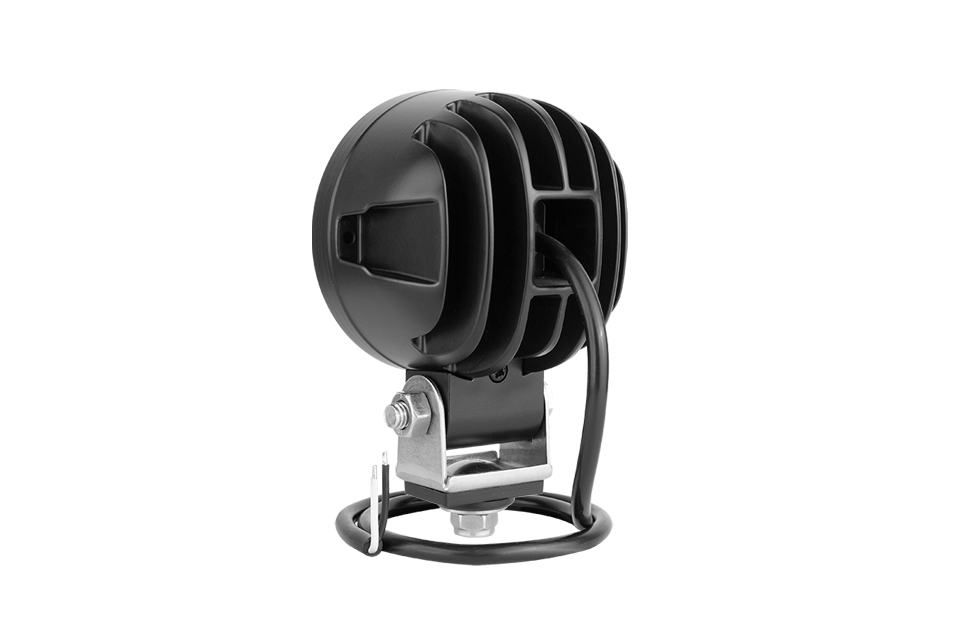

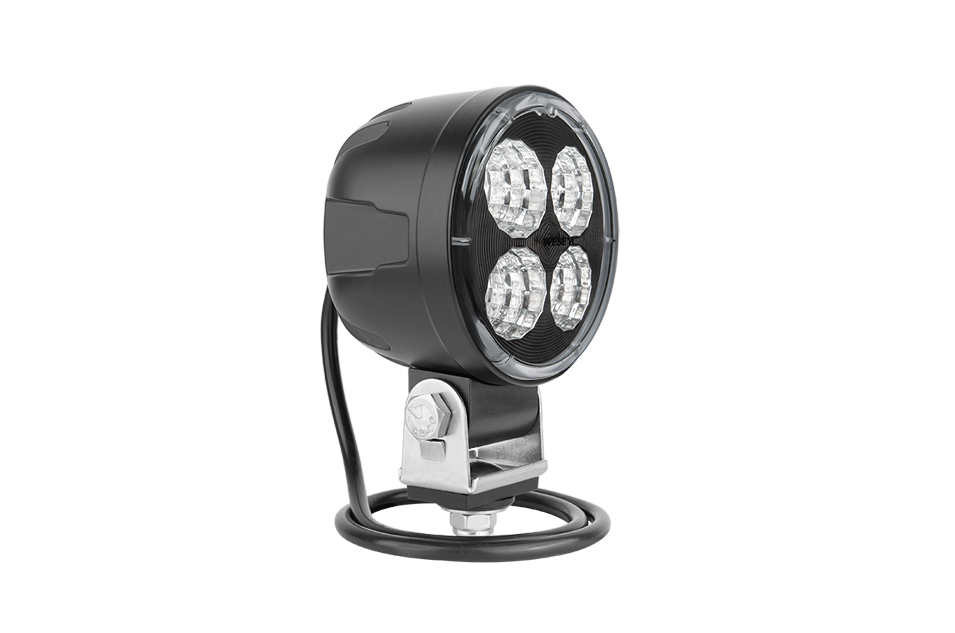

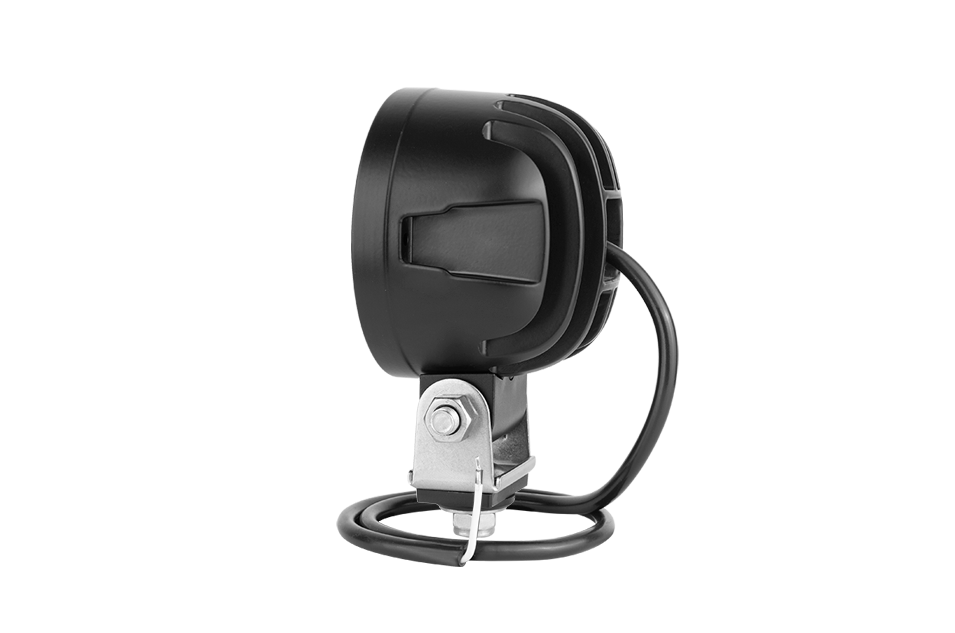

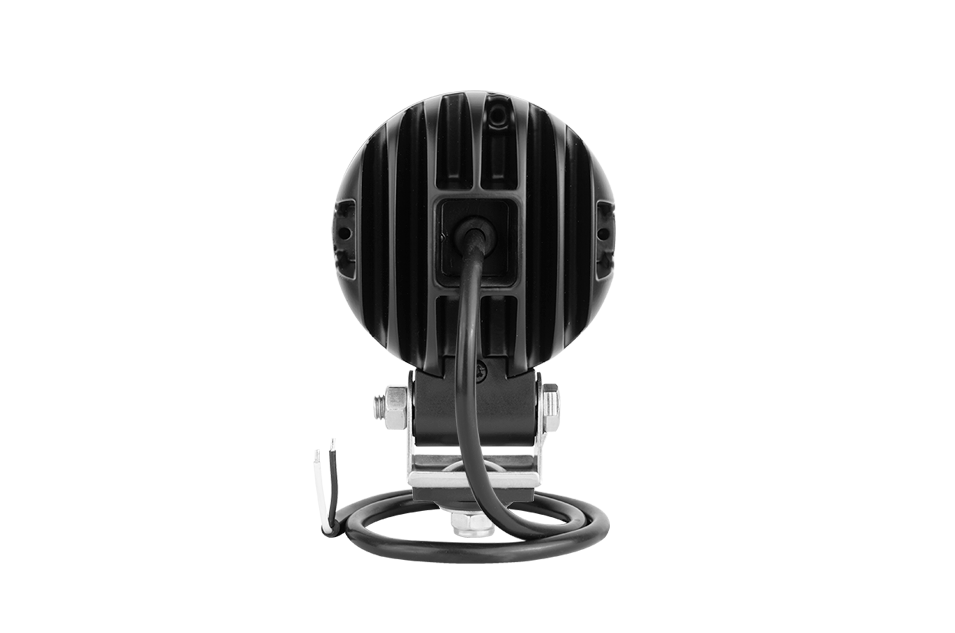

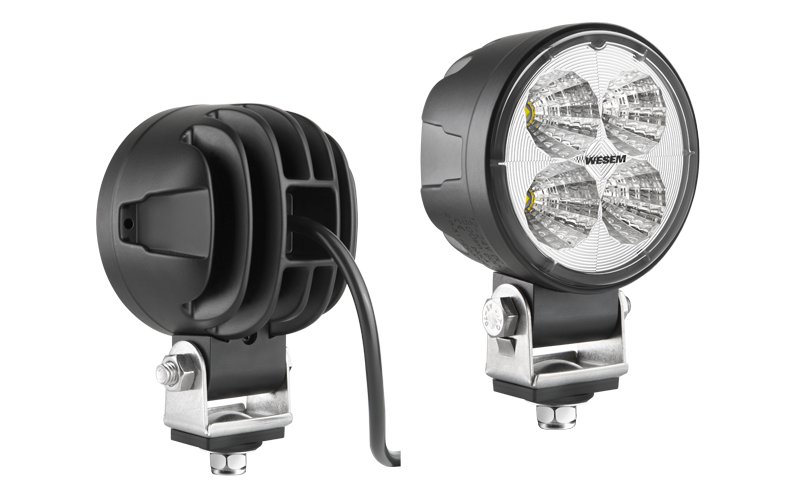

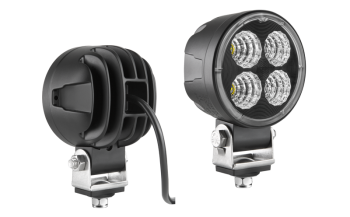

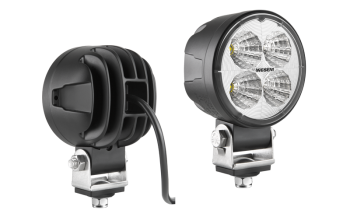

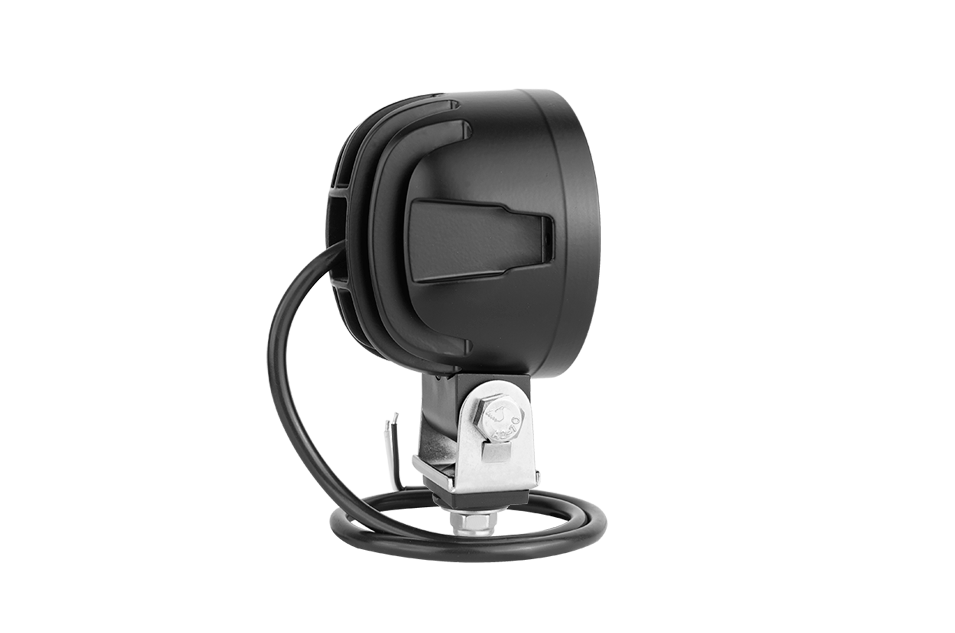

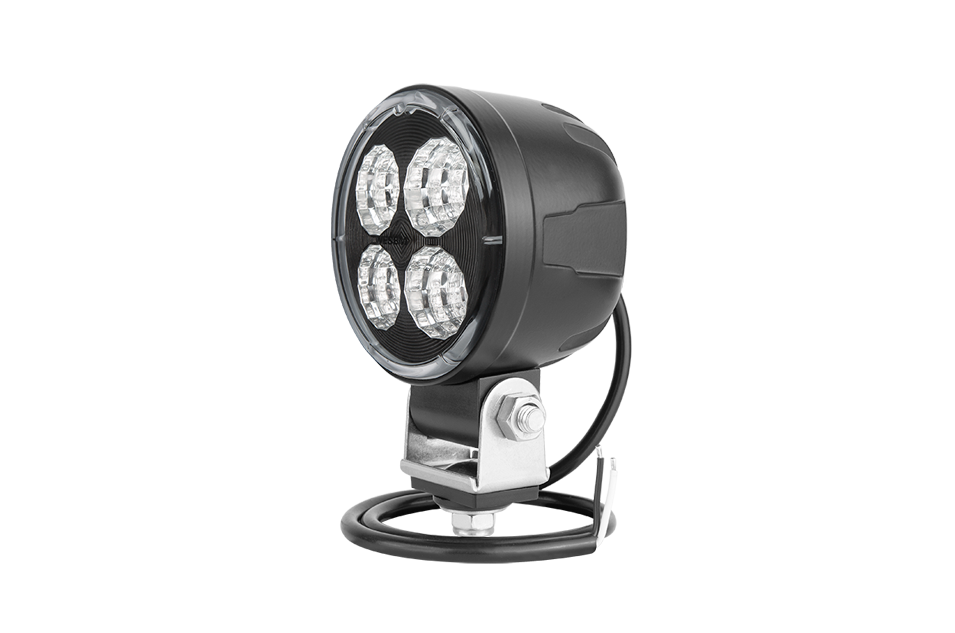

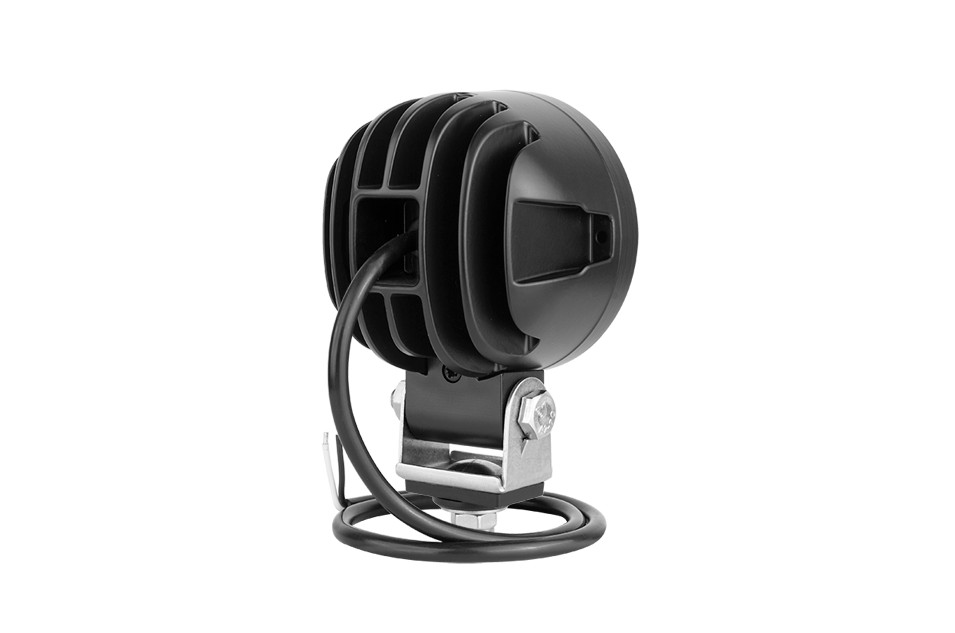

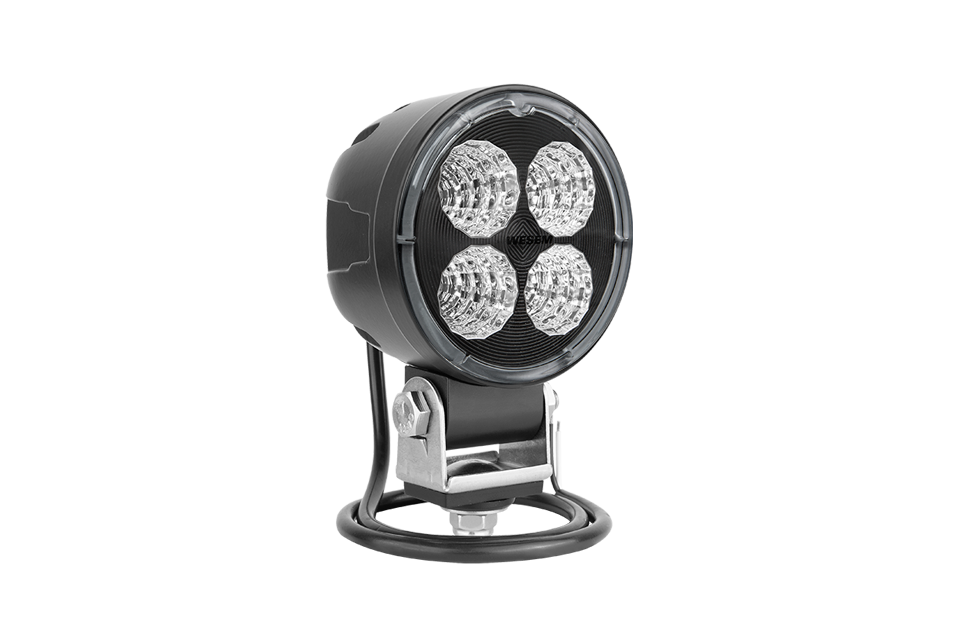

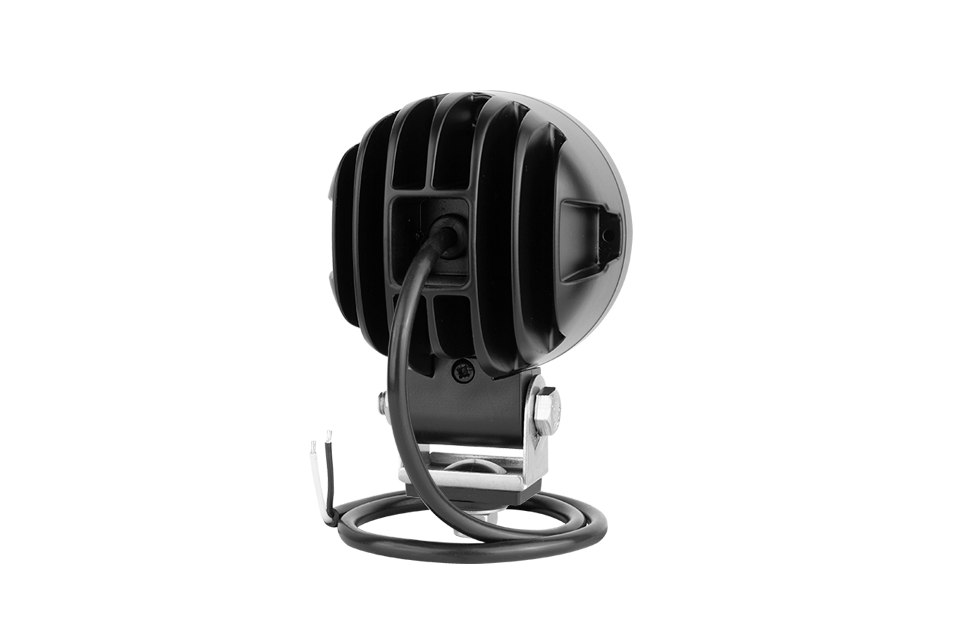

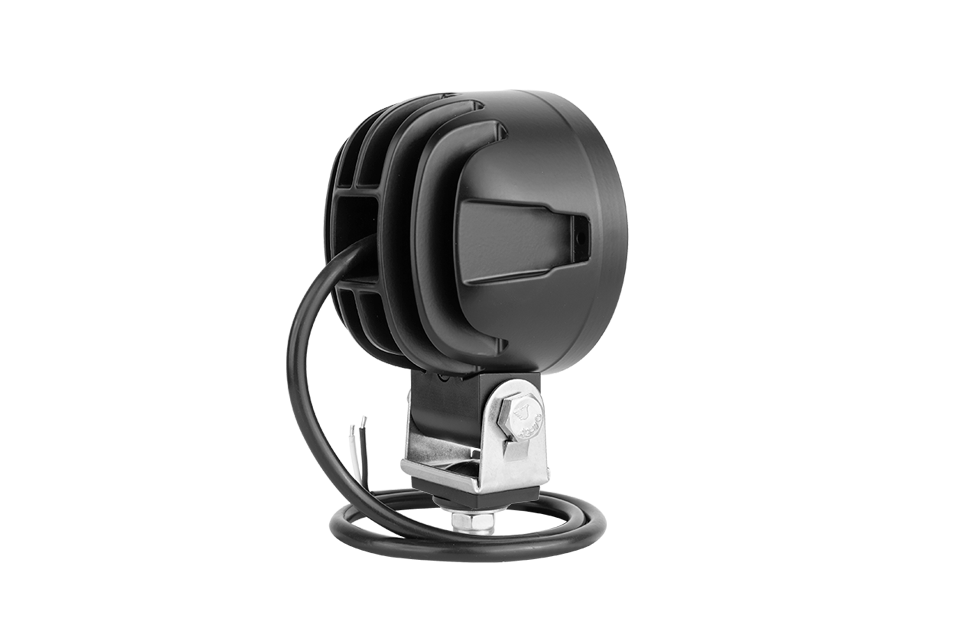

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC5K.54801	beam angle: 35°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5K.54801 Quantity: carton box/1		carton box/1
	CRC5H.53301	beam angle: 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5H.53301 Quantity: carton box/1		carton box/1
	CRC5B.50001	beam angle: 35°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5B.50001 Quantity: carton box/1		carton box/1
	CRC5D.51601	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5D.51601 Quantity: carton box/1		carton box/1
	CRC5A.49401	beam angle: 35°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5A.49401 Quantity: carton box/1		carton box/1
	CRC5C.51501	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5C.51501 Quantity: carton box/1		carton box/1

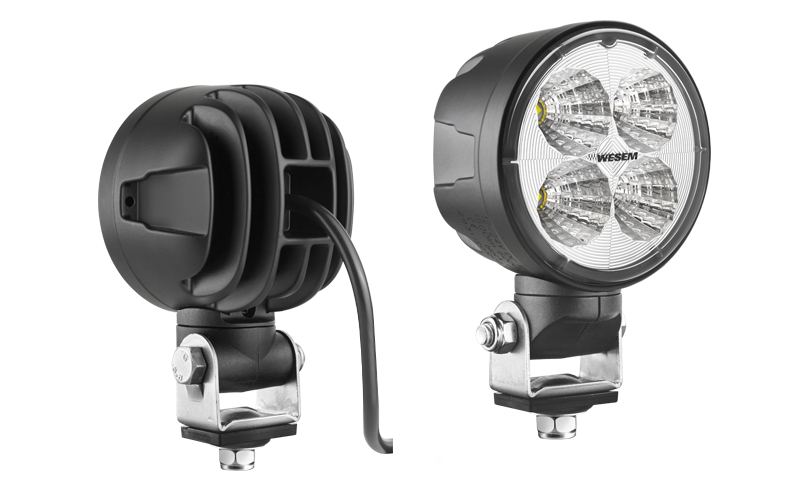

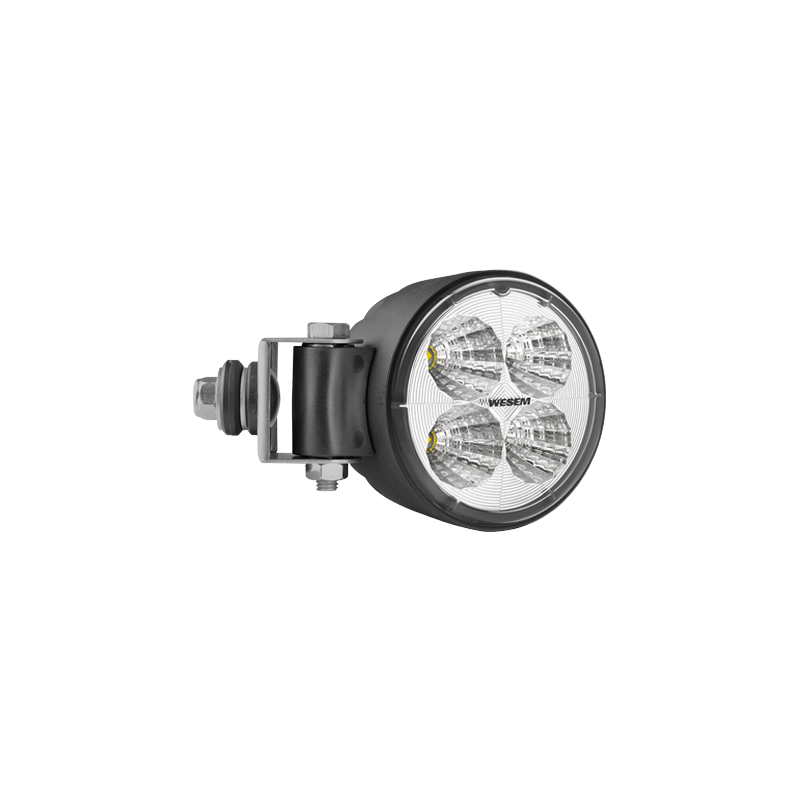

LED work lamp with cable and swivel mount

LED work lamp with cable and swivel mount

LED work lamp with cable and swivel mount

Compare	Part number	Equipment		Quantity
	CRC5H.53370	beam angle: 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5H.53370 Quantity: carton box/1		carton box/1

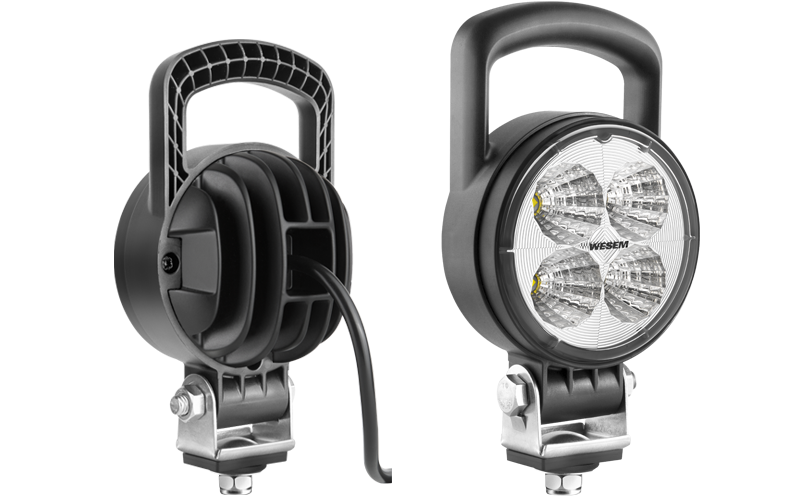

LED work lamp with cable

LED work lamp with cable

LED work lamp with cable

Compare	Part number	Equipment		Quantity
	CRC5D.51609	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,5 m, handle Part number: CRC5D.51609 Quantity: carton box/1		carton box/1
	CRC5C.51504	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,5 m, handle Part number: CRC5C.51504 Quantity: carton box/1		carton box/1

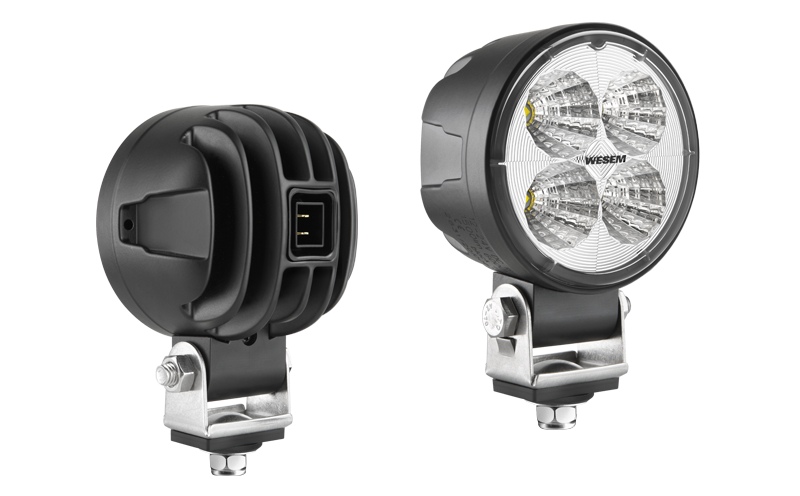

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

LED work lamp with built-in AMP Faston connector

Compare	Part number	Equipment		Quantity
	CRC5K.54806	beam angle: 35°, 2000lm - LED module 12V-24V Part number: CRC5K.54806 Quantity: carton box/1		carton box/1
	CRC5H.53306	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53306 Quantity: carton box/1		carton box/1
	CRC5B.50006	beam angle: 35°, 1500lm - LED module 12V-24V Part number: CRC5B.50006 Quantity: carton box/1		carton box/1
	CRC5D.51606	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51606 Quantity: carton box/1		carton box/1
	CRC5A.49406	beam angle: 35°, 1000lm - LED module 12V-24V Part number: CRC5A.49406 Quantity: carton box/1		carton box/1
	CRC5C.51506	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51506 Quantity: carton box/1		carton box/1

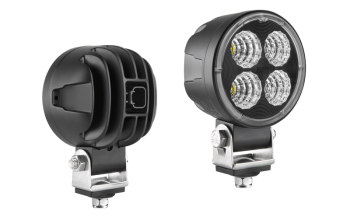

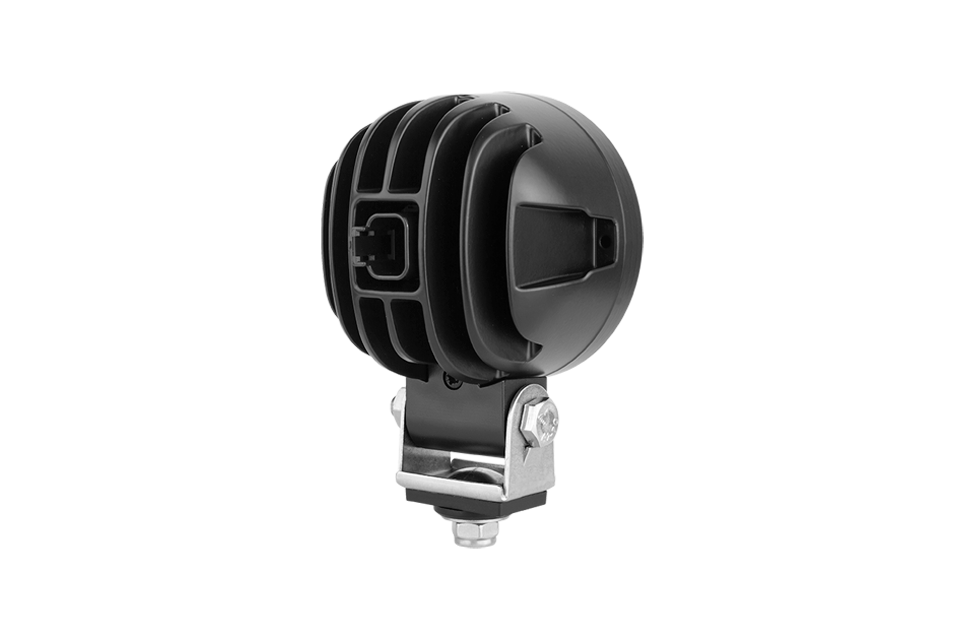

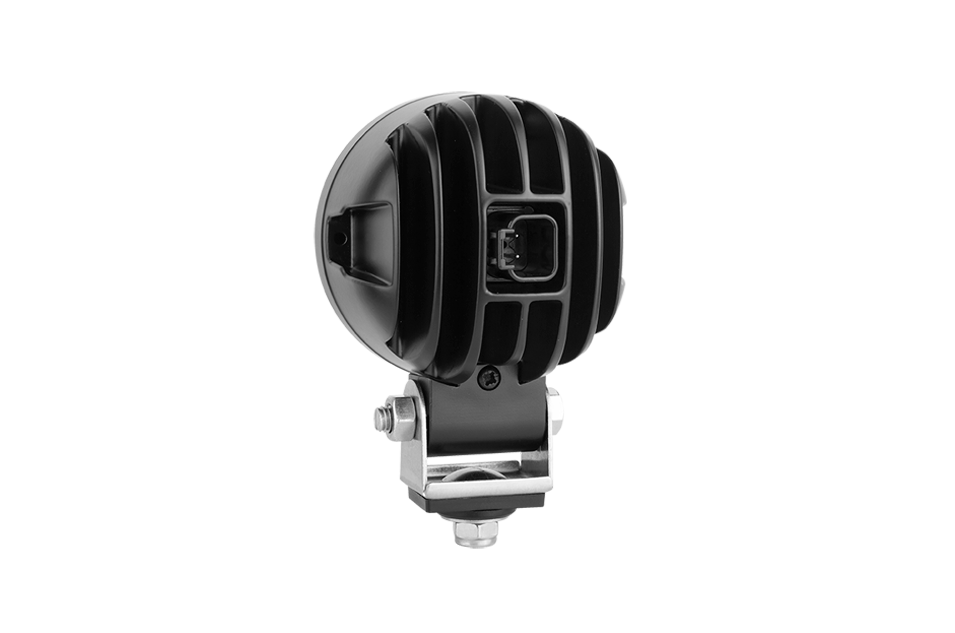

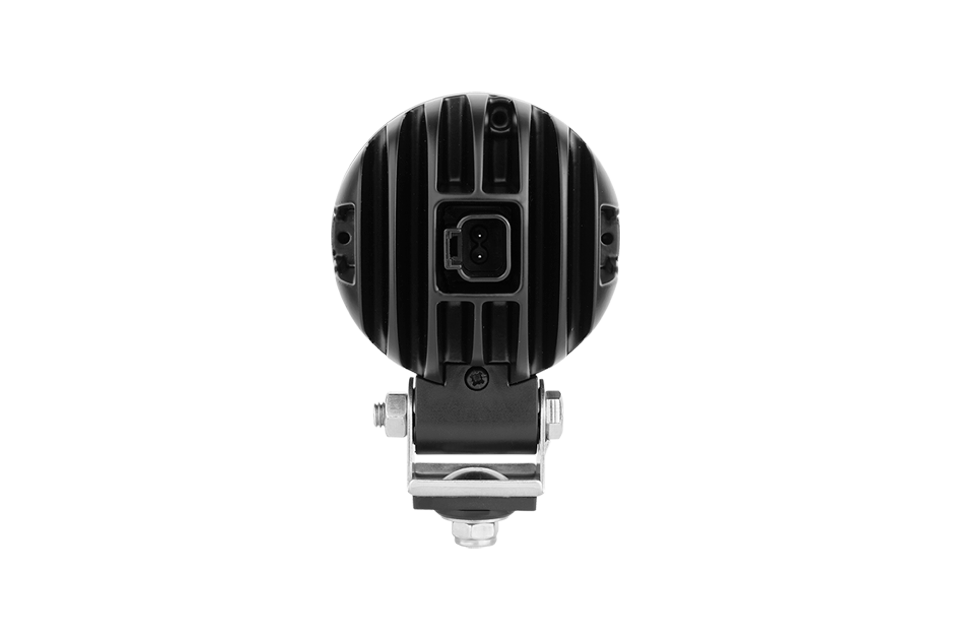

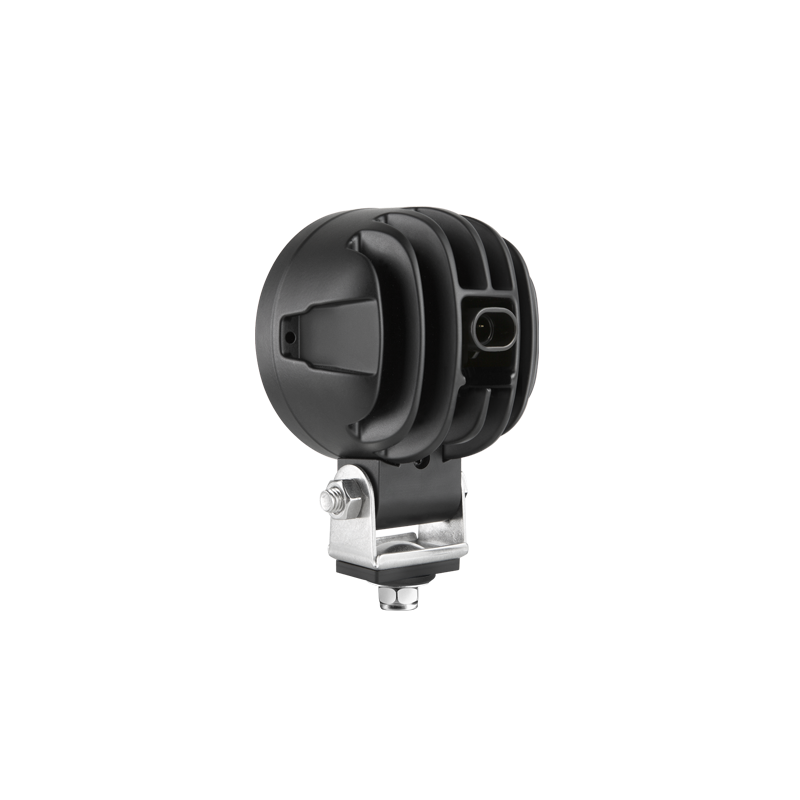

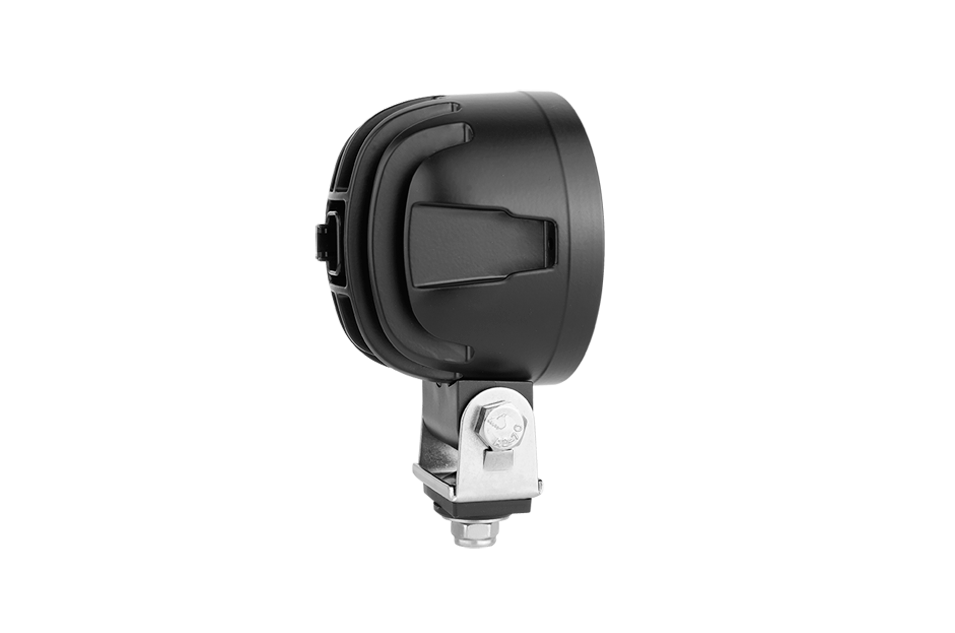

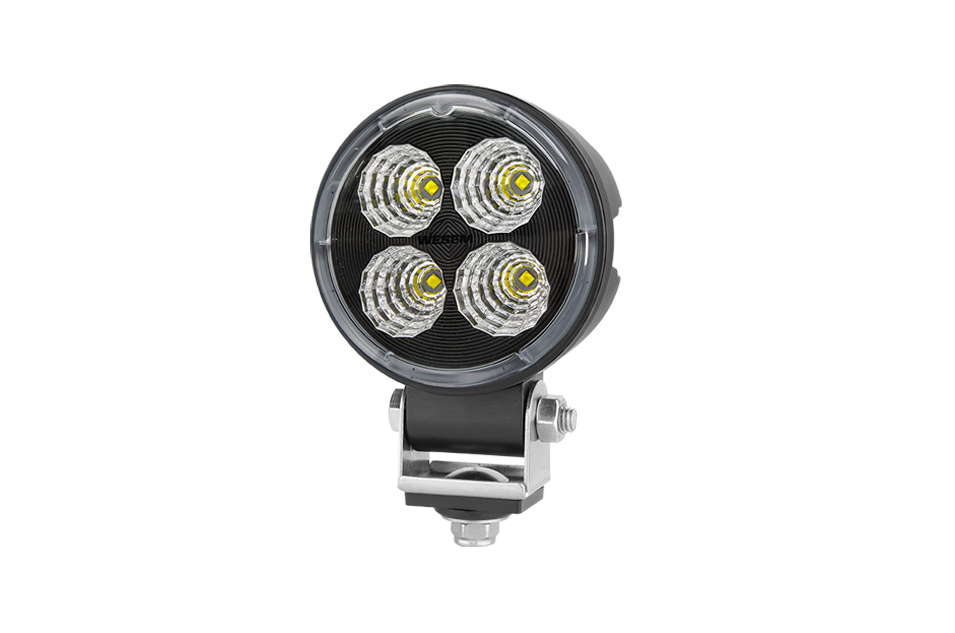

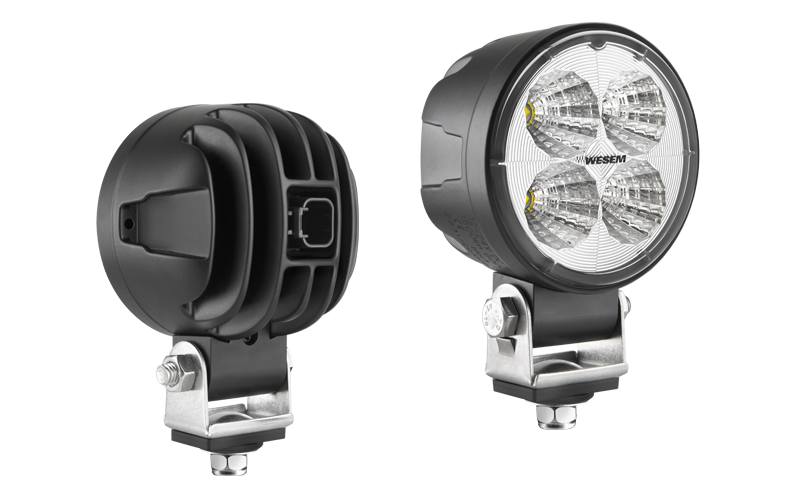

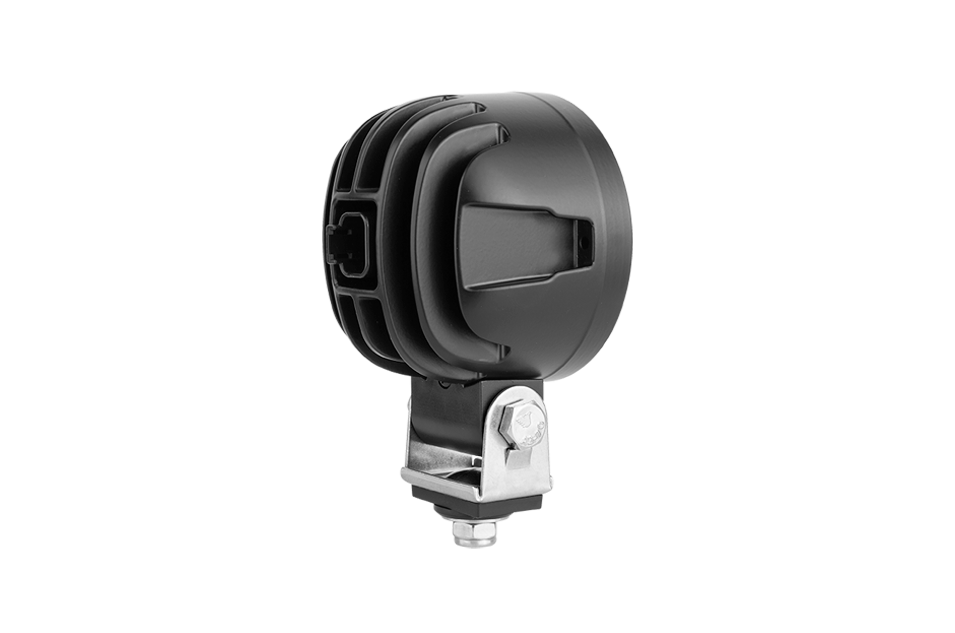

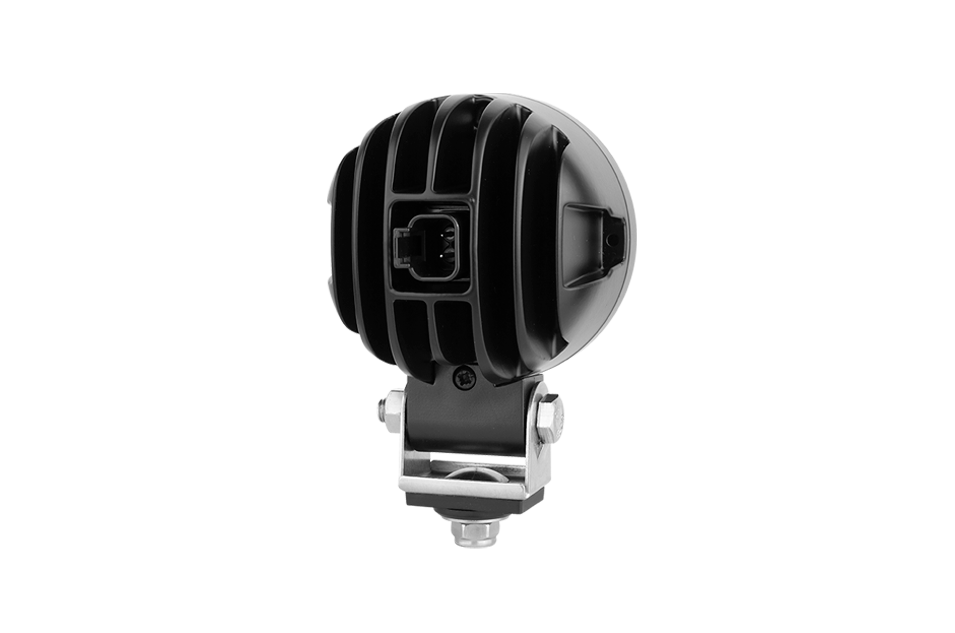

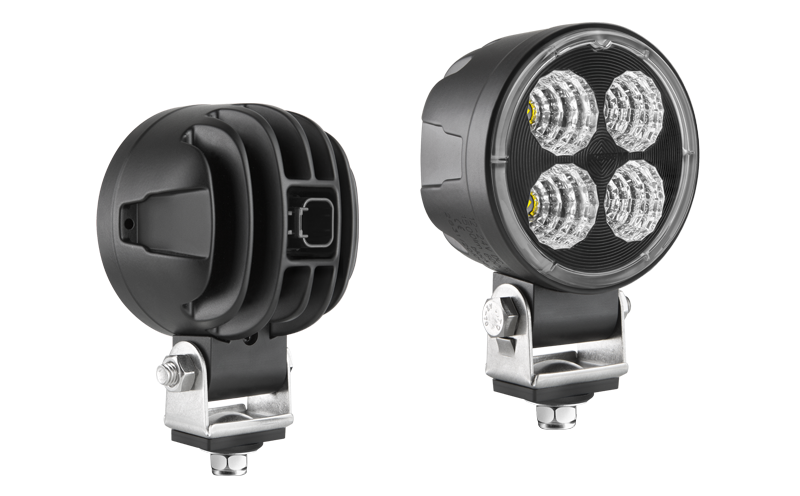

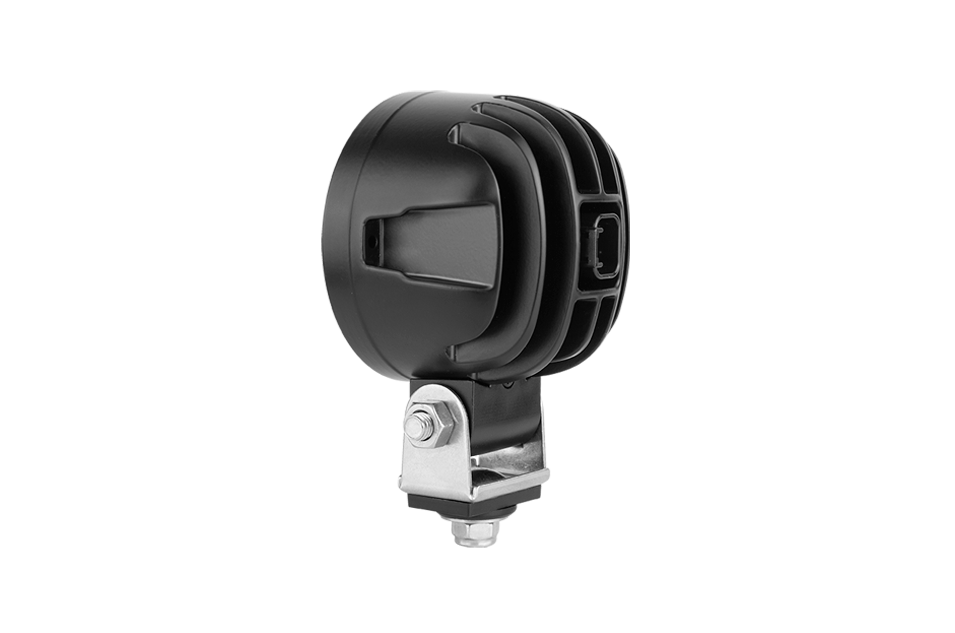

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

LED work lamp with built-in Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC5K.54814	beam angle: 35°, 2000lm - LED module 12V-24V Part number: CRC5K.54814 Quantity: carton box/1		carton box/1
	CRC5H.53314	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53314 Quantity: carton box/1		carton box/1
	CRC5B.50014	beam angle: 35°, 1500lm - LED module 12V-24V Part number: CRC5B.50014 Quantity: carton box/1		carton box/1
	CRC5D.51614	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51614 Quantity: carton box/1		carton box/1
	CRC5A.49414	beam angle: 35°, 1000lm - LED module 12V-24V Part number: CRC5A.49414 Quantity: carton box/1		carton box/1
	CRC5C.51514	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51514 Quantity: carton box/1		carton box/1

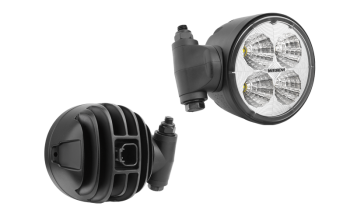

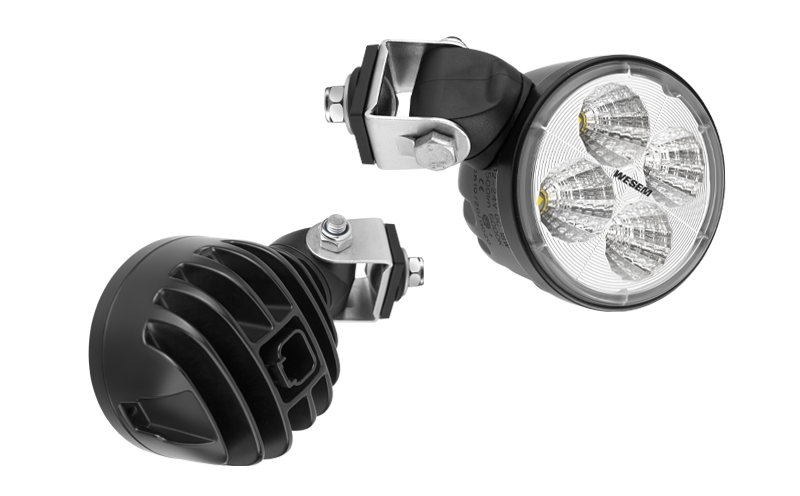

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

Compare	Part number	Equipment		Quantity
	CRC5H.53377	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53377 Quantity: carton box/1		carton box/1

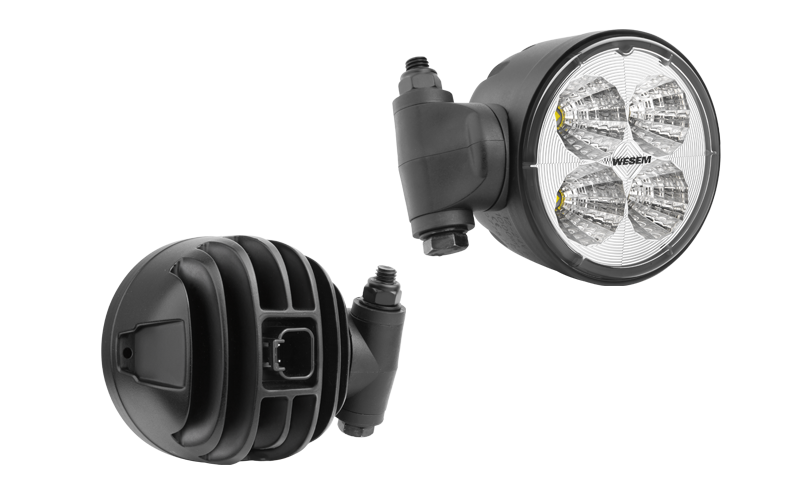

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

LED work lamp with built-in Deutsch DT04-2P connector and swivel mount

Compare	Part number	Equipment		Quantity
	CRC5H.53378	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53378 Quantity: carton box/1		carton box/1

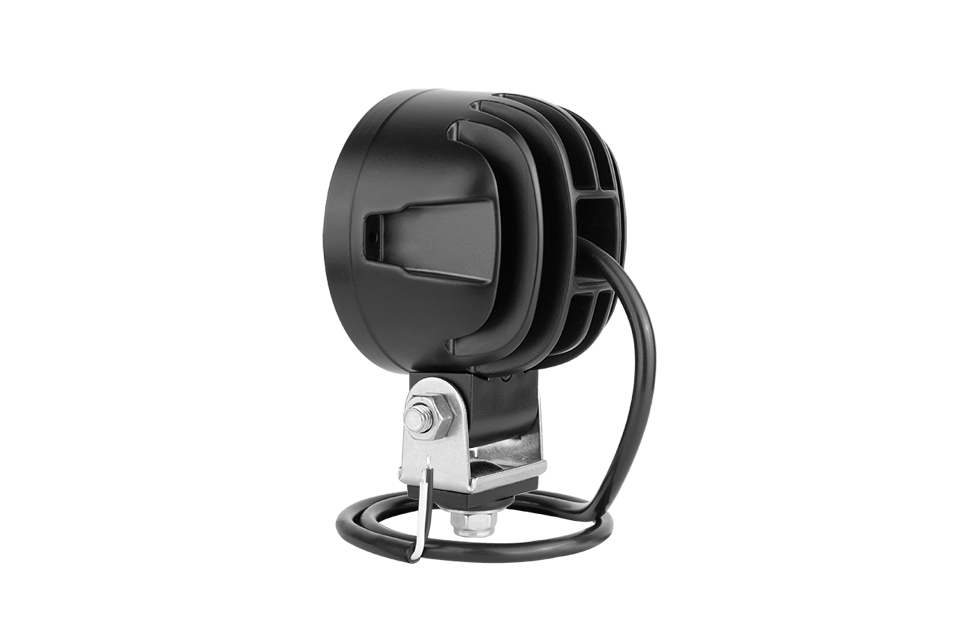

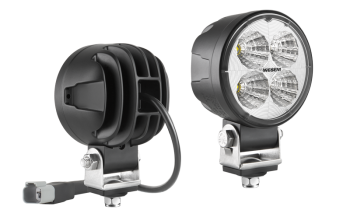

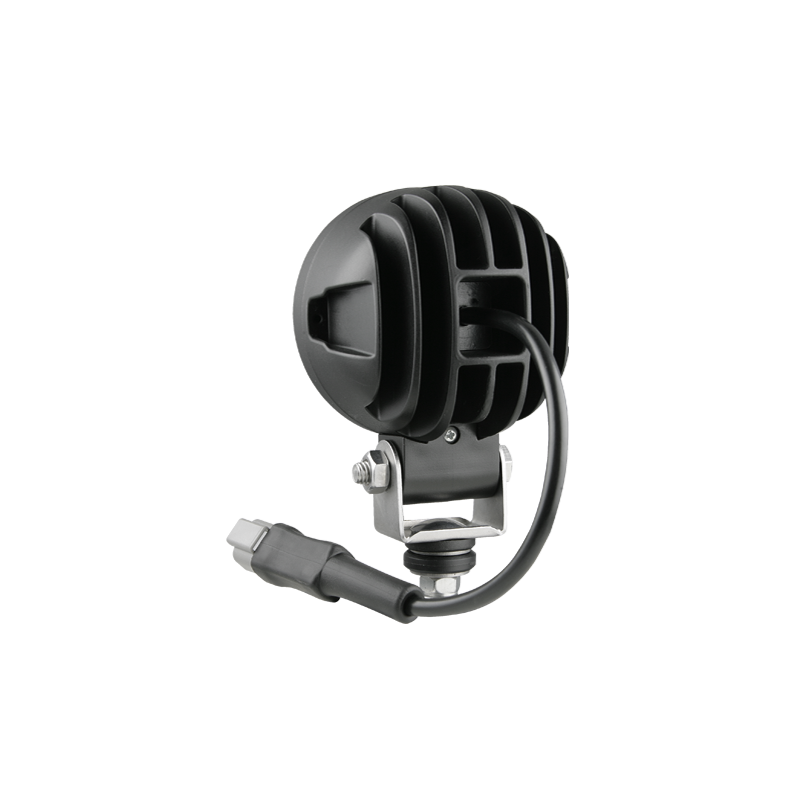

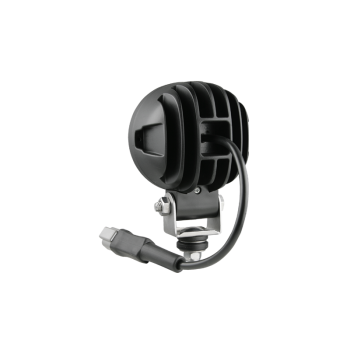

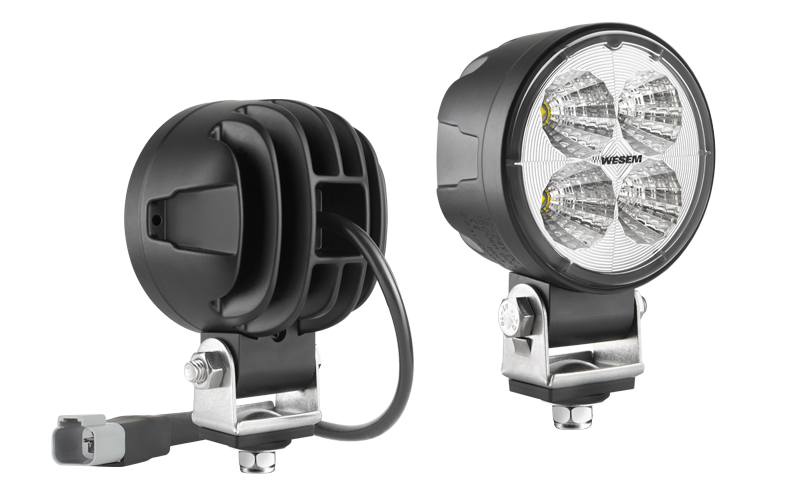

LED work lamp with cable and Deutsch DT04-2P connector

LED work lamp with cable and Deutsch DT04-2P connector

LED work lamp with cable and Deutsch DT04-2P connector

Compare	Part number	Equipment		Quantity
	CRC5B.50002	beam angle: 35°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5B.50002 Quantity: carton box/1		carton box/1
	CRC5D.51602	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5D.51602 Quantity: carton box/1		carton box/1
	CRC5A.49402	beam angle: 35°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5A.49402 Quantity: carton box/1		carton box/1
	CRC5C.51502	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5C.51502 Quantity: carton box/1		carton box/1

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

LED work lamp with built-in AMP SuperSeal connector

Compare	Part number	Equipment		Quantity
	CRC5K.54815	beam angle: 35°, 2000lm - LED module 12V-24V Part number: CRC5K.54815 Quantity: carton box/1		carton box/1
	CRC5H.53315	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5H.53315 Quantity: carton box/1		carton box/1
	CRC5B.50015	beam angle: 35°, 1500lm - LED module 12V-24V Part number: CRC5B.50015 Quantity: carton box/1		carton box/1
	CRC5D.51615	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5D.51615 Quantity: carton box/1		carton box/1
	CRC5A.49415	beam angle: 35°, 1000lm - LED module 12V-24V Part number: CRC5A.49415 Quantity: carton box/1		carton box/1
	CRC5C.51515	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5C.51515 Quantity: carton box/1		carton box/1

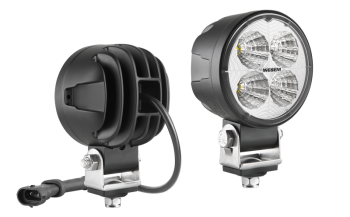

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

LED work lamp with cable and H9-H11 connector

Compare	Part number	Equipment		Quantity
	CRC5K.54803	beam angle: 35°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5K.54803 Quantity: carton box/1		carton box/1
	CRC5H.53303	beam angle: 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5H.53303 Quantity: carton box/1		carton box/1
