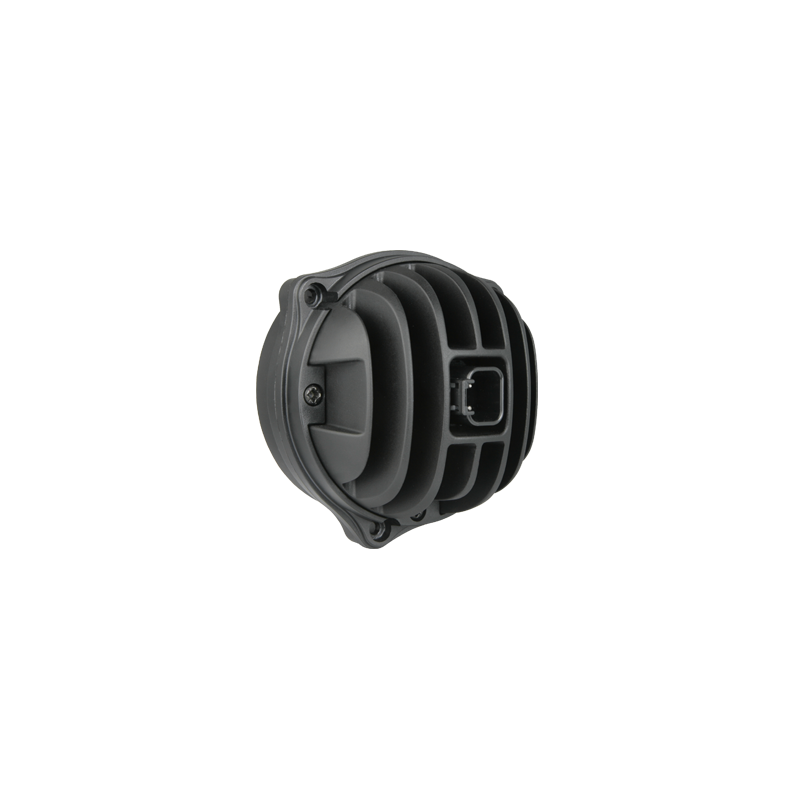

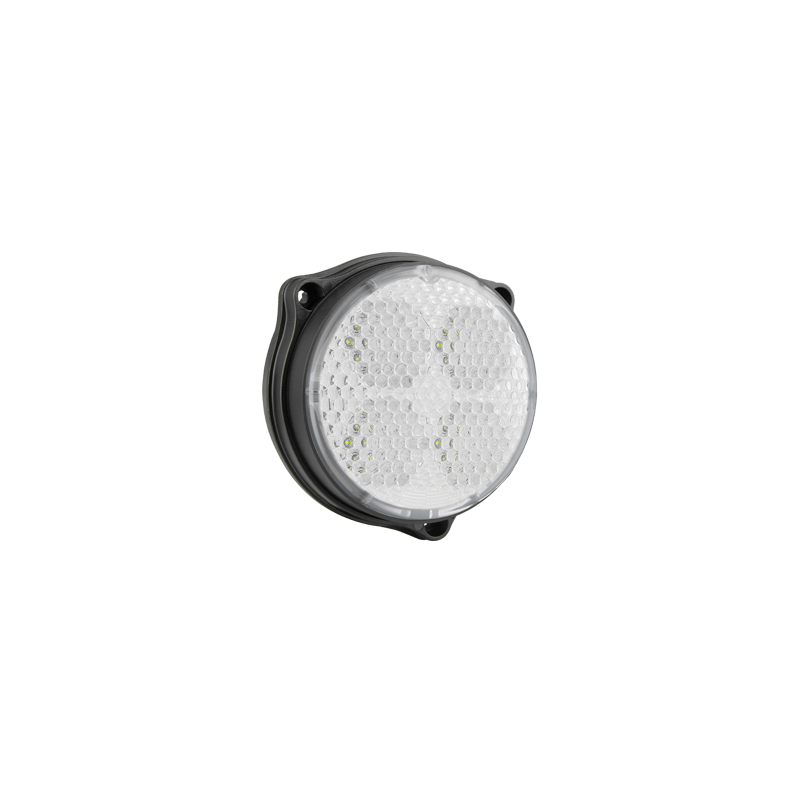

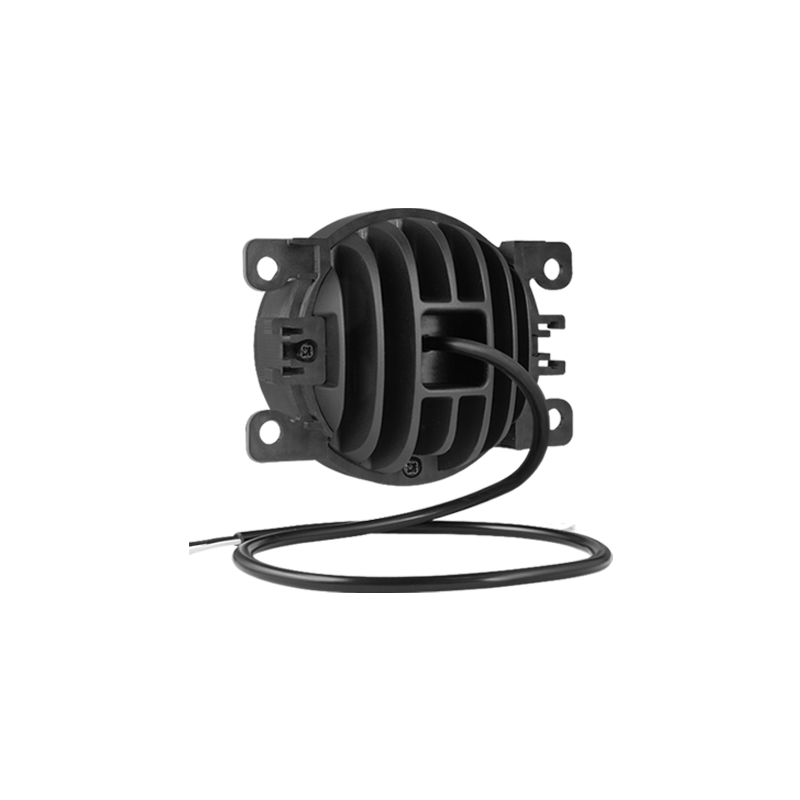

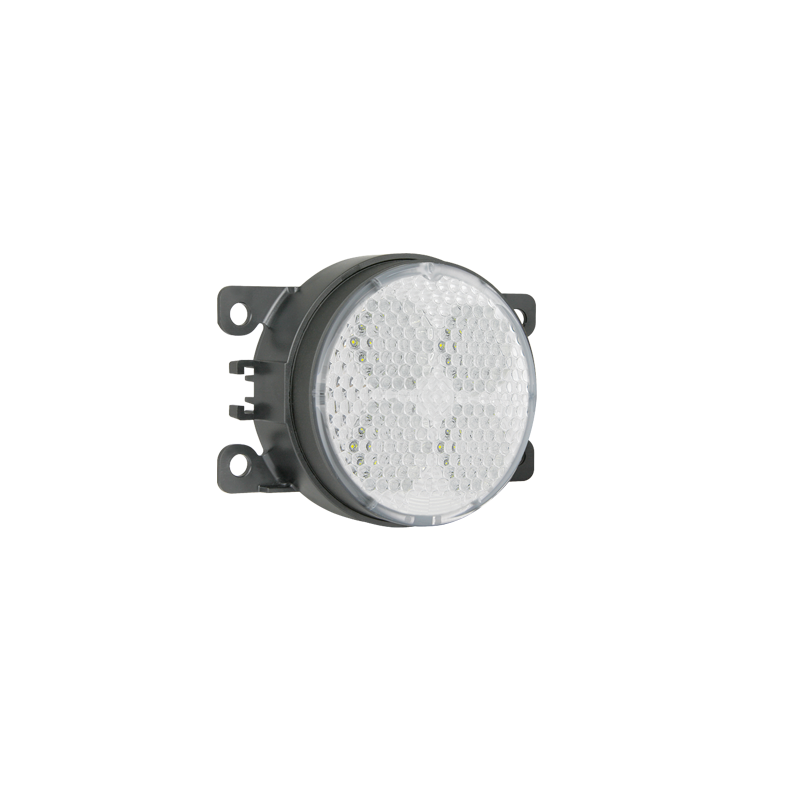

CRC5 built-in LED work lamps

CRC5 built-in LED work lamps

CRC5 built-in LED work lamps

CRC5 built-in LED work lamps

CRC5 built-in LED work lamps

Dimensions	Ø87x72
Light functions	work light
Maximum power	18W, 14.5W, 21W
Light source	4 x LED
Supply voltage	12V-24V DC
Luminous flux	1500 lm, 1000 lm, 2000 lm
Beam angle	58°
Beam type	wide beam
IP rating	IP67, IP69K

Catalogue page

Product versions

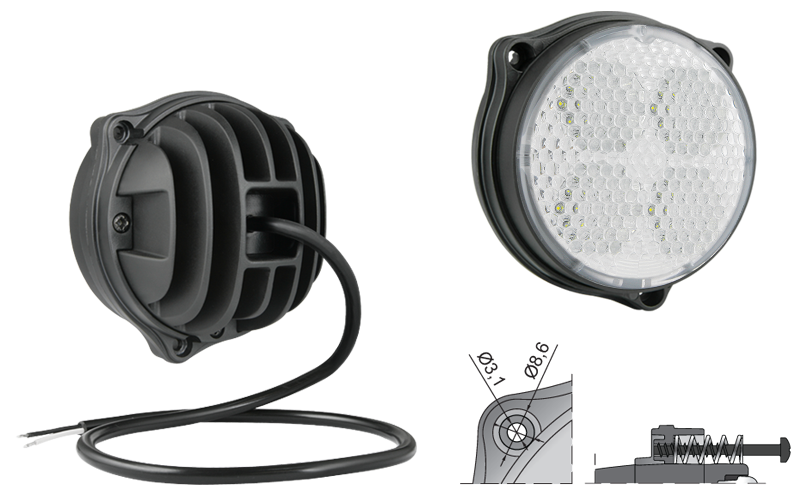

LED work lamp with cable (3 screw version)

LED work lamp with cable (3 screw version)

LED work lamp with cable (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5F.52020	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5F.52020 Quantity: carton box/1		carton box/1
	CRC5E.51920	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5E.51920 Quantity: carton box/1		carton box/1

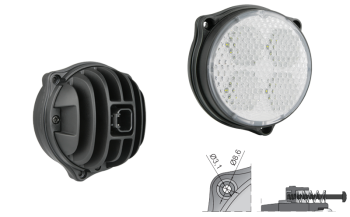

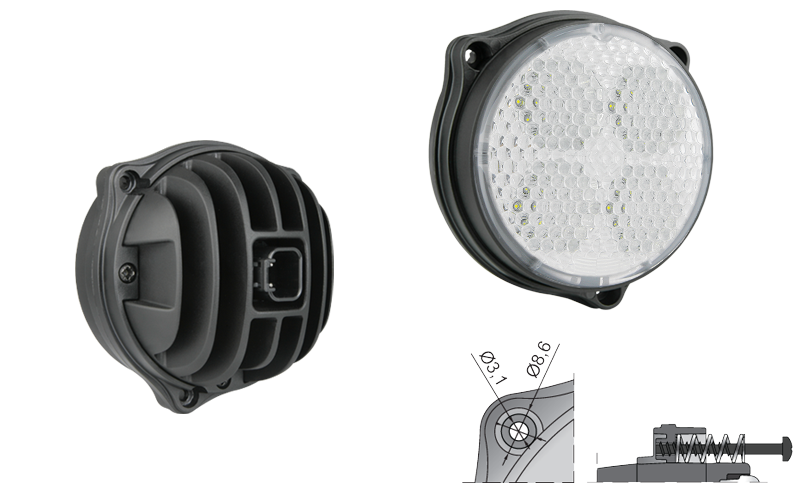

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

LED work lamp with built-in Deutsch DT04-2P connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5F.52023	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5F.52023 Quantity: carton box/1		carton box/1
	CRC5E.51923	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5E.51923 Quantity: carton box/1		carton box/1

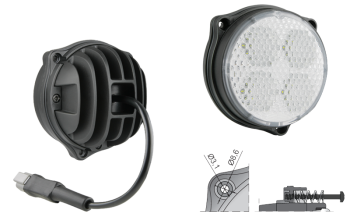

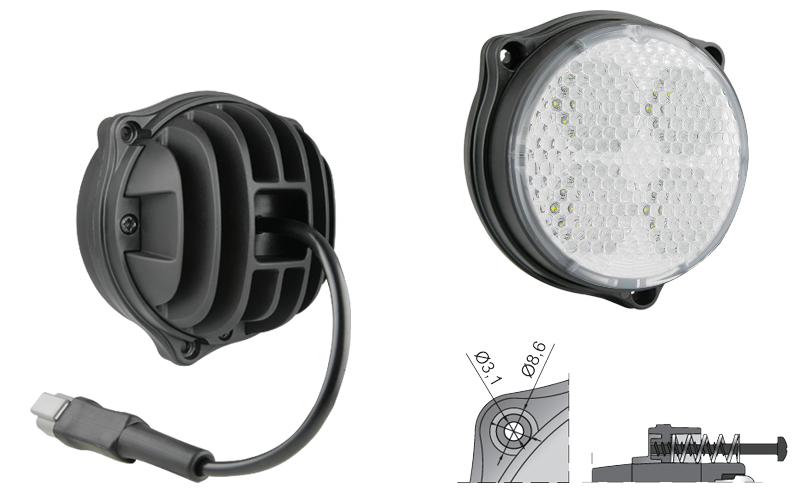

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

LED work lamp with cable and Deutsch DT04-2P connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5F.52025	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5F.52025 Quantity: carton box/1		carton box/1
	CRC5E.51925	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5E.51925 Quantity: carton box/1		carton box/1

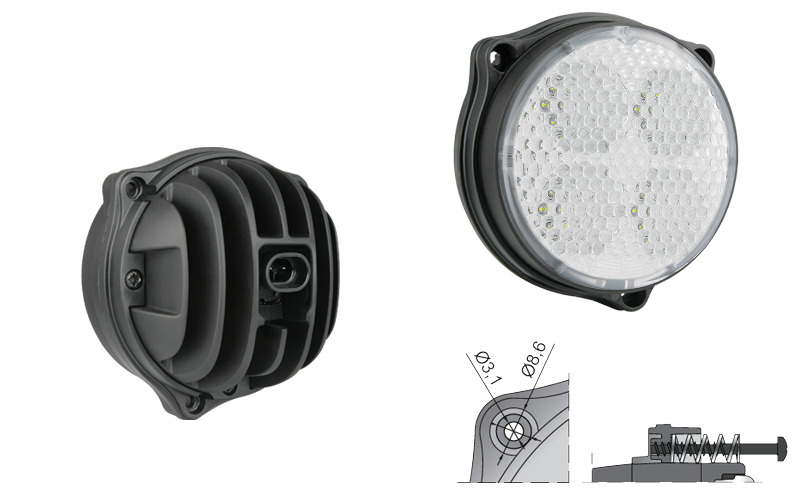

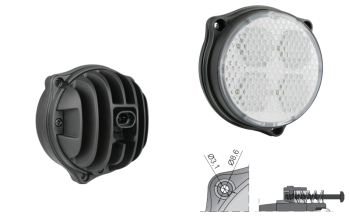

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

LED work lamp with built-in AMP SuperSeal connector (3 screw version)

Compare	Part number	Equipment		Quantity
	CRC5F.52027	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5F.52027 Quantity: carton box/1		carton box/1
	CRC5E.51927	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5E.51927 Quantity: carton box/1		carton box/1

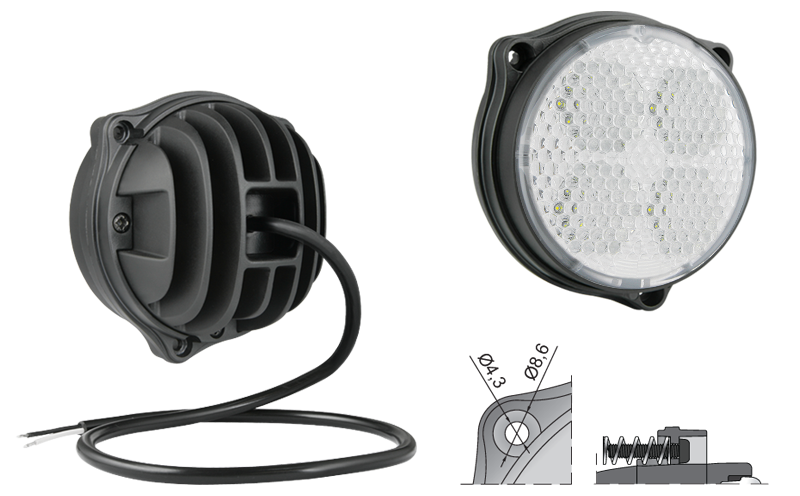

LED work lamp with cable (3 bolt version)

LED work lamp with cable (3 bolt version)

LED work lamp with cable (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5F.52022	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5F.52022 Quantity: carton box/1		carton box/1
	CRC5E.51922	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5E.51922 Quantity: carton box/1		carton box/1

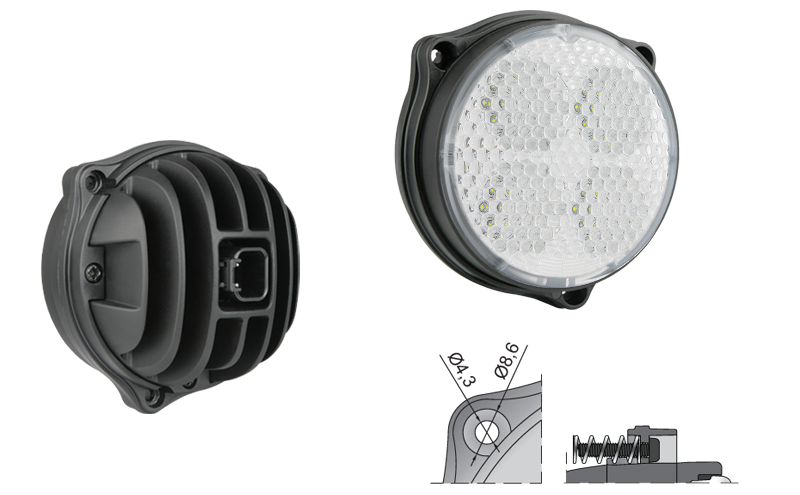

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

LED work lamp with built-in Deutsch DT04-2P connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5F.52024	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5F.52024 Quantity: carton box/1		carton box/1
	CRC5E.51924	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5E.51924 Quantity: carton box/1		carton box/1

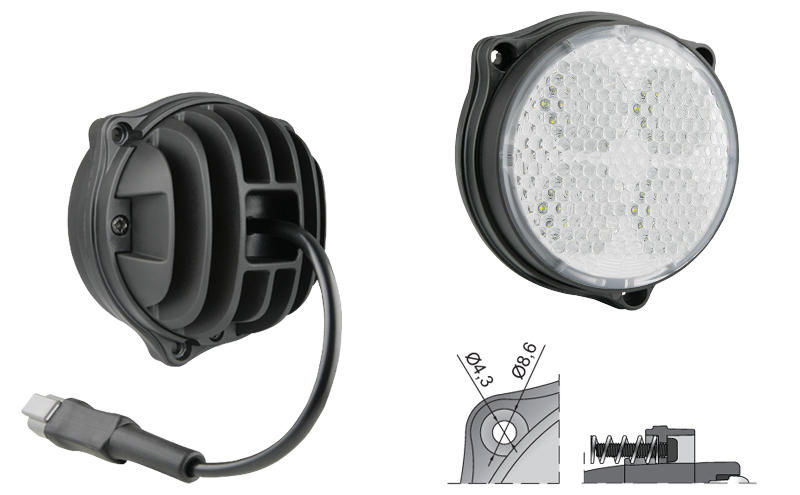

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

LED work lamp with cable and Deutsch DT04-2P connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5F.52026	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,15 m Part number: CRC5F.52026 Quantity: carton box/1		carton box/1
	CRC5E.51926	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,15 m Part number: CRC5E.51926 Quantity: carton box/1		carton box/1

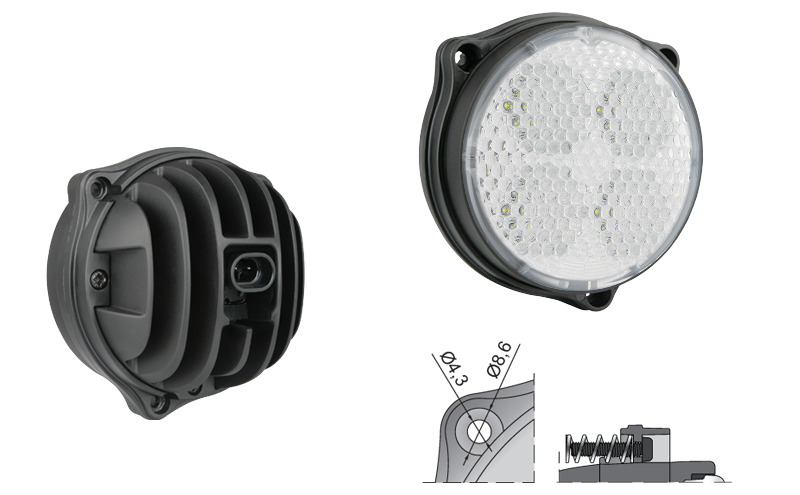

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

LED work lamp with built-in AMP SuperSeal connector (3 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5J.53428	beam angle: 58°, 2000lm - LED module 12V-24V Part number: CRC5J.53428 Quantity: carton box/1		carton box/1
	CRC5F.52028	beam angle: 58°, 1500lm - LED module 12V-24V Part number: CRC5F.52028 Quantity: carton box/1		carton box/1
	CRC5E.51928	beam angle: 58°, 1000lm - LED module 12V-24V Part number: CRC5E.51928 Quantity: carton box/1		carton box/1

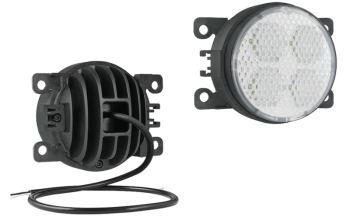

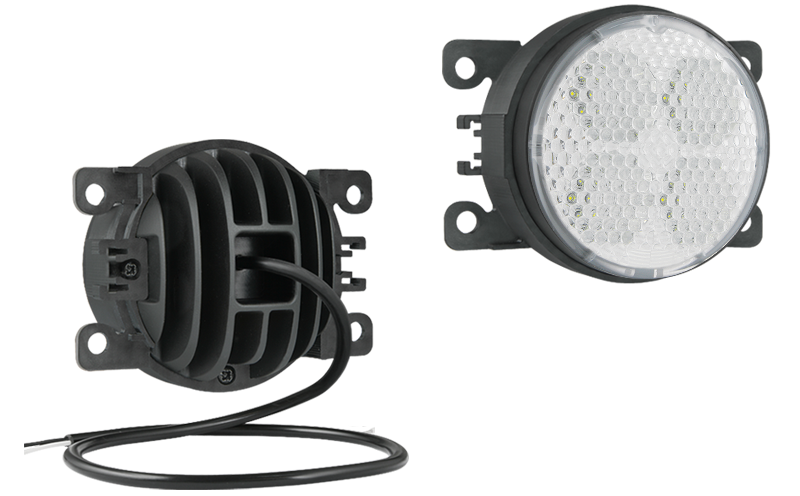

LED work lamp with cable (4 bolt version)

LED work lamp with cable (4 bolt version)

LED work lamp with cable (4 bolt version)

Compare	Part number	Equipment		Quantity
	CRC5J.53421	beam angle: 58°, 2000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5J.53421 Quantity: carton box/1		carton box/1
	CRC5F.52021	beam angle: 58°, 1500lm - LED module 12V-24V, cable 0,5 m Part number: CRC5F.52021 Quantity: carton box/1		carton box/1
	CRC5E.51921	beam angle: 58°, 1000lm - LED module 12V-24V, cable 0,5 m Part number: CRC5E.51921 Quantity: carton box/1		carton box/1
